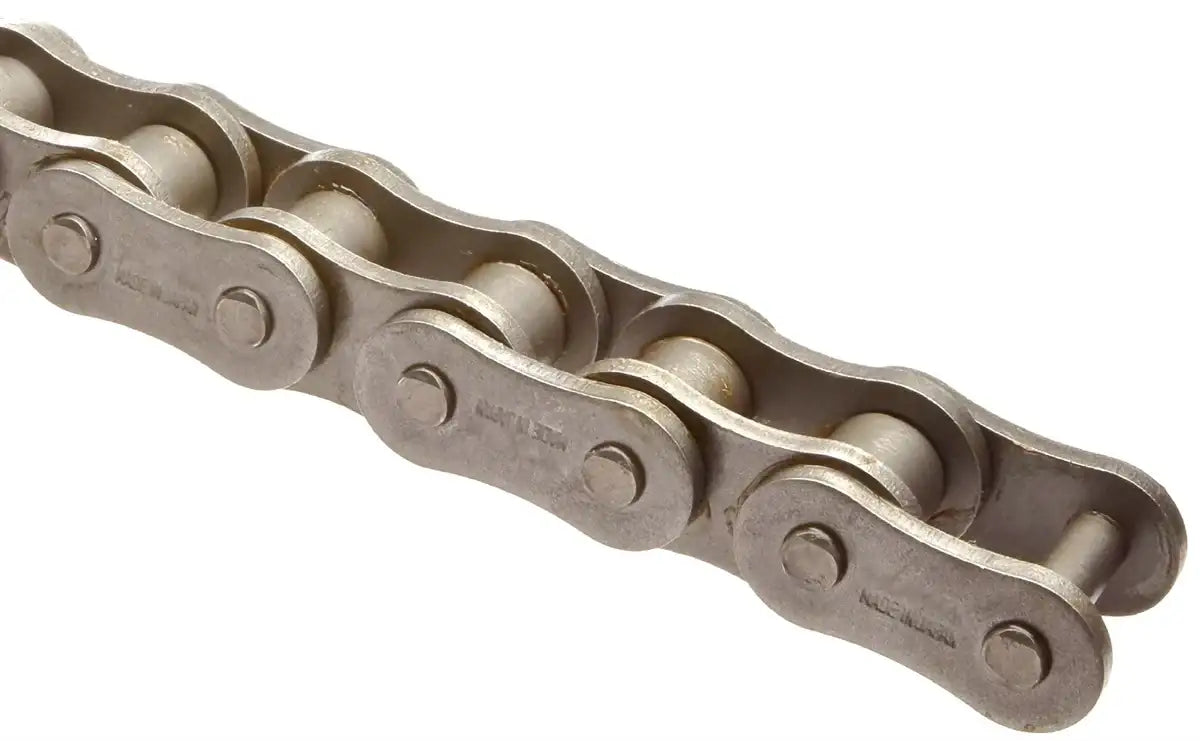

Premium 140HKSR Roller Chain - 10ft Box

Premium 140HKSR Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
Product Code: 140HKSR-ROLLER-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
Premium 140HKSR High Strength Connecting Link / Master Link
Premium 140HKSR High Strength Connecting Link / Master Link
Login
View full details
Description
Specification
#140HKSR roller chain is apart of the Super High Strength HKSR series premium heavy roller chains. This roller chain is manufactured using high-quality precision components to increase the working life, fatigue, and strength of the roller chain while still remaining within the dimensions of standard ANSI heavy roller chain. HKSR roller chains feature enlarged and thickened plates, improved machined parts accuracy and assembly, solid bushings and solid rollers. These features further increase the working life, strength, and efficiency over the HK series chains throughout the entire low to high speed application spectrum. Additionally compared to standard roller chains, HKSR series chains are higher in maximum horsepower rating by around 30% in a medium to low speed application. #140HKSR chain also has a much better performance than other chains in applications where there are high shock loads, frequent starting and stopping, and in relatively high-speed applications such as; power shovels, trenchers, trucks, cranes, mixers, conveyors, elevators, stackers, and more. If you're needing a large quantity of #140HKSR roller chain or need any additional information please contact us and we will be happy to assist you!

Dimensions:
Premium 140HKSR Roller Chain - 10ft Box
  • Chain #: 140HKSR
  • Pitch (P): 1.750"
  • Roller Diameter (D): 1.000"
  • Width Between Plates (W): 1.000"
  • Link Plate Height (H): 1.661"
  • Side Plate Thickness (T): 0.252"
  • Pin Diameter (E): 0.500"
  • Pin Length (L): 2.280"
  • Average Tensile Strength: 57,200 LBS
  • Maximum Recommended Working Load: 13,640 LBS
  • Weight Per Foot: 6.20 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!

Feature

  • Super High Strength
  • Premium Quality Roller Chain
  • Meets & Exceeds ANSI Standards
  • Has Solid Bushings & Solid Rollers
  • Manufactured Using Precession Components
  • 30% Average Increase In Horsepower Rating
  • Enlarged Side-plates
  • Fully Heat-Treated Pins
  • Shot-Peened Components
  • Has Thicker Side-Plates
Featured image
  • Chain #: 140HKSR
  • Pitch (P): 1.750"
  • Roller Diameter (D): 1.000"
  • Width Between Plates (W): 1.000"
  • Link Plate Height (H): 1.661"
  • Side Plate Thickness (T): 0.252"
  • Pin Diameter (E): 0.500"
  • Pin Length (L): 2.280"
  • Average Tensile Strength: 57,200 LBS
  • Maximum Recommended Working Load: 13,640 LBS
  • Weight Per Foot: 6.20 LBS
