#160 SK-1 Attachment

#160 SK-1 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: 160-SK-1-ATTACHMENT
Shipping calculated at checkout.
Other Customers Viewed
160 Roller Chain 10ft Box
160 Roller Chain 10ft Box
Login
General Duty Plus #160 Roller Chain - 10ft Box
General Duty Plus #160 Roller Chain - 10ft Box
$506.99
Login
Premium #160 Roller Chain - 10ft Box | Premier Series Chain
Premium #160 Roller Chain - 10ft Box | Premier Series Chain
$859.99
Login
View full details
Description
Specification

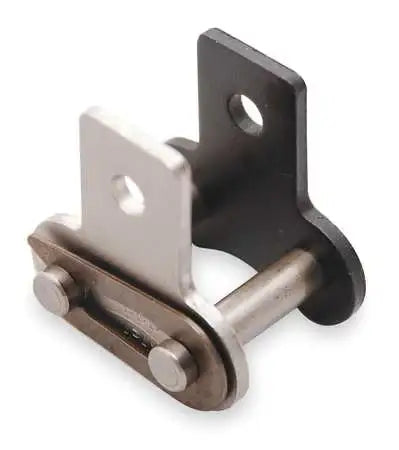

#160 SK-1 attachment is a two side, one hole straight attachment that fully meets ANSI specifications. We have a full line of premium attachments as well as #160 roller chain in stock. This attachment is manufactured using heat-treated components to increase strength, durability, and performance. Besides attachments and chain, we also have #160 sprockets, motors, reducers, bearings, sensors, and more! To get a quote on #160 SK-1 attachments please contact us and we will be happy to assist you.

Dimensions:

  • Attachment size: #160 SK-1
  • Pitch (P): 2.000"
  • Width Between Roller Links (W): 1.250"
  • Roller Diameter (R): 1.125"
  • Pin Diameter (D): 0.562"
  • Overall Chain Width: 2.508"
  • Overall Connecting Link Width: 2.705"
  • Link Plate Height (H): 1.898"
  • Link Plate Thickness (T): 0.250"
  • Attachment Dimension (C1): 2.000"
  • Attachment Dimension (N): 1.500"
  • Attachment Dimension (O): 0.516"
  • Attachment Dimension (XS): 2.750"
  • Additional Weight Per Attachment: 0.428 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Quality Attachment
  • Manufactured to ANSI Standards
  • Heat-Treated Components
Featured image
  • Attachment size: #160 SK-1
  • Pitch (P): 2.000"
  • Width Between Roller Links (W): 1.250"
  • Roller Diameter (R): 1.125"
  • Pin Diameter (D): 0.562"
  • Overall Chain Width: 2.508"
  • Overall Connecting Link Width: 2.705"
  • Link Plate Height (H): 1.898"
  • Link Plate Thickness (T): 0.250"
  • Attachment Dimension (C1): 2.000"
  • Attachment Dimension (N): 1.500"
  • Attachment Dimension (O): 0.516"
  • Attachment Dimension (XS): 2.750"
  • Additional Weight Per Attachment: 0.428 LBS
