25-4 Chain - 10ft Box

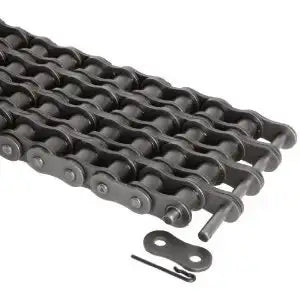

25-4 Roller chain



Note: Se Habla Espanol


Product Code: 25-4-ROLLER-CHAIN
Get a Quote
Call to Order 407-347-3519

Description

This 25-4 chain is premium quality, high strength, and fully meets all ANSI standards. What sets this roller chain apart from others is the fully heat-treated and shot peened components. This drastically increases strength, performance, and overall durability. 25-4 quad strand roller chain typically is supplied as 10ft boxes, but other length are available upon request.


25-4 roller chain dimensions


  • Pitch: 0.250"
  • Roller Link Width (W): 0.125"
  • Bushing Diameter (D): 0.130"
  • Pin Diameter (d): 0.091"
  • Pin Length (E): 1.071"
  • Pin Length (F): 1.094"
  • Dimension (e): 0.154"
  • Dimension (L): 0.185"
  • Transvers Pitch (C): 0.252"
  • Plate Thickness (T): 0.028"
  • Plate Height (H): 0.232"
  • Dimension (h): 0.205"
  • Average Tensile Strength: 3,960 LBS
  • Maximum Allowable Load: 528 LBS
  • Chain Weight: 0.35 LBS/ FT

Besides 25-4 quad strand roller chain we also offer a full line of premium sprockets, bearings, motors, reducers, and more! For additional information or to get a formal quote please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • Premium Quality
    • High Strength
    • Quad Strand Roller Chain
    • Fully Meets ANSI Standards
