2AK134H Pulley

2AK134H Pulley
2AK134H Pulley



Our Price: $105.99
Note: Fits Belt Types: A, 2A, 3L 4L, AX
Note: Made From Extreme Duty Grade-35 Cast Iron
Note: Phosphated and Painted For Corrosion Resistance
Note: Dynamically Balanced For Smooth Operation/ Extended Equipment Life

Product Code: 2AK134H-PULLEY
Qty:

Description Technical Specs

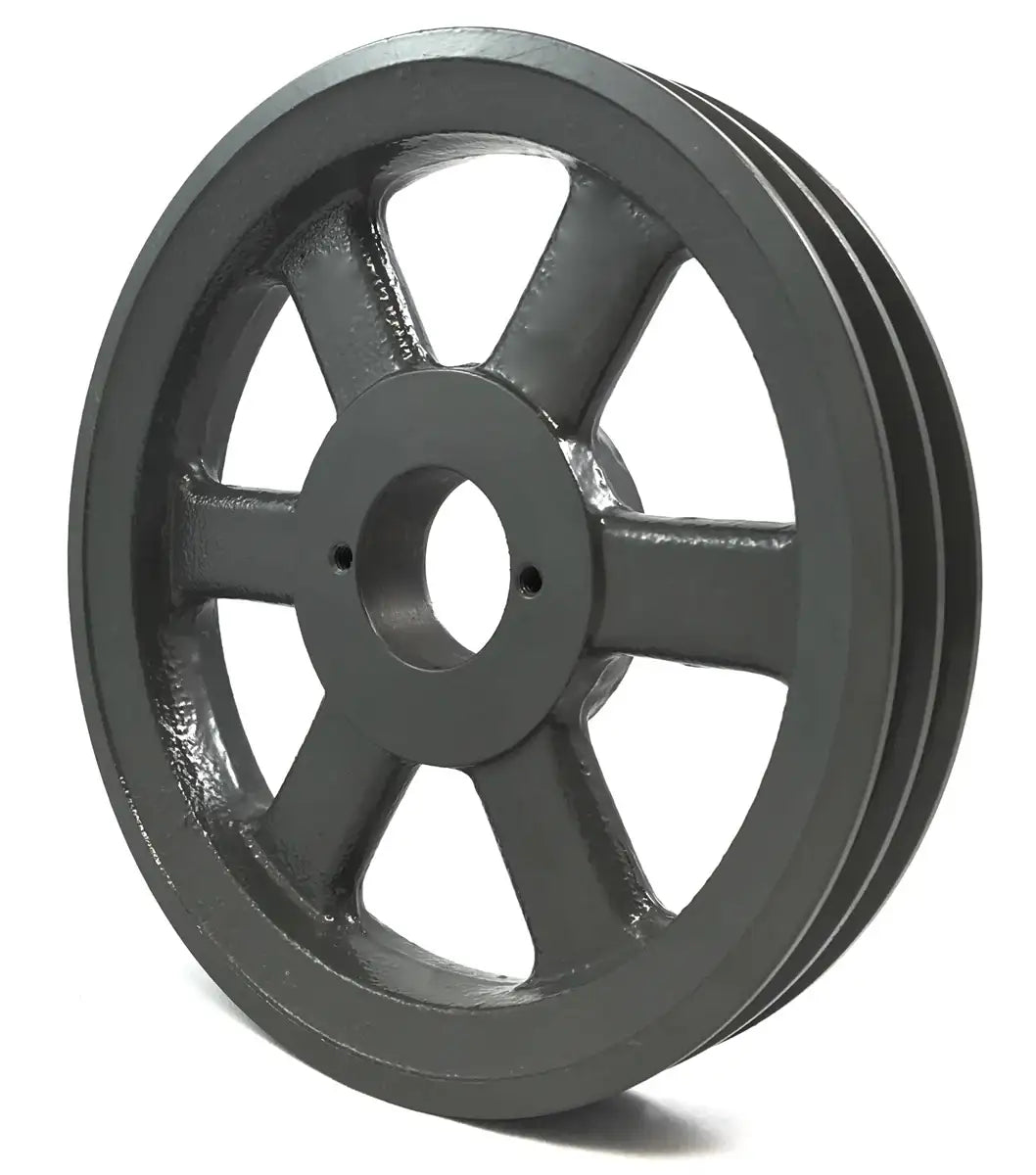

This 2AK134H Pulley uses an H-Series Bushing, is directly interchangeable with other manufacturers, is 13.25" in diameter, and is manufactured in accordance with ARPM Standard IP20 for safe operation. Because it is a double pulley you can use a double banded A-Series v-belt, two single A-Series v-belts, or two single 3L-Series v-belts. What separates this double 2AK134H pulley from the others is that it is made using a high grade-35 cast iron, is phosphate coated, painted, and balanced at the factory. Using the grade 35 cast iron offers a higher tensile strength and is more wear resistant than the more commonly used grade 25. While the phosphate coated and then painted finish adds corrosion resistance to the 2AK134H pulley. Then, because this pulley is dynamically balanced it runs smoother which gives bearings and other components of the equipment a longer working life. Additionally, we stock a full line of premium A-Series V-Belts, H-bushings, shafting, key-stock, motors, gearboxes, bearings, and much more!

2AK134H Pulley Dimensions


  • Pulley Size: 2AK134H
  • Outside Diameter (O.D.): 13.25"
  • Pitch Diameter For 4L/A Belts (P.D.): 13.00"
  • Pitch Diameter For 3L Belts (P.D.): 12.66"
  • Pulley Type: 3
  • Width (O.L.): 1-1/2"
  • Dimension (F): 1-3/8"
  • Dimension (L): 1-1/4"
  • Dimension (P): 1/16"
  • Dimension (C): 0"
  • Dimension (X): 7/8"
  • Dimension (G): 7/16"
  • Dimension (E): 3/16"
  • Weight: 11.4 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information on a 2AK134H Pulley, or to get pricing and availability on the accompanying belts/ H-bushings, please contact us and we will be happy to assist you.



About Us
Features
    • Premium Quality Double V-Belt Pulley
    • Manufactured In Accordance With ARPM Standard IP20
    • Corrosion Resistance
    • High-Performance
    • Extremely Durable
