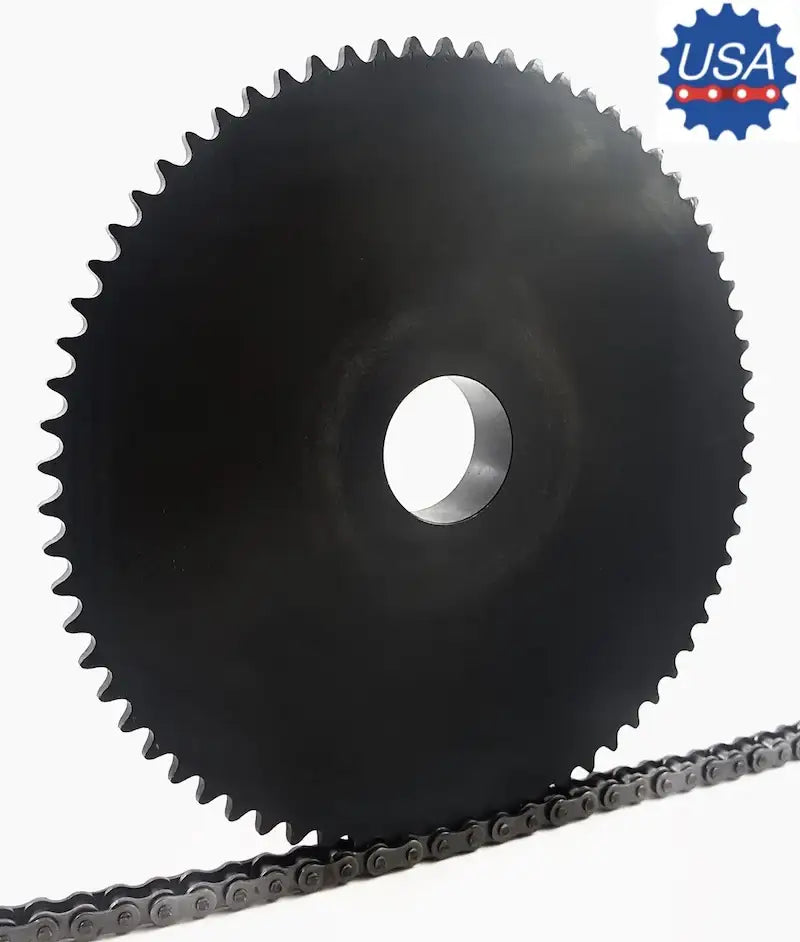

35H70 Sprocket (Taper Bushed)

35H70 Sprocket Taper Bushed 35H70 Sprocket
35H70 Sprocket



Our Price: $149.99
Note: Contact Us For Large Quantity Request


Product Code: 35H70-SPROCKET
Qty:

Description Technical Specs

This 35H70 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a H bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #35 roller chain and sprocket which prevents premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 35H70 sprockets are bored to accept a H size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices.For more information or large inquiry request please contact us and we will be happy to assist you.

35H70 Sprocket Dimensions:


  • Sprocket Size: 35H19
  • Bushing Type: H
  • Outside Diameter: 2.470"
  • Pitch Diameter: 2.278"
  • Dimension (OL): 1-1/2"
  • Dimension (L): 1-1/4"
  • Dimension (C): 1/16"
  • Dimension (H): 2-1/2"
  • Dimension (P): 1-5/32"
  • Dimension (T): 0.168"
  • Weight With Bushing: 1.3 LBS
  • Weight Of Sprocket Only: 0.5 LBS

Phone: (407) 347-3519
Email:
sales@usarollerchain.com


About Us
Features
    • Manufactured Out Of High-Quality Steel
    • Great Performance and Durability
    • Black Oxide Coated
    • Fully Meets ANSI Standards
