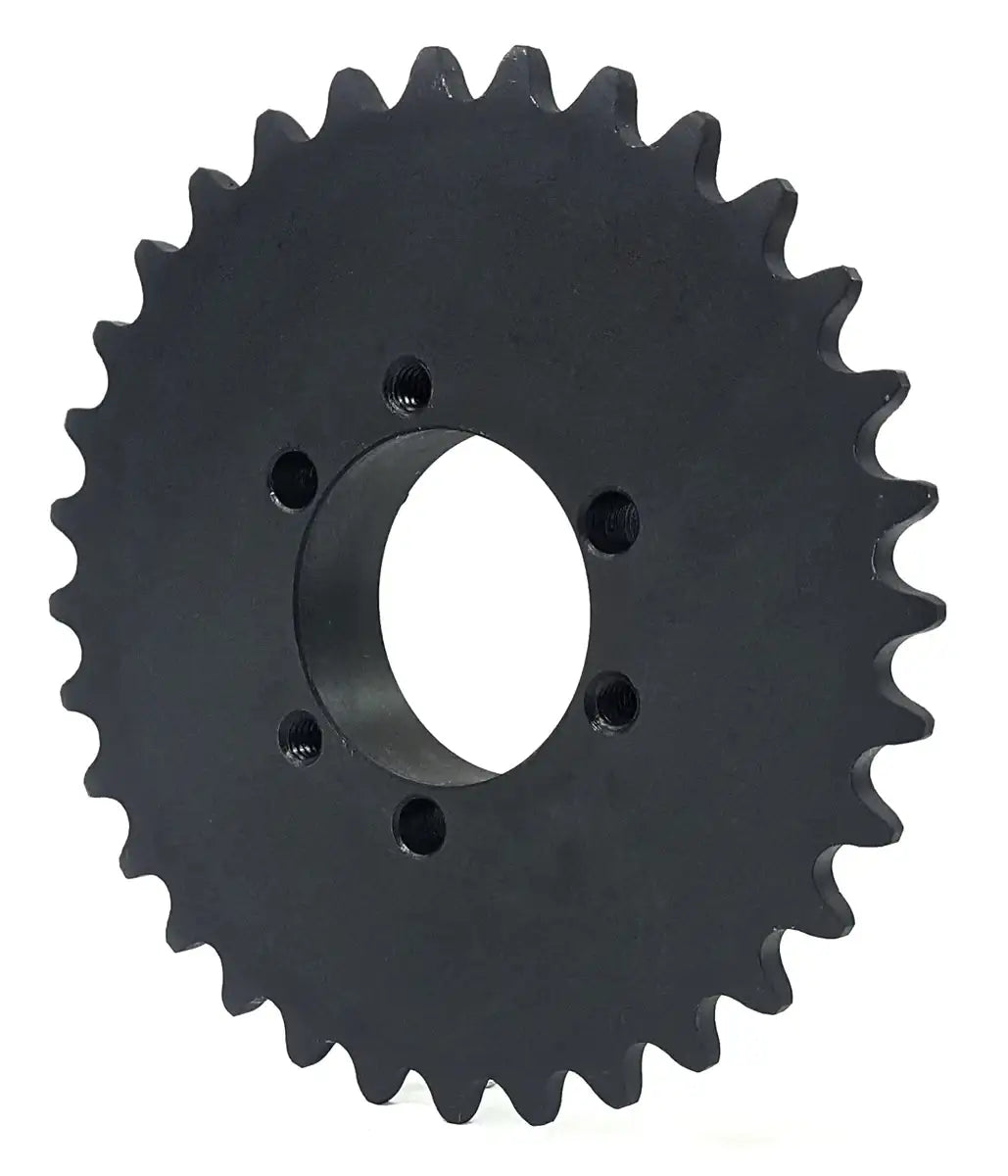

35JA30 Sprocket (QD Type)
Note:
Contact Us For Large Quantity Request
$29.99
SKU: 35JA30-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
35JA30 Sprocket (QD Type) Description/Features
35JA30 Sprocket (QD Type) Specifications
This 35JA30 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a JA bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #35 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 35JA30 sprockets are bored to accept a JA size QD bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices.For more information or large inquiry request please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
35JA30 Sprocket Dimensions:
- Sprocket Size: 35JA30
- Bushing Type: JA
- Outside Diameter: 3.790"
- Pitch Diameter: 3.588"
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 53/64"
- Dimension (G): 29/64"
- Dimension (X): 5/8"
- Dimension (T): 0.168"
- Sprocket Weight: 0.56 LBS
- Weight With Bushing: 1.46 LBS
Email:
- Sprocket Size: 35JA30
- Bushing Type: JA
- Outside Diameter: 3.790"
- Pitch Diameter: 3.588"
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 53/64"
- Dimension (G): 29/64"
- Dimension (X): 5/8"
- Dimension (T): 0.168"
- Sprocket Weight: 0.56 LBS
- Weight With Bushing: 1.46 LBS
