40B15 Sprocket With Stock Bore
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

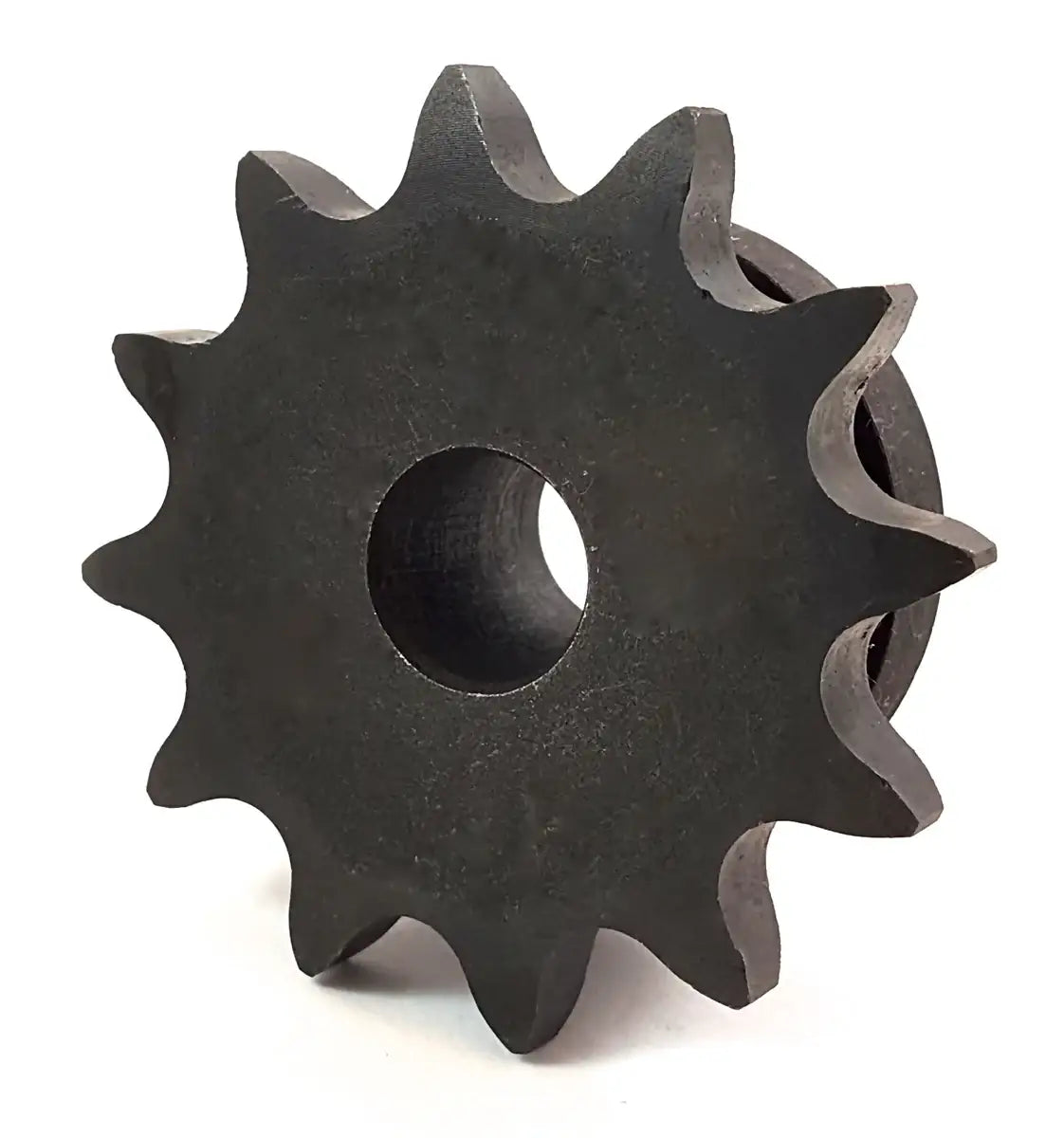

You need a black-oxide coated sprocket that meets all ANSI standards today. Find your solution with this 40B15 sprocket. This three-pack comes with hardened teeth on each component, which is an important quality for a mechanical system. With every turn, a #40 roller chain will remain true to this durable sprocket's position. High-quality materials translate into minimal wear over the years. Breakage isn't a concern, as rusting is practically impossible on these parts.
A unique feature of this precision sprocket is its bore hole. It comes standard with a 1/2-inch ID hole, but USA Roller Chain & Sprockets offers more for your dollar. We specialize in bored-to-size sprockets, which means that custom parts are available for each order. Simply give us a reasonable lead time before your deadline. Enjoy a perfect fit with no keyways or set screws to challenge an assembly. USA Roller Chain gives you versatility in sprocket parts.
40B15 Sprocket Dimensions:
- Sprocket Size: 40B15
- Outside Diameter: 2.650"
- Hub Type: B
- Stock Bore: 1/2"
- Recommended Max Bore: "
- Hub Diameter: 1-13/16"
- Length Through Bore: 7/8"
- Weight: 0.70 LBS
