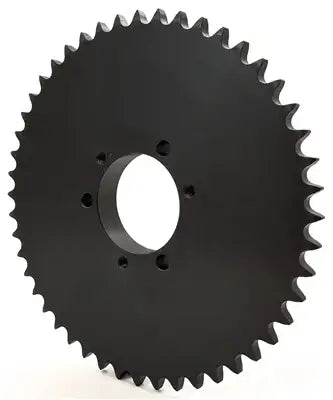

41SDS48 Sprocket (QD Type)
41SDS48 Sprocket (QD Type)
Note:
Custom Cut to Length Chain Also Available
Regular price
$78.00
$78.00
Unit price
per
In Stock
On Sale
Sold out
Product Code: 41SDS48-SPROCKET
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
This 41SDS48 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a SDS bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #41 roller chain and sprocket which prevents premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 41SDS48 sprockets are bored to accept a SDS size QD bushing which, we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom sprocket we have the capabilities on providing them within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
41SDS48 Sprocket Dimensions
- Sprocket Size: 41SDS48
- Tooth Count: 48
- Bushing Size: SDS
- Outside Diameter: 7.930"
- Pitch Diameter: 7.645"
- Hub Type: B
- Dimension (L1): 1-1/2"
- Dimension (L2): 1-1/2"
- Dimension (C): 3-3/16"
- Dimension (Y): 1-3/32"
- Dimension (G): 17/32"
- Dimension (X): 3/4"
- Dimension (T): 0.227"
- Sprocket Weight: 3.36 LBS
- Weight With Hub: 4.36 LBS
Email:
Feature
- Premium Quality Sprocket
- Fully Meets ANSI Standards
- QD-Type Configuration
- Manufactured Out Of High-Quality Steel
- Interchangeable With Other Brands
- Extremely Durable
- Sprocket Size: 41SDS48
- Tooth Count: 48
- Bushing Size: SDS
- Outside Diameter: 7.930"
- Pitch Diameter: 7.645"
- Hub Type: B
- Dimension (L1): 1-1/2"
- Dimension (L2): 1-1/2"
- Dimension (C): 3-3/16"
- Dimension (Y): 1-3/32"
- Dimension (G): 17/32"
- Dimension (X): 3/4"
- Dimension (T): 0.227"
- Sprocket Weight: 3.36 LBS
- Weight With Hub: 4.36 LBS
