Premium 50 HK Roller Chain - 10ft Box
Premium 50 HK Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Product Code: 50-HK-ROLLER-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

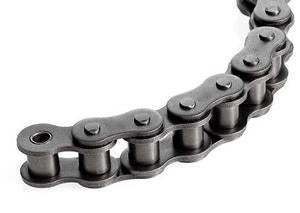

#50HK roller chain is apart of the Super High Strength HK heavy series premium roller chains. This roller chain is manufactured using high-quality precision components to increase the working life, fatigue, and strength of the roller chain while still remaining within the dimensions of standard ANSI heavy roller chain. HK series roller chains will run on standard #50 roller chain sprockets and are recommended for slow to moderate speed, heavy load drive applications. Something else that sets this chain apart is that it features solid bushings, solid rollers, and slightly thicker heavy-duty side-plates. This greatly increased the performance, working life, and strength of the roller chain and decreases the energy consumption by creating less friction. If you're needing a large quantity of #50HK roller chain or need any additional information please contact us and we will be happy to assist you!
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer "Here"!
Dimensions:
- Chain #: 50HK
- Pitch (P): 0.625"
- Roller Diameter (D): 0.400"
- Width Between Plates (W): 0.375"
- Link Plate Height (H): 0.591"
- Side Plate Thickness (T): 0.094"
- Pin Diameter (E): 0.200"
- Pin Length (L): 0.853"
- Average Tensile Strength: 8,140 LBS
- Maximum Recommended Working Load: 1,936 LBS
- Weight Per Foot: 0.75 LBS
Email:
See What All We Offer "Here"!
Feature
- Super High Strength
- Premium Quality Roller Chain
- Meets & Exceeds ANSI Standards
- Has Solid Bushings & Solid Rollers
- Manufactured Using Precession Components
- Has Thicker Side-Plates
- Chain #: 50HK
- Pitch (P): 0.625"
- Roller Diameter (D): 0.400"
- Width Between Plates (W): 0.375"
- Link Plate Height (H): 0.591"
- Side Plate Thickness (T): 0.094"
- Pin Diameter (E): 0.200"
- Pin Length (L): 0.853"
- Average Tensile Strength: 8,140 LBS
- Maximum Recommended Working Load: 1,936 LBS
- Weight Per Foot: 0.75 LBS
