50 Stainless Steel Roller Chain | ANSI 50SS Chain

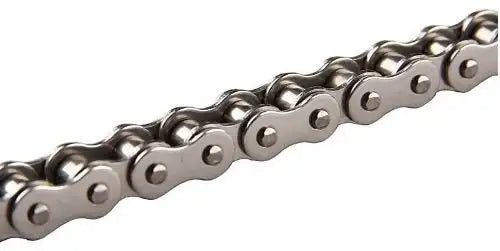

50 Stainless Steel Roller Chain





Product Code: ECO-50SS-10FT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

ANSI 50 Stainless Steel Roller Chain is an anti-corrosive and extremely versatile 5/8" pitch 304-Grade 50SS chain. What sets our stainless steel roller chain apart from others isn't just a "tensile strength/ breaking load" but the quality of stainless steel utilized within the chain, precision manufacturing, and extensive processes done at the plant-level to produce a stainless steel chain at an economical price point with great overall performance. What makes a stainless steel roller chain so versatile isn't just the anti-corrosive aspect, but the ability to operate in a broader spectrum of temperatures and application types. Besides a 10ft box, we also supply this chain in a 50ft reel or 100ft reel.
304 Stainless Steel Composition:
Carbon - 0.080%
Manganese - 2.000%
Phosphorus - 0.045%
Sulfur - 0.030%
Silicon - 0.750%
Chromium -18.000% - 20.000%
Nickel - 8.000% - 10.500%
Aluminum - 0.100%
Chain Temperature Range: -200° to + 400°

50SS Roller Chain Dimensions


  • Size: 50SS
  • Pitch (P): 0.625"
  • Roller Diameter (D1): 0.400"
  • Width Between Inner Plates (B1): 0.375"
  • Pin Diameter (D2): 0.208"
  • Pin Length (LR): 0.86"
  • Pin Length (LC): 1.01"
  • Inner Plate Height (H2): 0.59"
  • Plate Thickness (T): 0.080"
  • Tensile Strength: 3,779 LBS
  • Weight: 0.7 LBS/ FT
Download The 50SS Chain Data Page
Additional Upgrades or Options:
Because out 50SS chain is manufactured under the American National Standards Institute (ANSI) B29.1 dimensional specifications it runs on standard sprockets and directly interchanges with other ANSI chains. The below charts show our standard 50 stainless steel roller chain sprockets.

50 Stainless Steel Sprockets

B-Hub 50SS Sprockets:

Size
Tooth Count
Outside Diameter
Type
Stock Bore
Maximum Recommended Bore
Hub Diameter
Length Thru Bore
Weight (LBS)
50B8SS 8 1.884" B 5/8" 5/8" 1-1/8" 1" 0.25
50B9SS 9 2.093" B 5/8" 3/4" 1-3/8" 1" 0.36
50B10SS 10 2.300" B 5/8" 7/8" 1-9/16" 1" 0.50
50B11SS 11 2.500" B 5/8" 1" 1-3/4" 1" 0.60
50B12SS 12 2.710" B 5/8" 1-1/4" 1-61/64" 1" 0.70
50B13SS 13 2.910" B 5/8" 1-5/16" 1-7/8" 1" 0.80
50B14SS 14 3.110" B 5/8" 1-7/16" 2-1/8" 1" 1.00
50B15SS 15 3.320" B 5/8" 1-1/2" 2-3/8" 1" 1.30
50B16SS 16 3.520" B 5/8" 1-3/4" 2-1/4" 1" 1.50
50B17SS 17 3.720" B 5/8" 1-7/8" 2-11/16" 1" 1.80
50B18SS 18 3.920" B 5/8" 1-7/8" 2-7/8" 1" 2.00
50B19SS 19 4.120" B 5/8" 1-3/4" 2-1/2" 1" 2.23
50B20SS 20 4.320" B 3/4" 1-3/4" 3" 1" 2.30
50B21SS 21 4.520" B 3/4" 2" 3" 1" 2.42
50B22SS 22 4.720" B 3/4" 2" 3" 1" 2.54
50B23SS 23 4.920" B 3/4" 2" 3" 1" 2.67
50B24SS 24 5.120" B 3/4" 2" 3" 1-1/4" 3.38
50B25SS 25 5.320" B 3/4" 2" 3" 1-1/4" 3.42
50B26SS 26 5.520" B 3/4" 2" 3" 1-1/4" 3.57
50B28SS 28 5.920" B 3/4" 2" 3" 1-1/4" 3.88
50B30SS 30 6.320" B 3/4" 2-1/4" 3-1/4" 1-1/4" 4.54
50B32SS 32 6.721" B 3/4" 2-1/4" 3-1/4" 1-1/4" 4.96
50B35SS 35 7.320" B 3/4" 2-1/4" 3-1/4" 1-1/4" 5.44
50B36SS 36 7.519" B 3/4" 2-1/4" 3-1/4" 1-1/4" 5.64
50B40SS 40 8.320" B 3/4" 2-1/4" 3-1/4" 1-1/4" 6.50
50B45SS 45 9.310" B 3/4" 2-1/2" 3-3/4" 1-1/4" 8.50
50B48SS 48 9.911" B 1" 2-1/2" 3-3/4" 1-1/4" 9.28
50B54SS 54 11.106" B 1" 2-1/2" 3-3/4" 1-1/4" 11.00
50B60SS 60 12.300" B 1" 2-1/2" 3-3/4" 1-1/4" 14.00
A-Plate 50SS Sprockets:

Size
Tooth Count
Outside Diameter
Weight (LBS)
50A13SS 13 2.910" 0.42
50A14SS 14 3.110" 0.50
50A15SS 15 3.320" 0.54
50A16SS 16 3.520" 0.68
50A17SS 17 3.720" 0.76
50A18SS 18 3.920" 0.86
50A19SS 19 4.120" 0.94
50A20SS 20 4.320" 1.06
50A21SS 21 4.520" 1.40
50A22SS 22 4.720" 1.60
50A23SS 23 4.920" 1.70
50A24SS 24 5.120" 1.80
50A25SS 25 5.320" 1.90
50A26SS 26 5.520" 1.70
50A28SS 28 5.920" 2.50
50A30SS 30 6.320" 2.70
50A32SS 32 6.721" 2.72
50A35SS 35 7.320" 3.70
50A36SS 36 7.519" 3.82
50A40SS 40 8.320" 4.70
50A45SS 45 9.310" 6.00
50A46SS 46 9.911" 6.58
50A54SS 54 11.106" 8.30
50A60SS 60 12.300" 10.80
