520-Series Sprockets
520 series engineer class sprocket are used for a wide verity of chain sizes. These sizes include A520,
520RX, SS520, and IS2625. These sprockets are typically supplied as cast material but we can also supply them as steel for longer operation. The below chart show the standard tooth counts as well as dimensions for each size. To get a quote on the sprocket or chain please contact us or fill out the below request form and we will be happy to assist you.

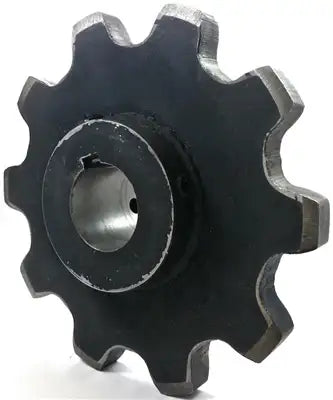

Cast 520-Series Sprockets
Note: Tooth Face at Pitch Line: 0.875"/ Roller Diameter: 1.125"
Sprocket Size
|
Tooth Count
|
Style
|
Pitch Diameter
|
Hub Diameter
|
Length Thru Bore
|
Maximum Bore
|
Weight (LBS)
|
520C10 |
10 |
C
|
8.29"
|
4.00"
|
3.00"
|
2.00"
|
4.0 |
520C12 |
12 |
C
|
9.90"
|
4.00"
|
3.00"
|
2.00"
|
5.0 |
520C14 |
14 |
C
|
11.53"
|
5.00"
|
3.00"
|
2.50"
|
34.0 |
520C18 |
18 |
C
|
14.76"
|
5.00"
|
3.00"
|
2.50"
|
65.0 |
520C24 |
24 |
C
|
19.64"
|
6.00"
|
3.00"
|
3.00"
|
10.0 |
520C30 |
30 |
C
|
24.52"
|
7.50"
|
3.00"
|
3.00"
|
100.0 |
520C40 |
40 |
C
|
32.67"
|
7.50"
|
3.00"
|
3.00"
|
165.0 |
|
|
Requesting 520-Series Sprockets
To get a quote on 520-Series Sprocket simply fill out the request for quote from and someone from our customer service team will contact you. Please note that if you don't see the sprocket size you need above send us an email or give us a call.
|
|
|
