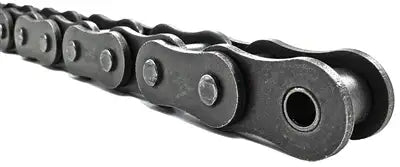

Simplex Metric 56B Chain - 10ft Box

56B Roller Chain
56B-1 Roller Chain

Alternative Views:

Our Price: $2,999.99
Note: Se Habla Espanol

Availability: Typically In-Stock
Product Code: 56B-1-ROLLER-CHAIN

Description Technical Specs
56B roller chain is a 15.875mm pitch ISO metric roller chain that conforms to British Standards (BS). Our high-quality 56B chain is manufactured from high-grade carbon and alloy steels for superior performance, strength, and lifespan. We also utilize specific manufacturing techniques for improved function and reduced elongation when creating our precision 56B chain. Something important to note is that this chain uses straight sidebars, much like a conveyor series roller chain, but maintains the same function as a drive-type roller chain. Dimensionally the same as other brands, our 56B chain demonstrates above-average features and benefits at an economical price point. For additional information or bulk quantities of the 56B roller chain, contact our customer support team, and we will gladly assist you!

56B Roller chain Dimensions

56B roller chain dimensions
  • Part #: 56B
  • Pitch (P): 88.90mm
  • Roller Width (R): 53.34mm
  • Roller Diameter (D): 53.98mm
  • Overall Width (W): 117.50mm
  • Connecting Link Overall Width (X): 138.00mm
  • Plate Height (H): 77.80mm
  • Plate Thickness (T): 13.00mm
  • Pin Diameter (L): 34.32mm
  • Minimum Breaking Load: 80,000 KGS
  • Weight: 35.0 kG/ m
  • Heat-treated and shot peened side plates, rollers, bushings, and pins - This not only increases the fatigue strength of the chain, but it dramatically improves the overall working life and dependability of the chain.
    Factory pre-loaded - This dramatically reduces initial chain stretching that is common with other chains in the same price-level, thus improving sprocket life and performance.
    Pre-lubricated from the factory - All of our roller chains are supplied with a proven high-quality lubrication that is applied at the factory level. We also provide additional roller chain lubricants to keep your chain running at its optimal performance and longest possible life.
    Solid Rollers - The implementation of a solid roller has proven to increase the working life and performance of a chain. This is due to the simple fact that the roller is the primary wear part that comes in direct contact with the sprocket tooth. A split roller will deform and cause a hyper-wear effect past a certain point.
    Made In Accordance With Multiple Standards - Not only is our chain made to ISO R606 standards, but it also conforms to British Standard 228 (BS 228), and Deutsches Institut für Normung (DIN) 8187 Standards.

56B-1 Connecting Link 56B-1 Offset Link
56B-1 Connecting Link 56B-1 Offset Link
