6 Spline Hub for 14mm Splined Shaft - Brass
6 Spline Hub for 14mm Splined Shaft - Brass
Note:
Custom Cut to Length Chain Also Available
Product Code: 64835200-HUB
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

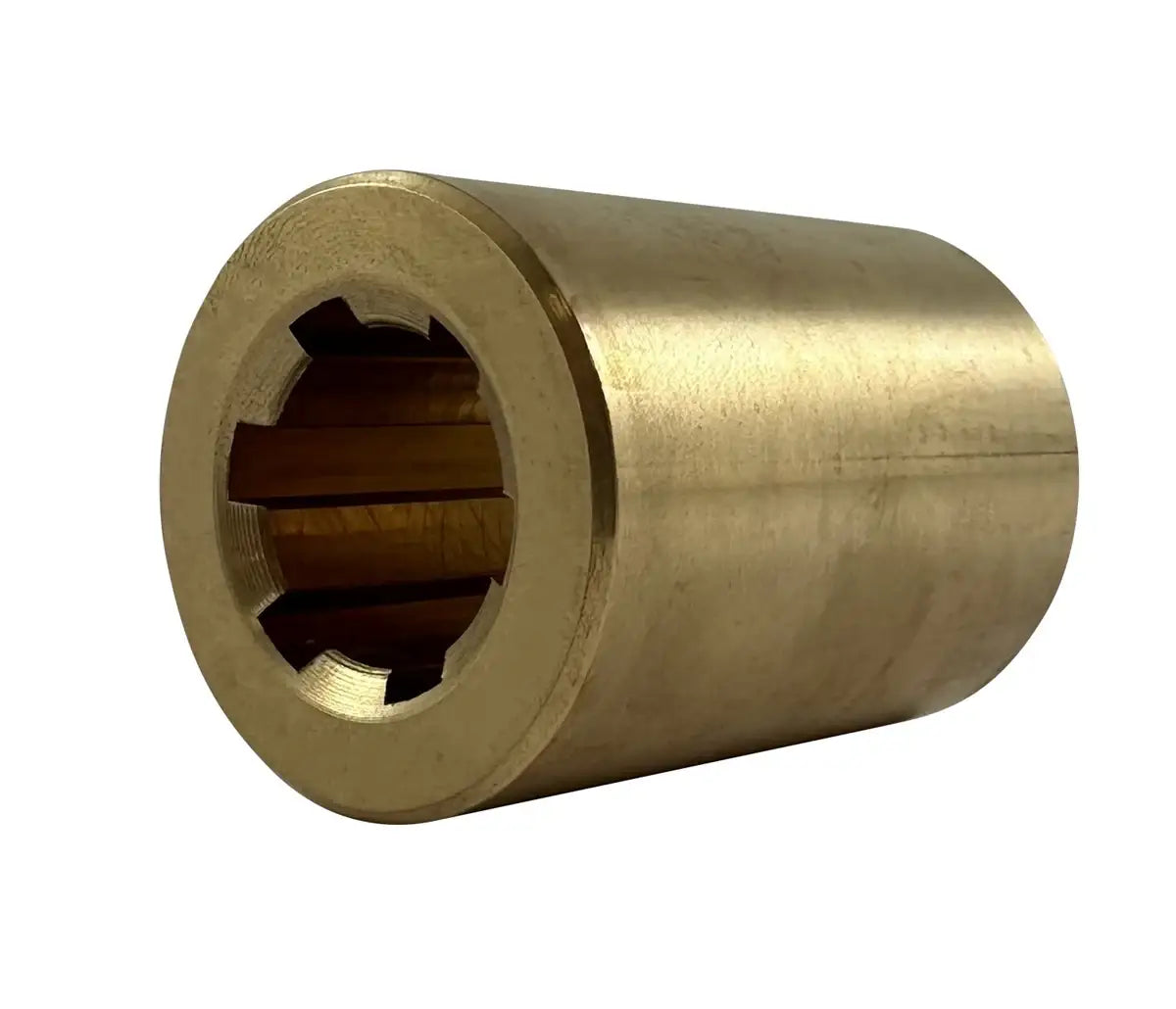

Our top-of-the-line 14mm spline hub with 6-splines is precision machined from premium red brass for resistance to corrosion and a wide operating temperature range! This 6-spline hub for 14mm splined shafting is dimensionally made per DIN ISO 14 standards for superb fitment and universality with other brands. Spline hubs are placed onto splined shafts for various reasons, such as coupling two shafts together, providing a surface to mount things to, and more! For additional information or to get a quote on our premium brass 14mm splined shaft, contact our customer service team, and we will gladly assist you!
14mm Splined Shaft Hub Dimensions
- Part Number: 64835200
- Material: Red Brass
- Profile Description: KN 11 X 14
- Number of Keyways: 6
- Dimension (D): 14mm
- Dimension (d): 11mm
- Dimension (b):3 mm
- Dimension (A): 20mm
- Length: 40mm
- Weight: 0.08 KG
Feature
- Precision Made from Red Brass
- Made for 14mm Splined Shafting
- Conforms to DIN ISO 14 Standard
- Part Number: 64835200
- Material: Red Brass
- Profile Description: KN 11 X 14
- Number of Keyways: 6
- Dimension (D): 14mm
- Dimension (d): 11mm
- Dimension (b):3 mm
- Dimension (A): 20mm
- Length: 40mm
- Weight: 0.08 KG
