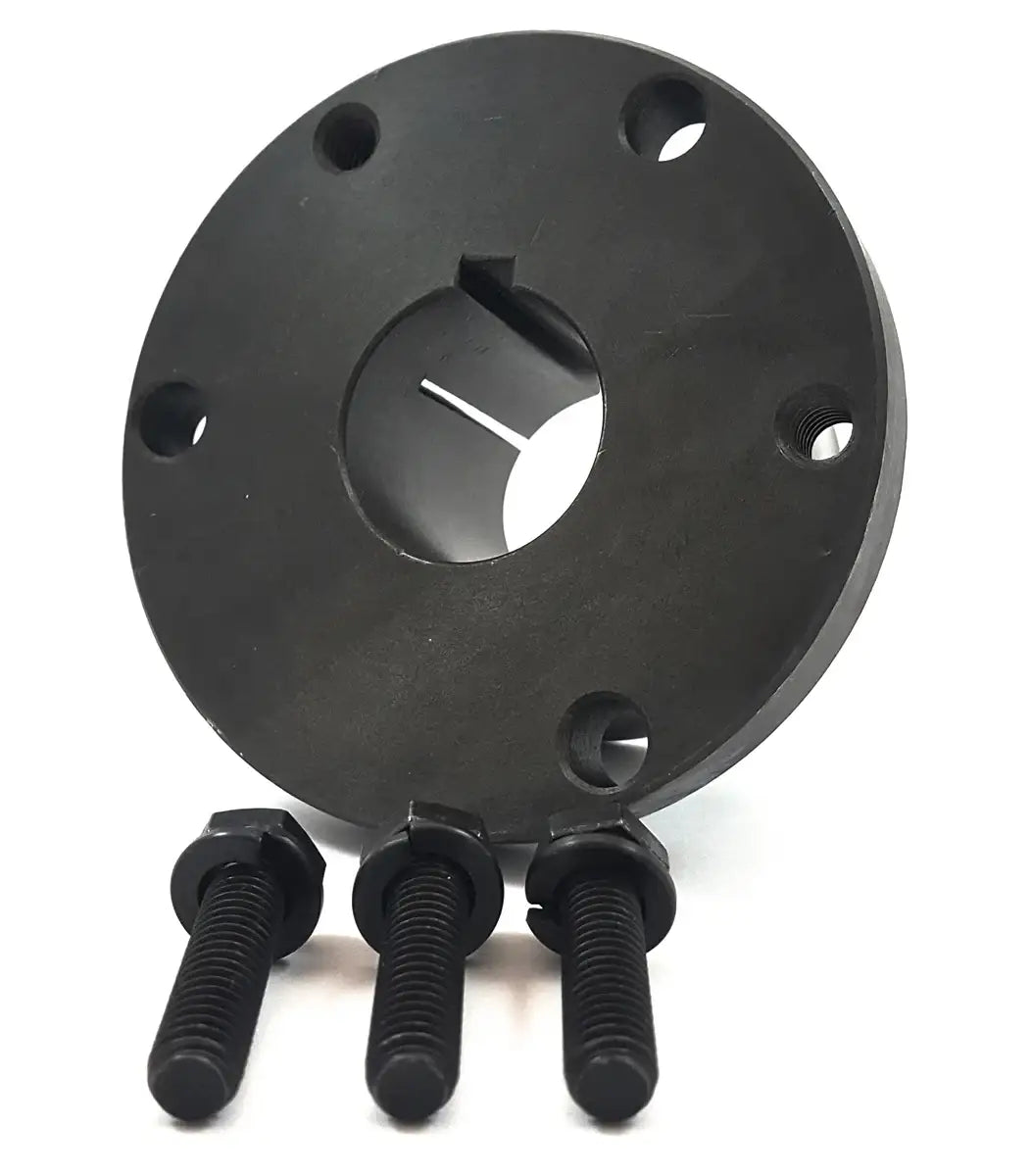

B Bushing With 1-1/2" Bore

B Bushing
B Bushing



Alternative Views:




Product Code: B-1-12-BUSHING
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

This B bushing features a 1-1/2" bore and offers superior strength, durability, and quality versus most other B bushings. What really sets these bushings apart is the extreme precision, quality control, and high quality material used when being manufactured. This means when you order these from us you can always expect a consistent and premium product! USA Roller Chain & Sprockets is a one-stop shop facility that is focused on providing the best customer service, value, and selection. We have a highly trained expert staff to provide answers to any questions you might have. For more information or to get a large quantity quote on B bushings please contact us and we will be happy to assist you!

Dimensions:

  • Bushing Type: B
  • Bore Size: 1-1/2"
  • Dimension (L): 1-15/16"
  • Dimension (U): 1/2"
  • Dimension (T): 17/16"
  • Large End (D): 2.625"
  • Small End (D): 2.557"
  • Dimension (H): 3-11/16"
  • Dimension (V): 3-1/8"
  • Dimension (W): 1/2"
  • Dimension (X): 13/16"
  • Dimension (Y): 7/32"
  • Dimension (R): 1/4"
  • Dimension (S): 1/4"
  • Cap Screw Amount: 3
  • Cap Screw Size: 5/16" X 1-1/4"
  • Average Weight: 1.8 LBS
  • Wrench Torque: 192 LBS

Installation
1. Be sure the tapered cone surfaces of the bushing and the inside of the driven product are clean and free of anti-seize lubricants.
2. Place the bushing in sprocket or other part type that accepts the bushing.

3. Place cap screws loosely in pull-up holes. The bushing remains loose to assure sliding fit on shaft.
4. With key on shaft, slide the sprocket or other part type to the desired position on the shaft. Be sure to leave the heads of the cap screws accessible.
5. Align the sprocket or part type, tighten the screws alternatively and progressively until they are pulled up tight. Do not use extensions on the wrench handles and do not allow the sprocket or part to be drawn i contact with flange of bushing. At this point there should be a gap between the bushing flange and sprocket, make sure this gap does not close.


Removal
1. Loosen and remove cap-screws.
2. Insert cap-screws in tapped removal holes.
3. Tighten inserted screws until sprocket or other part type is loose on shaft.
4. Remove sprocket/ part type from shaft.


Warnings: use of anti-seize lubricant on tapered cone surfaces or on bolt threads when mounting may result in damage to sheaves and sprockets. This voids all manufacture's warranties.
