H480 Chain

H480 Chain Premium H480 Chain
H480 Chain



Note: Contact Us For Large Quantity Request


Availability: Normally In-Stock
Product Code: H480-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

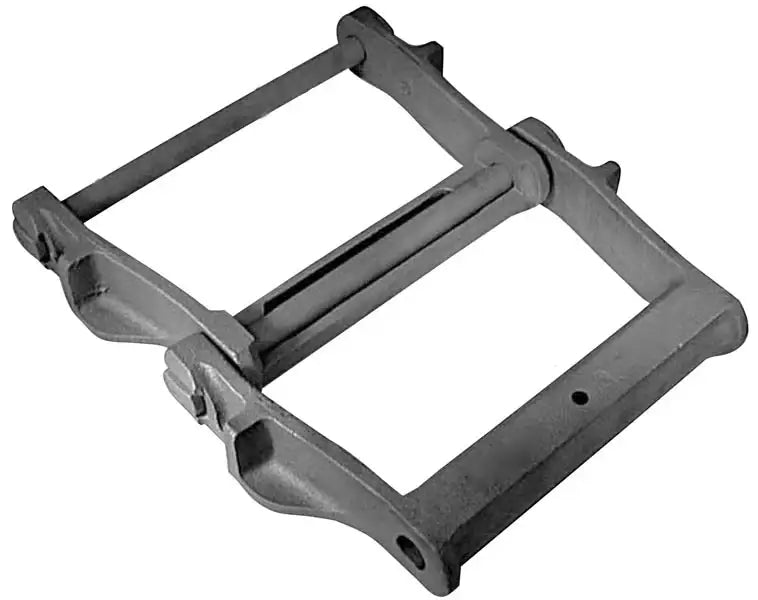

H480 Chain is an H-Class refuse drag chain that is manufactured with Promal cast links and heat-treated carbon steel pins for added durability. This H480 chain is extremely durable, high quality, and is used for conveying abrasive waste materials through wooden or steel troughs. Due to the large and wide opening area, this chain has/ provides a sizable carrying capacity when operated at moderate speeds, even in harsh and demanding applications. When in operation, links should always be run in the direction of the closed barrel. Besides the chain its self, we also have a full line of high-quality H480 chain sprockets. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: H480
  • Pitch: 8.00"
  • Maximum Allowable Sprocket Face (A): 11.12"
  • Pin Diameter (E): 0.75"
  • Sidebar Height (H): 2.00"
  • Overall Width (N): 16.00"
  • Length Of Barrel (X): 12.69"
  • Maximum Recommended Working Load: 8,650 LBS
  • Average Ultimate Strength: 52,000 LBS
  • Links Per 10ft: 15
  • Weight: 18.1 LBS/ FT
  • Note: Available In Riveted Construction Only

Phone: (407) 347-3519
Email:
sales@usarollerchain.com


About Us
Features
    • Premium Quality Chain
    • Extremely Durable
    • Features Heat Treated Pins
    • Usable In Abrasive Environments
    • Typically In-Stock

Accessories
H480 Chain Sprockets
H480 Chain Sprockets
