Vortex VXT915 Reducer

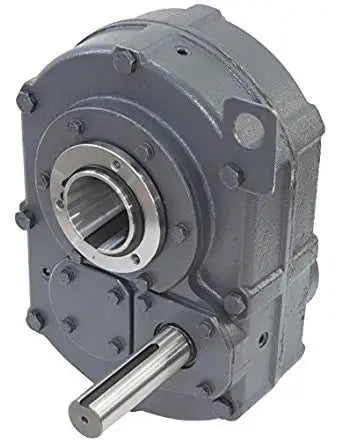

VXT915 Shaft Mount Reducer
VXT915 Shaft Mount Reducer



Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years


Availability: Typically In-Stock
Product Code: VXT915-REDUCER
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

This Vortex VXT915 reducer has a 15:1 ratio and is a premium quality, high strength gearbox. Vortex brand reducers use special gears that have been manufactured out of high-grade steel, then case hardened, and finally precision ground to AGMA standards for maximum durability and performance. The seals in a VXT915 reducer are spring loaded and double lipped for minimal oil leakage and provides an overall longer seal life, plus the seal is protected by a metal reinforced guard. The shaft used in Vortex reducers is manufactured out of heat-treated alloy steel for the highest strength and durability. The housing is manufactured out of cast iron to damper vibration and is coated with a highly corrosive resistant coating. To round it all off the Vortex VXT915 reducer uses a combination of premium tapered roller bearings and ball bearings to provide the highest load capacities and longest bearing life possible.

Reducer Dimensions:

  • Part #: VXT915
  • Ratio: 15:1
  • Box Size: 9
  • Dimension (L): 22.63"
  • Dimension (M): 31.69"
  • Dimension (N): 14.12"
  • Dimension (F): 2.4375"
  • Key: 0.625" X 0.312" X 7.75"
  • Maximum Dimension (B): 4-15/16""
  • Dimension (C): 2.44"
  • Dimension (E): 8.75"
  • Dimension (G): 6.63"
  • Dimension (W): 3.13"
  • Dimension (U): 4"
  • Dimension (X): 7.04"
  • Dimension (V): 5.66"
  • Dimension (Q): 9.65"
  • Dimension (Y): 2.98"
  • Dimension (H): 8.12"
  • Dimension (A1): 6.59"
  • Dimension (A2): 12.66"
  • Dimension (A3): 10.81"
  • Dimension (h): 11.31"
  • Minimum Dimension (R): 30"
  • Maximum Dimension (R): 36"
  • Dimension (P): 0.75"
  • Dimension (T): 7"
  • Gear Box Weight: 783 LBS


Vortex shaft mount reducers are a direct drop in for TXT style reducers and are mechanically interchangeable with most other brands. For additional information or load and mechanical ratings on the Vortex VXT915, or to get pricing and availability. Please contact us and we will be happy to assist you.


Phone: (407) 347-3519
Email:
sales@usarollerchain.com

About Us
Features
    • Premium Quality Reducer
    • Typically In Stock
    • Extremely Durable
    • High Performance

Accessories
SMR8/9BSK Backstop BG9 Belt Guard SMR9 Torque Arm SMR915RBKIT Rebuild Kit
SMR89BSK Backstop BG9 Belt Guard SMR9 Torque Arm SMR915RBKIT Rebuild Kit
