WH188 Chain | Welded Steel 188 Mill Chain

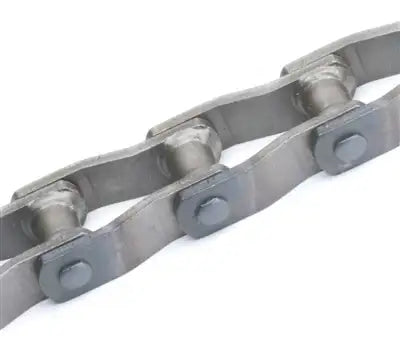

WH188 Chain





Product Code: WH188-CHAIN
Get a Quote
Call to Order 407-347-3519

Description

Our welded steel WH188 chain is manufactured to exceed expectations in working life, strength, and quality. The welded steel style chain is one of the most popular types of Engineer Class Chain on the market. This is widely due to its effectively productive offset link design. With an ultra-high tensile strength of 33,000 lbs at a low per foot weight of 3.8 lbs, WH188 chain makes an excellent and efficient use in whichever application it is used in. What makes our WH188 chain different is the fully heat treated pins, barrels, side-plates, and high-precision strengthened welds. We also use high-grade steel so the core of the components has great metallurgy. Common applications for WH188 welded steel chain include heavy-duty conveyors, forestry, grain handling, pulp, paper, and sugar processing. This chain is supplied as 10' coils (46 link strands) and is supplied with one heat-treated connecting pin per coil.

Made in USA WH188 Chains
Something that really sets USA Roller Chain and Sprockets apart from other suppliers in the industry is our lineup of domestically manufactured chains. We supply a Made in USA WH188 chain for almost the same price as an import chain, the benefit of domestic welded steel chains boils down to the metallurgy and workmanship/ quality control. Domestic steel has better properties than import and US workers ensure the chain is up to quality standards and is ready for install. Though working loads and tensile strengths are the same with a domestic chain, the metallurgy that domestic materials support will provide an overall better working life in the long-run.

WH188 Chain Dimensions


  • Part Number: WH188
  • Tensile Strength: 33,000lbs
  • Pitch (A): 2.609"
  • Side Bar Height (B): 1.12"
  • Side Bar Thickness (C): 0.25"
  • Rivet Pin Diameter (D): 0.50"
  • Overall Width (E): 2.69"
  • Bearing Length (F): 1.62"
  • Barrel Diameter (H): 0.88"
  • Maximum Sprocket Width (G): 1.000"
  • Extreme Durability & High Strength
  • Easy Attachment Weld Ability

WH188 Chain Accessories

We also offer a full line of high-quality sprockets that range in tooth size, bore size, and hub configuration. We can even supply Made To Order (MTO) and custom sprockets to meet your exact needs. Also, we can supply WH188 chain attachments, tensioners, and puller tools!
WH188 Sprocket Travel Direction:

Non-Standard Attachments:

Pusher Attachment

Flat Bar

HSS Square Tube
Pusher Attachment - These are used in trimmer applications, steel mills, and applications for pushing heavy or large products.
Flat Bar - These attachments are offered as just a standard steel flat plates/ flights or with UHMW or press-fitted steel tube. The UHMW flights act as the wear strip in the bottom of a conveyor.
HSS Square Tube -
These are easily replaceable UHMW or steel tube sleeves that reduce wear, maintenance cost, power consumption, and reduce noise.
Non-standard attachments are made per requested dimensions from the customer.
