World Wide Electric SMR8-15/1 Reducer

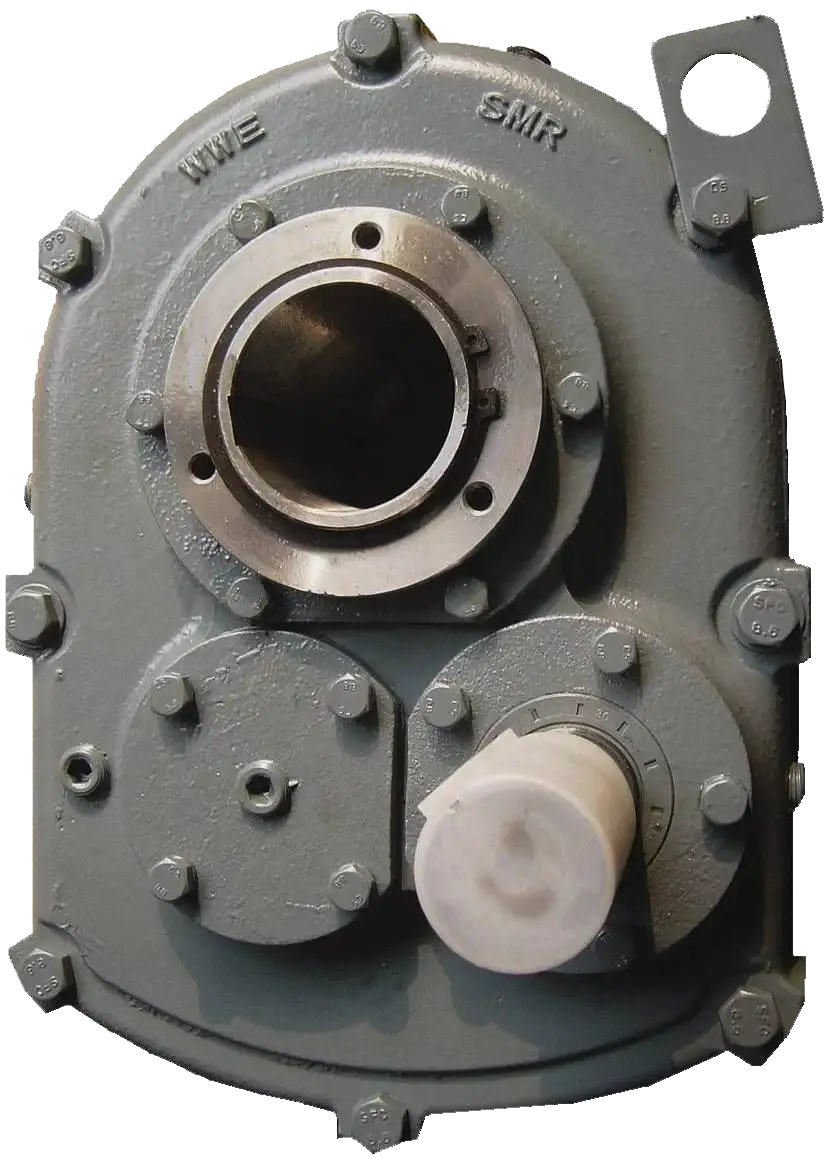

World Wide SMR8-15 Reducer
World Wide SMR8-15 Reducer



Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years


Availability: Typically In-Stock
Product Code: SMR8-15-REDUCER
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

World Wide Electric SMR8-15/1 reducer is a high quality and extremely durable 15:1 shaft mount reducer. This reducer is a dimensional equivalent to the popular TXT series gearboxes and will even work with all TXT compatible accessories. Also for new applications we can supply a full line of motor mounts, belt guards, tapered bushings, and backstops.

One thing that really makes this a premium quality reducer is that both the shafts and gears are manufactured from a high grade steel, then case hardened, and then precision ground to A.G.M.A. Standards. The reducer also uses premium ball and tapered bushings for smooth operation and lower noise. All shafts use metal reinforced double lip seals to prevent oil leakage and articles from getting in. Then to wrap it all up the housing is made of a heavy duty FCD45 cast iron for corrosion resistance.



SMR8-15 Reducer Dimensions


  • Part #: SMR8-15
  • Ratio: 15:1
  • Box Size: 8
  • Dimension (L): 20.25"
  • Dimension (M): 28.25"
  • Dimension (N): 14.03"
  • Dimension (F): 2.4375"
  • Key: 0.625" X 0.312" X 5.375"
  • Maximum Dimension (B): 4-7/16"
  • Dimension (C): 2.06"
  • Dimension (E): 7.75"
  • Dimension (G): 4.31"
  • Dimension (W): 3.13"
  • Dimension (U): 4.00"
  • Dimension (X): 7.04"
  • Dimension (V): 5.85"
  • Dimension (Q): 7.11"
  • Dimension (Y): 2.86"
  • Dimension (H): 8.37"
  • Dimension (A1): 6.03"
  • Dimension (A2): 11.25"
  • Dimension (A3): 9.50"
  • Dimension (h): 10.13"
  • Minimum Dimension (R): 30"
  • Maximum Dimension (R): 36"
  • Dimension (P): 0.75"
  • Dimension (T): 7"
  • Gear Box Weight: 655 LBS


The World Wide Electric SMR8-15/1 reducer also interchanges with most other brands. To find out more, or to get pricing and availability please contact us and we will be happy to assist you.
