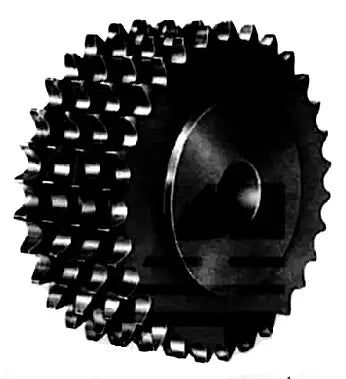

80-4 Chain Sprockets
Our four-strand 80-4 Roller Chain Sprockets are manufactured in accordance with ANSI B29 standards and boast high-precision tolerances for dependable and consistent performance with the 1" pitch chain. We also stock 80-4 roller chain and a wide range of other components such as v-belt pulleys, electric motors, gear reducers, bearings, and more! The below chart shows standard 80-3 chain sprockets but we also supply custom roller chain sprockets and specific bore sprockets. For more information or to get a quote please contact us and we will be happy to assist you!80-4 Quadruple Sprocket Size Chart
80-4 B-Hub Sprockets
|
|
Tooth Count | Outside Diameter | Stock Bore | Max. Recommended Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|
| F80B13 | 13 | 4.660" | 1" | 1-3/4" | 3-1/32" | 5" | 13.0 |
| F80B14 | 14 | 4.980" | 1" | 1-13/16" | 3-11/16" | 5" | 15.5 |
| F80B15 | 15 | 5.300" | 1" | 1-13/16" | 3-11/16" | 5" | 18.5 |
| F80B16 | 16 | 5.630" | 1" | 2-3/8" | 4" | 5" | 21.5 |
| F80B17 | 17 | 5.950" | 1" | 2-11/16" | 4-5/16" | 5" | 24.7 |
| F80B18 | 18 | 6.270" | 1" | 2-3/4" | 4-1/2" | 5" | 27.6 |
| F80B19 | 19 | 6.590" | 1" | 2-3/4" | 4-1/2" | 5" | 31.1 |
| F80B20 | 20 | 6.910" | 1" | 2-3/4" | 4-1/2" | 5" | 34.2 |
| F80B21 | 21 | 7.240" | 1" | 2-3/4" | 4-1/2" | 5" | 37.6 |
| F80B22 | 22 | 7.560" | 1" | 2-3/4" | 4-1/2" | 5" | 41.3 |
| F80B23 | 23 | 7.880" | 1" | 2-3/4" | 4-1/2" | 5" | 45.0 |
| F80B24 | 24 | 8.200" | 1" | 3-1/4" | 5-1/4" | 5" | 50.6 |
| F80B25 | 25 | 8.520" | 1" | 3-1/4" | 5-1/4" | 5-1/4" | 56.2 |
| F80B26 | 26 | 8.840" | 1" | 3-1/4" | 5-1/4" | 5-1/4" | 60.5 |
| F80B27 | 27 | 9.160" | 1" | 3-1/4" | 5-1/4" | 5-1/4" | 65.0 |
| F80B28 | 28 | 9.480" | 1" | 3-1/4" | 5-1/4" | 5-1/4" | 69.6 |
| F80B30 | 30 | 10.110" | 1" | 3-5/8" | 5-3/4" | 5-3/4" | 81.0 |
| F80B32 | 32 | 10.750" | 1" | 3-5/8" | 5-3/4" | 5-3/4" | 93.4 |
| F80B35 | 35 | 11.710" | 1" | 3-5/8" | 5-3/4" | 5-3/4" | 111.0 |
| F80B36 | 36 | 12.030" | 1" | 3-5/8" | 5-3/4" | 5-3/4" | 117.0 |
| F80B40 | 40 | 13.310" | 1" | 3-5/8" | 5-3/4" | 5-3/4" | 143.0 |
| F80B42 | 42 | 13.940" | 1-7/16" | 3-15/16" | 6 | 6" | 161.0 |
| F80B45 | 45 | 14.900" | 1-7/16" | 3-15/16" | 6 | 6" | 183.0 |
| F80B48 | 48 | 15.860" | 1-7/16" | 3-15/16" | 6 | 6" | 208.0 |
| F80B52 | 52 | 17.130" | 1-7/16" | 3-15/16" | 6 | 6" | 242.0 |
| F80B54 | 54 | 17.770" | 1-7/16" | 3-15/16" | 6 | 6" | 261.0 |
| F80B60 | 60 | 19.680" | 1-15/16 | 3-15/16" | 6 | 6" | 318.0 |
