Five Strand Standard Roller Chain
Five Strand Roller Chain is also known as a quintuple roller chain. We also supply five strand roller chain sprockets and a complete line of roller chain lubricant.
| Chain Size | Pitch (P) | Roller Width (W) | Roller Diameter (D) | Overall Width (A) | Plate Height (H) | Plate Thickness (T) | Pin Diameter (E) | Avg. Ultimate Strength | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|---|
| #40-5 | 0.500" | 0.312" | 0.312" | 2.98" | 0.475" | 0.058" | 0.156" | 21,450 LBS | 2.11 LBS |
| #50-5 | 0.625" | 0.375" | 0.400" | 3.70" | 0.594" | 0.079" | 0.200" | 34,650 LBS | 3.37 LBS |
| #60-5 | 0.750" | 0.500" | 0.469" | 4.65" | 0.712" | 0.093" | 0.234" | 49,500 LBS | 4.97 LBS |
| #80-5 | 1.000" | 0.625" | 0.625" | 6.02" | 0.950" | 0.125" | 0.312" | 88,000 LBS | 8.60 LBS |
| #100-5 | 1.250" | 0.750" | 0.750" | 7.35" | 1.188" | 0.157" | 0.375" | 133,100 LBS | 12.9 LBS |
| #120-5 | 1.500" | 1.000" | 0.875" | 9.27" | 1.425" | 0.189" | 0.437" | 187,000 LBS | 19.2 LBS |
| #140-5 | 1.750" | 1.000" | 1.000" | 10.02" | 1.663" | 0.219" | 0.500" | 242,000 LBS | 24.4 LBS |
| #160-5 | 2.000" | 1.250" | 1.125" | 11.94" | 1.901" | 0.255" | 0.563" | 302,500 LBS | 32.5 LBS |
| #200-5 | 2.500" | 1.501" | 1.562" | 14.72" | 2.376" | 0.312" | 0.782" | 528,000 LBS | 56.4 LBS |

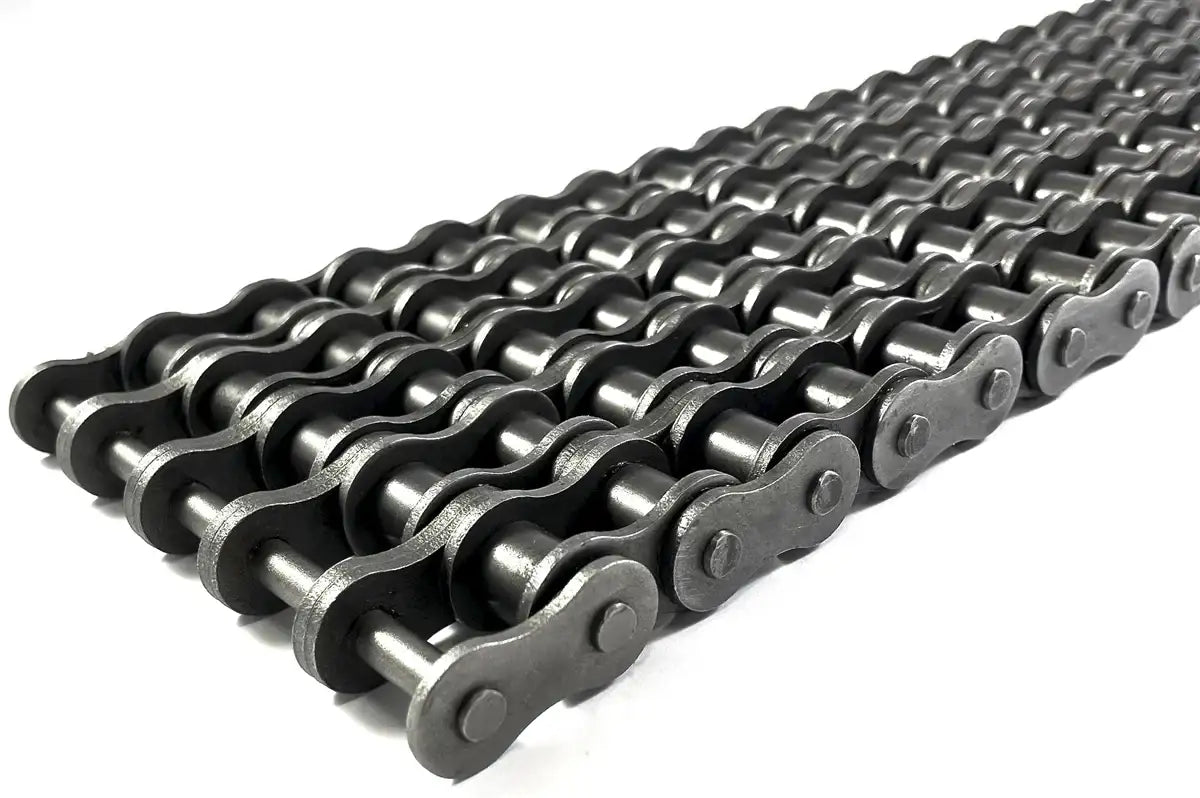

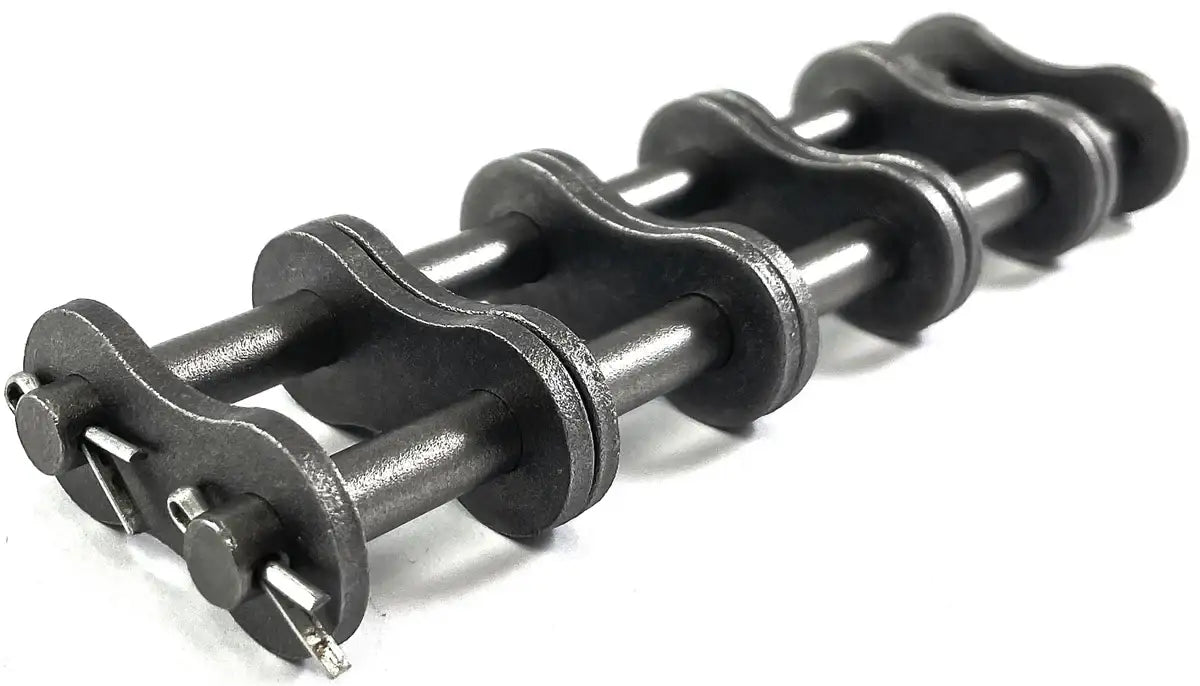

We stock a full line of high quality ANSI five strand roller chain in three different quality levels; Economy Plus, General Duty Plus, and Premier Series. These chains are typically supplied as 10' boxes including a connecting link but can be supplied as alternate lengths upon request. On top of that we can also supply five strand sprockets!
The Different Quality Levels:
Economy Plus five roller chains are manufactured in accordance to ANSI B29.1 Standards and feature high tensile strengths, sold rollers, and are good for moderate to light duty applications.
General Duty Plus five roller chains are the best "bang for your buck" when it comes to buying roller chains. They generally offer extended performance, sold roller and solid bushings in some sizes, higher quality material, high-precision components, and are supplied with a good quality lubricant. General Duty Plus double roller chains are good for moderate to heavy duty applications.
Premier Series five roller chain takes things up a notch by being supplied with solid bushings and solid rollers on all sizes. Each component that goes into the Premier Series double roller chains are heat treated for maximum hardness, shot peened, and manufactured with the utmost precision. They are also pre-stretched after assembly to reduce or eliminate elongation. They offer the highest strengths, best performance, and longest working life. These chains are good for applications that require a high strength and high precision roller chain and heavy duty abrasive applications.
