Steel Bushed Chains
Steel bushed chains are manufactured using high-strength steel components and are typically used in asphalt, lumber, sugar mill, and elevating applications. Our line of steel bushed chains is manufactured to American Standards and offer superior strength and durability versus other suppliers. Each component within these steel bushed chains undergoes specific manufacturing processes and heat treatments to ensure the individual part operates optimally for the specific task at hand for the components within the chain.Steel Bushed Chain Sizes
|
Chain Size
|
Pitch (P)
|
Pin Diameter (E)
|
Riveted Overall Width (C1)
|
Cottered Overall Width
|
Sidebar Height (H)
|
Bushing Diameter (D)
|
Dimension (J)
|
Sidebar Thickness (T)
|
Width Between Inner Sidebars (W)
|
Bushing Length (X)
|
Ultimate Strength (LBS)
|
Working Load (LBS)
|
Weight (LBS/ FT)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS188 | 2.609" | 0.500" | 2.50" | 2.69" | 1.12" | 0.88" | 1.25" | 0.25" | 1.06" | 1.56" | 25,000 | 2,750 | 3.8 |
| SS131 | 3.075" | 0.625" | 3.50" | 3.75" | 1.50" | 1.25" | 1.62" | 0.38" | 1.31" | 2.06" | 40,000 | 4,500 | 7.4 |
| SS102B | 4.000" | 0.625" | 4.38" | 4.53" | 1.50" | 1.00" | 2.05" | 0.38" | 2.12" | 2.88" | 40,000 | 6,300 | 6.9 |
| SS111 | 4.760" | 0.750" | 5.00" | 5.44" | 2.00" | 1.44" | 2.38" | 0.38" | 2.62" | 3.38" | 50,000 | 8,850 | 10.2 |
| SS110 | 6.000" | 0.625" | 4.38" | 4.53" | 1.50" | 1.25" | 2.05" | 0.38" | 2.12" | 2.88" | 40,000 | 6,300 | 6.3 |
| SS833 | 6.000" | 0.750" | - | 5.10" | 2.00" | 1.44" | 2.38" | 0.38" | 2.62" | 3.38" | 50,000 | 8,850 | 20.2 |
| SS856 | 6.000" | 1.000" | 6.00" | 6.31" | 2.50" | 1.75" | 2.91" | 0.50" | 3.00" | 4.00" | 100,000 | 14,000 | 16.5 |
| SS857 | 6.000" | 1.000" | - | 5.94" | 3.25" | 1.75" | 2.81" | 0.50" | 3.00" | 4.00" | 130,000 | 14,000 | 21.0 |
| SS859 | 6.000" | 1.250" | - | 7.25" | 4.00" | 2.38" | 3.44" | 0.62" | 3.75" | 5.00" | 200,000 | 21,800 | 34.0 |
| SS956 | 6.000" | 1.000" | - | 5.94" | 3.00" | 1.75" | 2.78" | 0.50" | 3.00" | 4.00" | 100,000 | 14,000 | 23.0 |
| SS958 | 6.000" | 1.120" | - | 6.33" | 3.25" | 2.00" | 3.09" | 0.56" | 3.00" | 4.12" | 151,000 | 18,210 | 40.0 |
| SS958SJ | 6.000" | 1.120" | - | 6.83" | 3.25" | 2.00" | 3.34" | 0.56" | 3.00" | 4.12" | 151,000 | 18,210 | 40.0 |
| SS150+ | 6.050" | 1.000" | 6.50" | 6.62" | 2.50" | 1.75" | 3.06" | 0.50" | 3.31" | 4.31" | 100,000 | 15,100 | 16.6 |
| SS864 | 7.000" | 1.250" | - | 7.25" | 4.00" | 2.38" | 3.44" | 0.62" | 3.75" | 5.00" | 200,000 | 21,000 | 31.0 |
| SS864SJ | 7.000" | 1.250" | - | 7.75" | 4.00" | 2.38" | 3.64" | 0.62" | 3.75" | 5.00" | 200,000 | 21,000 | 55.2 |
| SS984 | 7.000" | 1.38" | - | 7.25" | 4.00" | 2.50" | 3.41" | 0.62" | 3.75" | 5.00" | 200,000 | 24,000 | 58.0 |
| SS984SJ | 7.000" | 1.38" | - | 7.75" | 4.00" | 2.50" | 3.66" | 0.62" | 3.75" | 5.00" | 200,000 | 24,000 | 58.0 |
| SS994 | 7.000" | 1.58" | - | 7.25" | 4.00" | 2.50" | 3.41" | 0.62" | 3.75" | 5.00" | 200,000 | 27,500 | 58.0 |
| SS944SJ | 7.000" | 1.58" | - | 7.75" | 4.00" | 2.50" | 3.66" | 0.62" | 3.75" | 5.00" | 200,000 | 27,500 | 58.0 |
188 Steel Bushed Chain
Shop Now
131 Steel Bushed Chain
Shop Now
102B Steel Bushed Chain
Shop Now
102 1/2 Steel Bushed Chain
Shop Now

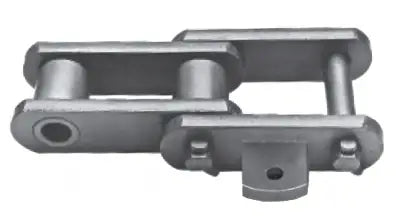

111 Steel Bushed Chain
Shop Now
110 Steel Bushed Chain
Shop Now
856 Steel Bushed Chain
Shop Now
857 Steel Bushed Chain
Shop Now
859 Steel Bushed Chain
Shop Now
150-X Steel Bushed Chain
Shop Now
864 Steel Bushed Chain
Shop Now
SBS188 Steel Bushed Chain
Shop Now
SBS131 Steel Bushed Chain
Shop Now
SBS102B Steel Bushed Chain
Shop Now
SBS102 1/2 Steel Bushed Chain
Shop Now

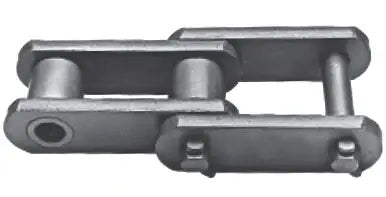

SBS111 Steel Bushed Chain
Shop Now
SBS110 Steel Bushed Chain
Shop Now
SBX856 Steel Bushed Chain
Shop Now
SBX2857 Steel Bushed Chain
Shop Now
SBX2859 Steel Bushed Chain
Shop Now
SBS150 Plus Steel Bushed Chain
Shop Now
SBX2864 Steel Bushed Chain
Shop Now
6188 Steel Bushed Chain
Shop Now
6131 Steel Bushed Chain
Shop Now
6102BM Steel Bushed Chain
Shop Now
6102 1/2 Steel Bushed Chain
Shop Now
6111M Steel Bushed Chain
Shop Now
6110MB Steel Bushed Chain
Shop Now
6856M Steel Bushed Chain
Shop Now
6867 Steel Bushed Chain
Shop Now
6869 Steel Bushed Chain
Shop Now
6150PM Steel Bushed Chain
Shop Now
6864 Steel Bushed Chain
Shop Now
4856 Steel Bushed Chain
Shop Now
4857 Steel Bushed Chain
Shop Now
4859 Steel Bushed Chain
Shop Now
4864 Steel Bushed Chain
Shop Now
SS188 Steel Bushed Chain
Shop Now
SS131 Steel Bushed Chain
Shop Now
SS102B Steel Bushed Chain
Shop Now

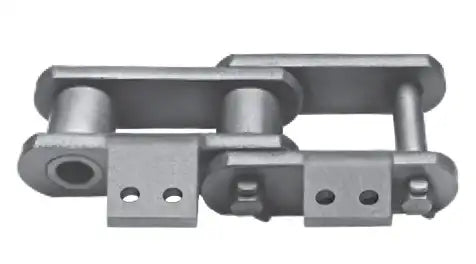

SS111 Steel Bushed Chain
Shop Now
SS110 Steel Bushed Chain
Shop Now
SS856 Steel Bushed Chain
Shop Now
SS857 Steel Bushed Chain
Shop Now
SS859 Steel Bushed Chain
Shop Now

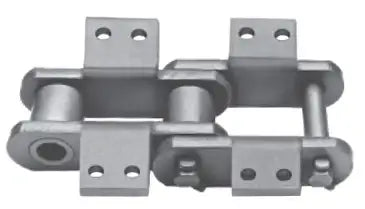

SS150+ Steel Bushed Chain
Shop Now

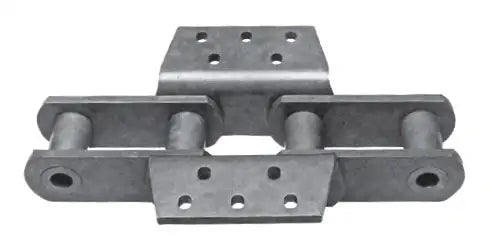

SS864 Steel Bushed Chain
