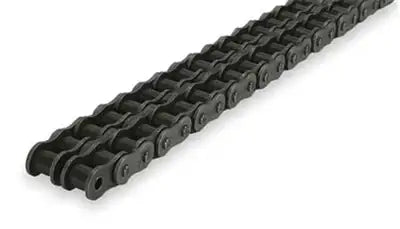

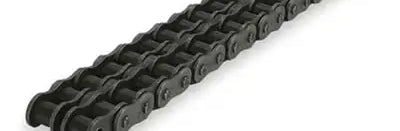

Metric 05B-2 Roller Chain
Note:
Custom Cut to Length Chain Also Available
$254.99
SKU: 05B-2-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 05B-2 Roller Chain Features
Metric 05B-2 Roller Chain Specifications
05B-2 roller chain conforms to all ISO standards and is a good quality, durable roller chain. This 05B-2 roller chain features heat-treated components, carbon steel construction, and solid rollers. The heat-treated components of the chain help ensure strength and durability while the solid rollers and ISO standard construction of the chain provide a good performance and extended working life. 05B-2 roller chain is commonly supplied as 10ft boxes including one connecting link each, however we can supply this chain in longer lengths or cut to length strands. Additionally, we offer a full line of 05B-2 sprockets and attachments.
05B-2 Roller Chain Dimensions
- Part Number: 05B-2
- Pitch (P): 0.315"
- Transverse Pitch (K): 0.222"
- Roller Link Width (W): 0.118"
- Roller Diameter (R): 0.197"
- Pin Diameter (D): 0.091"
- Overall Width (F): 0.571"
- Plate Height (H): 0.280"
- Part Number: 05B-2
- Pitch (P): 0.315"
- Transverse Pitch (K): 0.222"
- Roller Link Width (W): 0.118"
- Roller Diameter (R): 0.197"
- Pin Diameter (D): 0.091"
- Overall Width (F): 0.571"
- Plate Height (H): 0.280"
