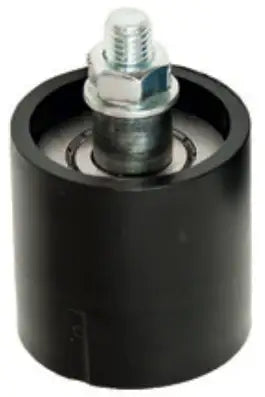

Rosta 06580901 RL11 Tensioning Roller For SE11 Tensioner
Note:
Custom Cut to Length Chain Also Available
SKU: 06580901-RL11-ROLLER
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Rosta 06580901 RL11 Tensioning Roller For SE11 Tensioner Features
Rosta 06580901 RL11 Tensioning Roller For SE11 Tensioner Specifications
Rosta 06580901 RL11 Tensioning Roller For SE11 Tensioner is a permanently lubricated roller that utilizes premium 2Z C3 shielded bearings. It has a broad operating temperature range of -31° to + 212° degrees Fahrenheit.
– The diameter of the flat tensioning roller should at least measure 2⁄3 of the diameter of the smallest pulley in the drive.
– The width of the tensioning roller should be at least 20% wider than the overall width of the belt set.
– Installation on the belt back in the slack span, make sure that the belts are maintaining sufficient contact-arc on the driver and driven pulley.
RL11 Tensioning Roller Dimensions
- Type: RL11
- Article Number: 06580901
- Max Speed: 6000 RPM
- Maximum Belt Width: 1.18"
- Dimension (A): 1.18"
- Dimension (B): 1.38"
- Dimension (C): 0.12"
- Dimension (D): 0.75"
- Dimension (E): 0.39"
- Dimension (F): M8
- Torque Hex Nut: 18.4 (lb/ ft)
- Works With Tensioner Type: SE-11
- Weight: 0.18 LBS
Tensioning With Flat Roller on Belt Back
– The diameter of the flat tensioning roller should at least measure 2⁄3 of the diameter of the smallest pulley in the drive.
– The width of the tensioning roller should be at least 20% wider than the overall width of the belt set.
– Installation on the belt back in the slack span, make sure that the belts are maintaining sufficient contact-arc on the driver and driven pulley.
- Type: RL11
- Article Number: 06580901
- Max Speed: 6000 RPM
- Maximum Belt Width: 1.18"
- Dimension (A): 1.18"
- Dimension (B): 1.38"
- Dimension (C): 0.12"
- Dimension (D): 0.75"
- Dimension (E): 0.39"
- Dimension (F): M8
- Torque Hex Nut: 18.4 (lb/ ft)
- Works With Tensioner Type: SE-11
- Weight: 0.18 LBS
