Roller Chain > Corrosion-Resistant Roller Chain > Stainless Steel Roller Chain > Stainless Steel Metric Roller Chain > 06B Stainless Steel Metric Roller Chain

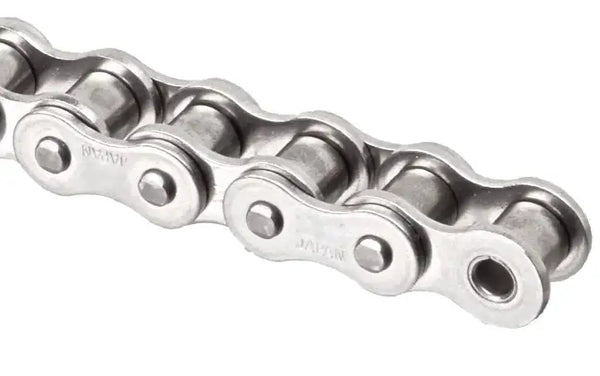

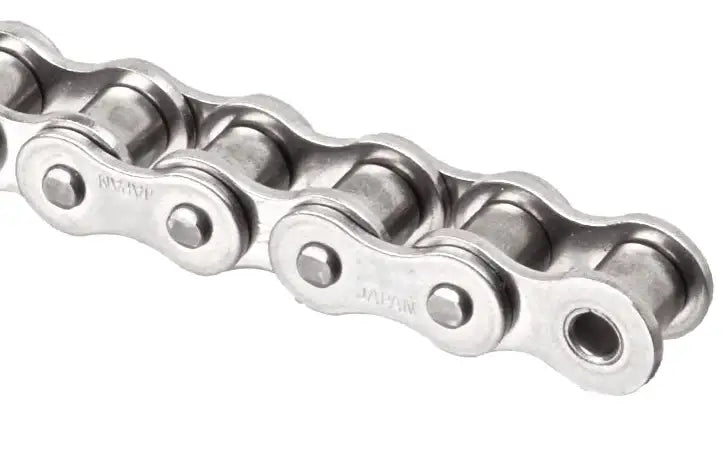

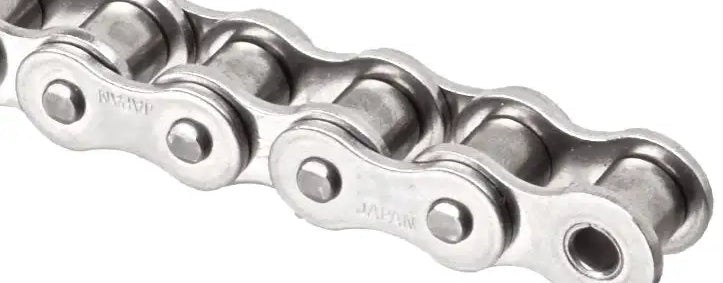

Metric 06B Stainless Steel Roller Chain - 10ft Box
Login to Request a Quote
06B stainless steel roller chain is an 9.525mm pitch metric roller chain that dimensionally conforms with ISO and British Standards (BS). Being made from 304-grade stainless steel means this 06B stainless chain can operate in abrasive, corrosive, and food-grade environments. Additionally, our 06B stainless steel roller chain utilizes high-precision components for optimal wear life and performance while being factory-pre-loaded to reduce elongation. Because our 06BSS roller chain conforms to ISO and BS standards, it is directly interchangeable with other brands. For more information or a quote on our high-quality 06B stainless steel roller chain, contact our customer support team, and we will gladly assist you!
06B Stainless Roller Chain Dimensions
- Part #: 06BSS
- Pitch (P): 9.525mm
- Roller Width (R): 5.72mm
- Roller Diameter (D): 6.35mm
- Overall Width (W): 13.50mm

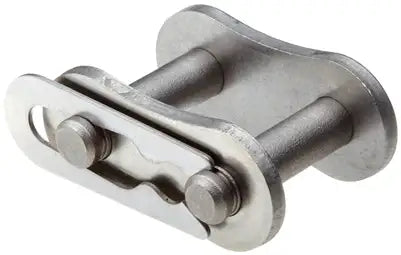

- Connecting Link Overall Width (X): 16.80mm
- Plate Height (H): 8.20mm
- Plate Thickness (T): 1.30mm
- Pin Diameter (L): 3.28mm
- Weight: 0.41 kG/ m
- Part #: 06BSS
- Pitch (P): 9.525mm
- Roller Width (R): 5.72mm
- Roller Diameter (D): 6.35mm
- Overall Width (W): 13.50mm
- Connecting Link Overall Width (X): 16.80mm
- Plate Height (H): 8.20mm
- Plate Thickness (T): 1.30mm
- Pin Diameter (L): 3.28mm
- Weight: 0.41 kG/ m
