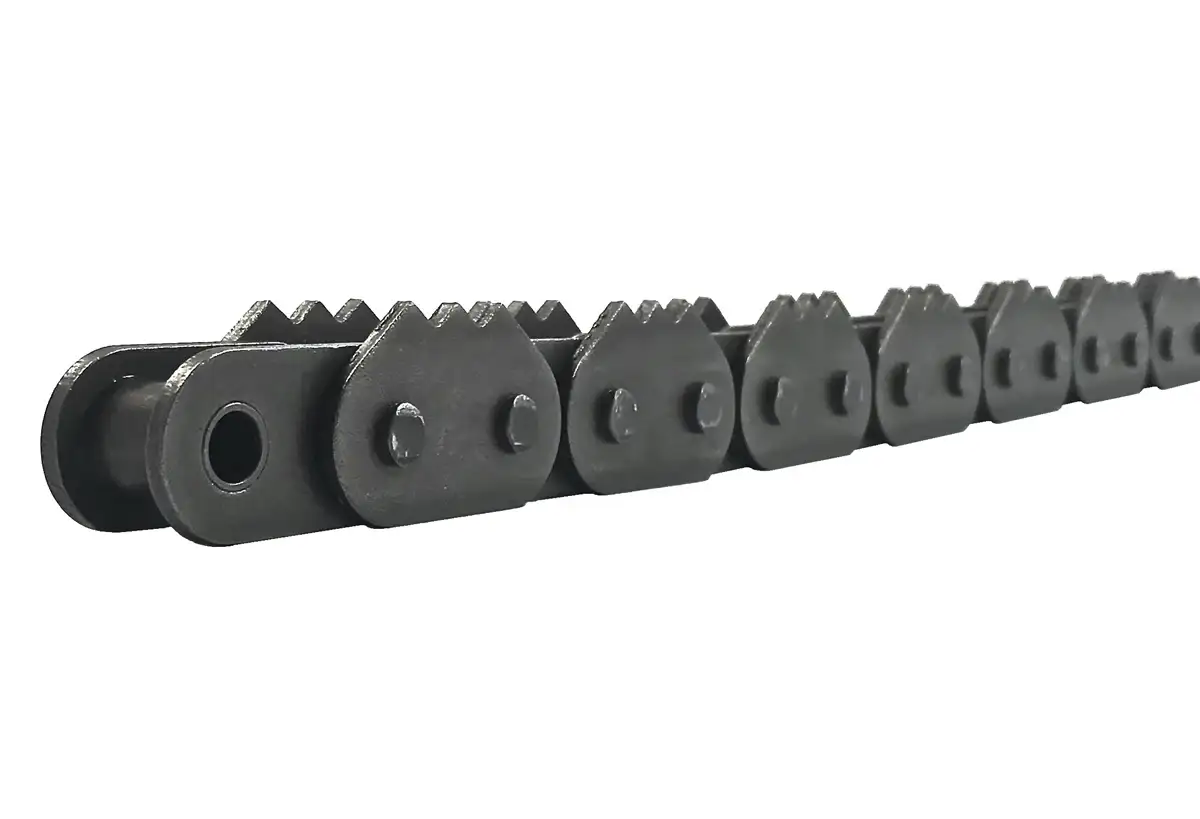

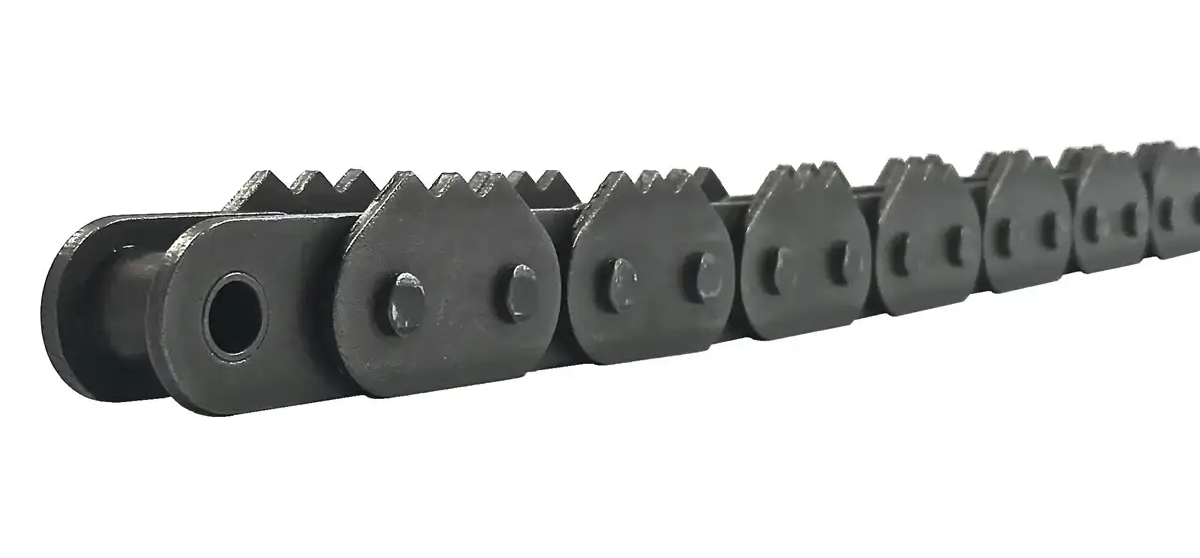

120 Sharp Top Roller Chain With 3-Points Every 2nd Pitch
Note:
Custom Cut to Length Chain Also Available
SKU: 120-1-ST-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
120 Sharp Top Roller Chain With 3-Points Every 2nd Pitch Features
120 Sharp Top Roller Chain With 3-Points Every 2nd Pitch Specifications
What sets our 120 sharp top roller chain with 3-points every 2nd pitch apart from others is our use of high-quality heat treated and shot peened components for optimal fatigue strength and working life, among a wide range of other premium features and specifications. Additionally, the teeth on this chain are high-precision for optimal grip and the least amount of penetration that could result in bruising or waste. At USA Roller Chain we pride ourselves in setting the bar not only in service but the quality level of the products we supply. To get pricing and availability on this chain, please contact us, and we'll be happy to assist you!
Chain Dimensions:
Additional Options:
Chain Dimensions:
- Chain Size: 120
- Style: 3-Points Every 2nd Pitch
- Pitch (P): 1.500"
- Dimension (B): 1.594"
- Dimension (C): 0.909"
- Dimension (D): 1.370"
- Dimension (E): 1.000"
- Dimension (F): 1.750"
- Dimension (G): 0.187"
- Dimension (H): 0.125"
- Dimension (I): 1.942"
Additional Options:
- Chrome Pins (standard in some sizes)
- Machined Smooth Bottoms to reduce damage to the chain beds
- Anti-Corrosive Coatings
- Induction Hardened Teeth
- Chain Size: 120
- Style: 3-Points Every 2nd Pitch
- Pitch (P): 1.500"
- Dimension (B): 1.594"
- Dimension (C): 0.909"
- Dimension (D): 1.370"
- Dimension (E): 1.000"
- Dimension (F): 1.750"
- Dimension (G): 0.187"
- Dimension (H): 0.125"
- Dimension (I): 1.942"
