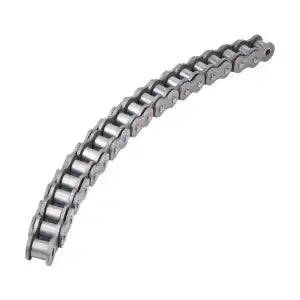

12B Side Bow Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 12B-SB-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
12B Side Bow Roller Chain Features
12B Side Bow Roller Chain Specifications
12B side bow roller chain has a 19.05mm pitch and is manufactured in accordance with ISO British Standards. Though it is a side bow chain, it still runs on standard 12B metric sprockets. This 12B side bow chain offers exceptional performance and working life due to using high-quality heat-treated components and being shipped with a premium lubricant already applied to the chain. Typically this chain will come in 10ft boxes including a connecting link but longer-length custom lengths can be made upon request. For more information or to get a quote please contact us and we will be happy to assist you.
12B Side Bow Chain Dimensions
- Pitch (P): 19.05mm
- Width Between Inner Plates (W): 11.68mm
- Roller Diameter (R): 12.07mm
- Pin Diameter (D): 5.72mm
- Inner Link Overall Width (B): 15.61mm
- Plate Height (H): 15.9mm
- Pin Length (F): 22.5mm
- Connecting Link Width (O): 23.7mm
- Minimum Flex Radius (R): 500mm
- Weight: 1.2 kG/ M
- Pitch (P): 19.05mm
- Width Between Inner Plates (W): 11.68mm
- Roller Diameter (R): 12.07mm
- Pin Diameter (D): 5.72mm
- Inner Link Overall Width (B): 15.61mm
- Plate Height (H): 15.9mm
- Pin Length (F): 22.5mm
- Connecting Link Width (O): 23.7mm
- Minimum Flex Radius (R): 500mm
- Weight: 1.2 kG/ M
