12BTB21H Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
SKU: 12BTB21H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
12BTB21H Sprocket (Taper Bushed) Features
12BTB21H Sprocket (Taper Bushed) Specifications

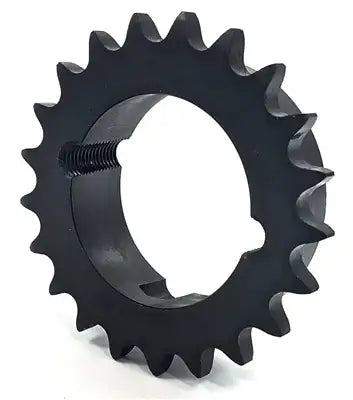

This 12BTB21H sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 2012 taper bushing. Our 12BTB21H sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our 12BTB21H sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 21 tooth sprocket, we also stock a high-quality 12B-1 roller chain, 2012 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed 12BTB21H sprockets, please contact us and one of our sales team members will be happy to assist you.
12BTB21H Sprocket Dimensions
- Sprocket Size: 12BTB21H
- Tooth Count: 21
- Pitch Diameter: 127.82mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Dimension (L): 31.75mm
- Dimension (C): 90.47mm
- Sprocket Weight: 1.18 kg
- Bushing Weight: 0.77 kg
- Sprocket Size: 12BTB21H
- Tooth Count: 21
- Pitch Diameter: 127.82mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Dimension (L): 31.75mm
- Dimension (C): 90.47mm
- Sprocket Weight: 1.18 kg
- Bushing Weight: 0.77 kg
