140SF12 Sprocket (QD Type)

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > #140 Roller Chain Sprockets > #140 SF-Type Sprockets

140SF12 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$229.99
SKU: 140SF12-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714160361839" , "metafield_value":""}]
140SF12 Sprocket (QD Type) Features
140SF12 Sprocket (QD Type) Specifications

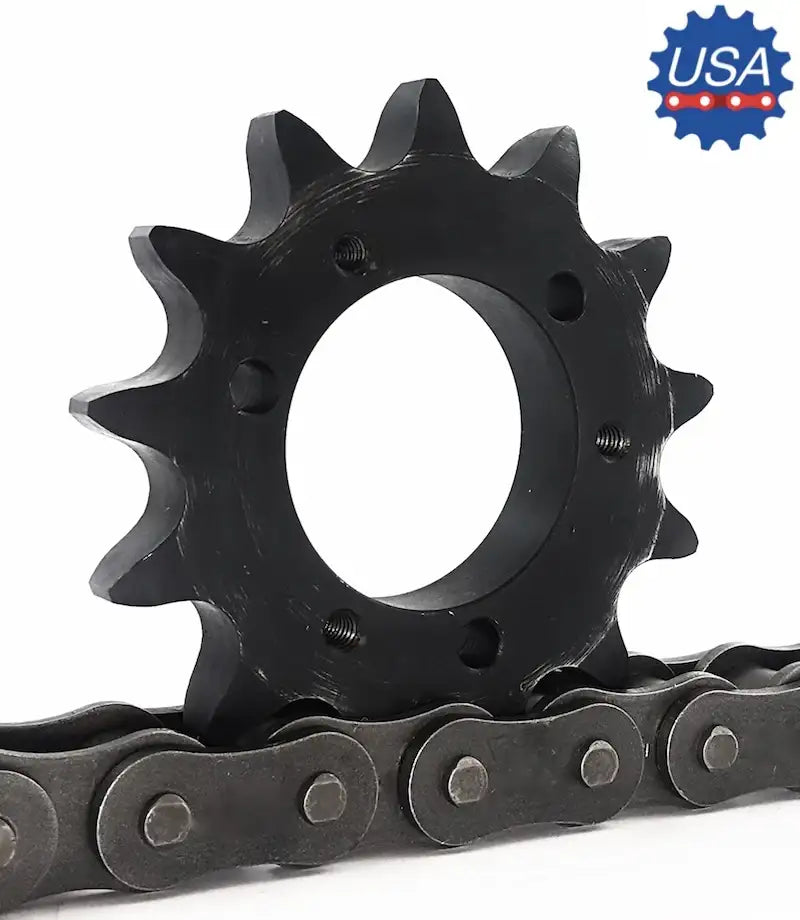

This 140SF12 sprocket is a durable, high quality, and precision sprocket with 12 hardened teeth that is manufactured to accept a SF bushing. Sprockets that have hardened teeth last longer, perform better, and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #140 roller chain and sprocket. Meeting strict ANSI Standards prevents premature wear or breakage as well as making it directly interchangeable with other brands. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early corrosion. 140SF12 sprockets are manufactured to accept a SF type QD bushing which, we also stock with a wide range of bore sizes. Additionally we offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large quantity request please contact us and we will be happy to assist you.

140SF12 Sprocket Dimensions

140SF12 Sprocket (QD Type)
  • Sprocket Size: 140SF12
  • Tooth Count: 12
  • Bushing Type: SF
  • Outside Diameter: 7.580"
  • Pitch Diameter: 6.762"
  • Sprocket Type: B
  • Maximum Bore: 2-15/16"
  • Dimension (L1): 2-1/4"
  • Dimension (L2): 2-1/4"
  • Dimension (C): 4-5/8"
  • Dimension (Y): 1-5/16"
  • Dimension (G): 21/64"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.924"
  • Bushing Weight: 3.0 LBS
  • Sprocket Weight: 7.4 LBS
  • Sprocket Size: 140SF12
  • Tooth Count: 12
  • Bushing Type: SF
  • Outside Diameter: 7.580"
  • Pitch Diameter: 6.762"
  • Sprocket Type: B
  • Maximum Bore: 2-15/16"
  • Dimension (L1): 2-1/4"
  • Dimension (L2): 2-1/4"
  • Dimension (C): 4-5/8"
  • Dimension (Y): 1-5/16"
  • Dimension (G): 21/64"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.924"
  • Bushing Weight: 3.0 LBS
  • Sprocket Weight: 7.4 LBS
