16B Nickel Plated Roller Chain Features
16B Nickel Plated Roller Chain Specifications

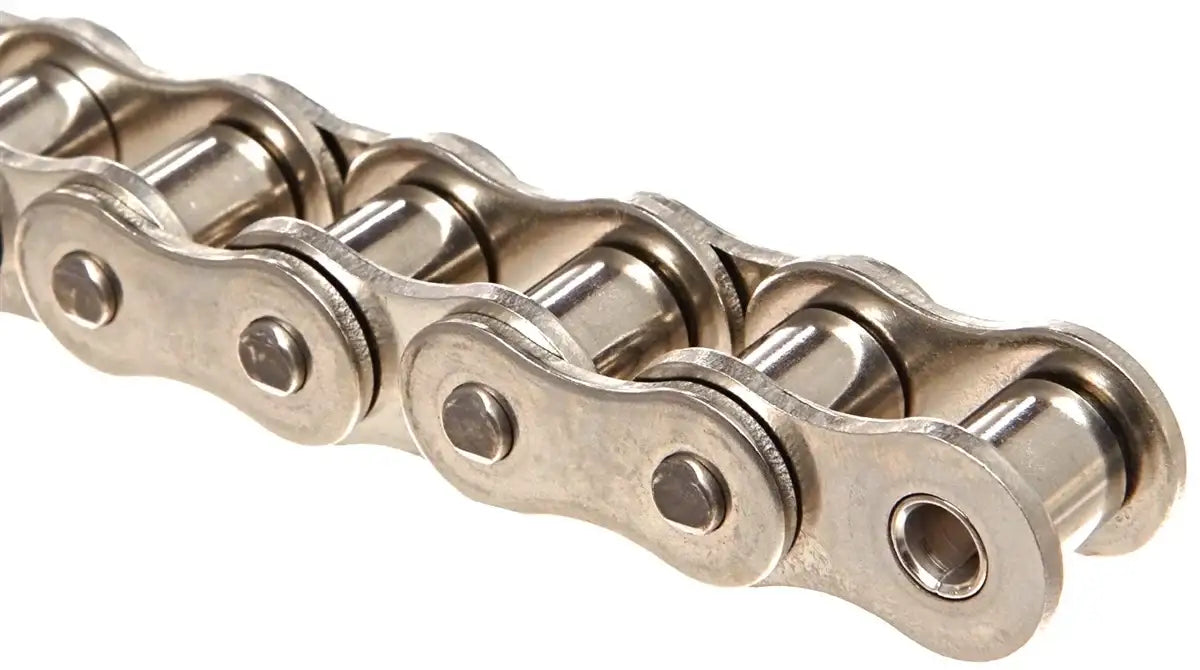

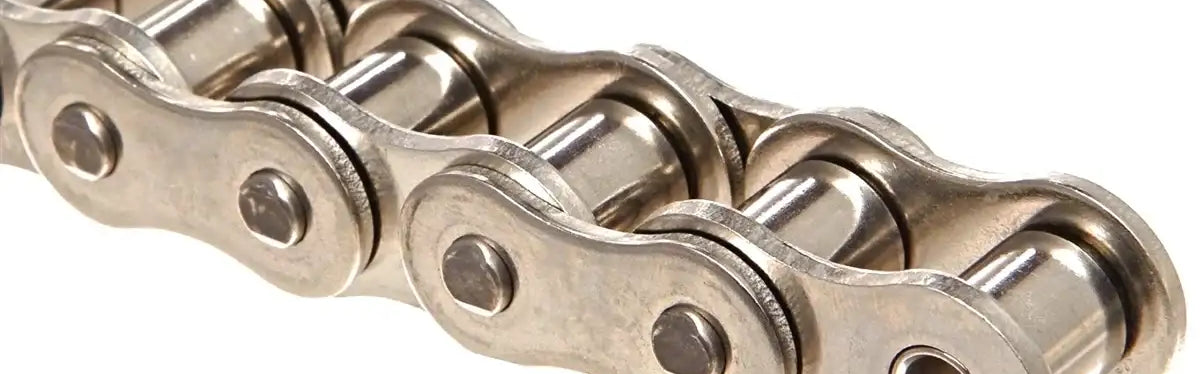

16B nickel plated roller chain offers high strength, durability, great performance, and conforms to all ISO standards. The nickel plating on this chain has been done to each component before being assembled and then inspected to ensure a full coverage and a smooth surface to for the longest working life possible and to prevent chemical attack along with stress cracking. Nickel plated roller chain is very useful in humid and slightly corrosive applications where a normal roller chain won't hold up. 16B nickel plated roller chain will run on standard 16B sprockets and has the same dimensions as 16B roller chain. Additionally we offer a full line of 16B attachments, sprockets, and accessories!

Dimensions:
16B Nickel Plated Roller Chain
  • Part Number: 16BNP
  • Pitch (P): 1.000"
  • Transverse Pitch (K): 1.255"
  • Roller Link Width (W): 0.670"
  • Roller Diameter (R): 0.625"
  • Pin Diameter (D): 0.326"
  • Overall Width (F): 1.500"
  • Plate Thickness (T1): 0.126"
  • Plate Thickness (T2): 0.157"
  • Plate Height (H): 0.819"
  • Weight: 1.717 LBS/FT
