Roller Chain > Standard Roller Chains > Multiple Strand Roller Chain > Six Strand Roller Chain

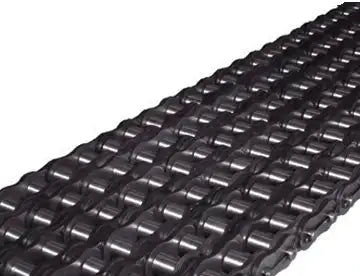

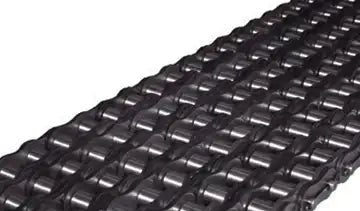

180-6 Roller Chain - 180-6 Six Strand Chain
Login to Request a Quote
180-6 Roller Chain Dimensions

| Chain Size | Pitch (P) | Roller Width (W) | Roller Diameter (D) | Overall Width (A) | Plate Height (H) | Plate Thickness (T) | Pin Diameter (E) | Avg. Ultimate Strength | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|---|
| 180-6 | 2.250" | 1.402" | 1.406" | 16.04" | 2.067" | 0.283" | 0.687" | 480,000 LBS | 53.3 LBS |


| Chain Size | Pitch (P) | Roller Width (W) | Roller Diameter (D) | Overall Width (A) | Plate Height (H) | Plate Thickness (T) | Pin Diameter (E) | Avg. Ultimate Strength | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|---|
| 180-6 | 2.250" | 1.402" | 1.406" | 16.04" | 2.067" | 0.283" | 0.687" | 480,000 LBS | 53.3 LBS |
