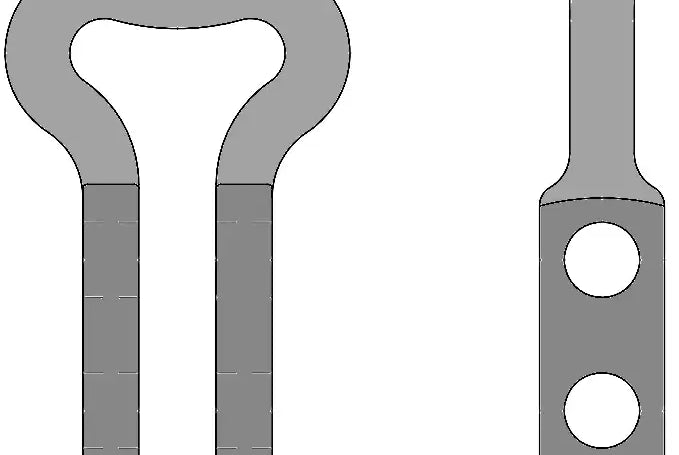

18X64 Double Shackle | Round Link Double Bolt Shackle
Note:
Custom Cut to Length Chain Also Available
SKU: 18X64-DBL-SHACKLE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
18X64 Double Shackle | Round Link Double Bolt Shackle Features
18X64 Double Shackle | Round Link Double Bolt Shackle Specifications
Our 18X64 double bolt shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific double bolt shackle is particularly made for a 18X64 round link chain and has two bolt holes of 0.63". It is important to note that when installing a 18X64 double bolt shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 18X64 double bolt shackles, contact our customer support team, and we will gladly assist you!

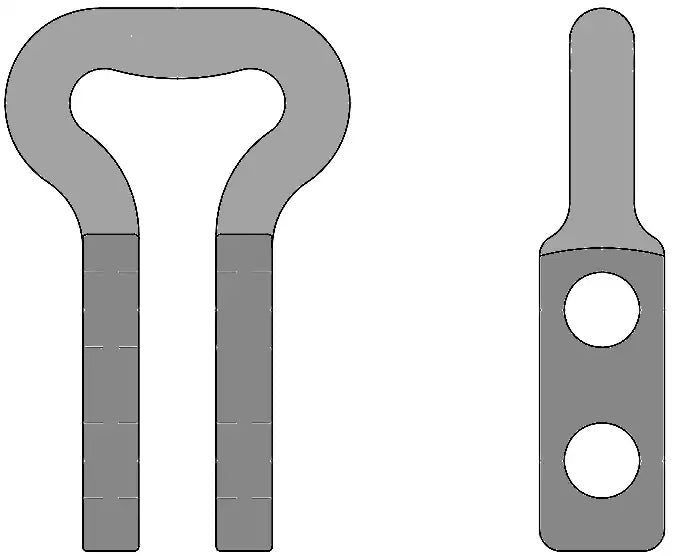

18X64 double Bolt Shackle Dimensions
- Chain Size: 18X64
- Dimension (A-Bolt): 0.63"
- Dimension (B): 2.00"
- Dimension (C): 0.88"
- Dimension (D): 1.25"
- Dimension (E): 1.75"
- Weight: 2.20 LBS
- Chain Size: 18X64
- Dimension (A-Bolt): 0.63"
- Dimension (B): 2.00"
- Dimension (C): 0.88"
- Dimension (D): 1.25"
- Dimension (E): 1.75"
- Weight: 2.20 LBS
