By Application > Mining Chain & Sprockets > High-Strength Mining Round Link Chain
18X64 Single Shackle | Round Link Single Bolt Shackle - Type 1
Note:
Custom Cut to Length Chain Also Available
SKU: 18X64-SGL-SHACKLE-1
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
18X64 Single Shackle | Round Link Single Bolt Shackle - Type 1 Features
18X64 Single Shackle | Round Link Single Bolt Shackle - Type 1 Specifications
Our type-1 18X64 single bolt shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific single bolt shackle is particularly made for a 18X64 round link chain and has a bolt hole of 0.75". It is important to note that when installing a 18X64 single bolt shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 18X64 single bolt shackles, contact our customer support team, and we will gladly assist you!

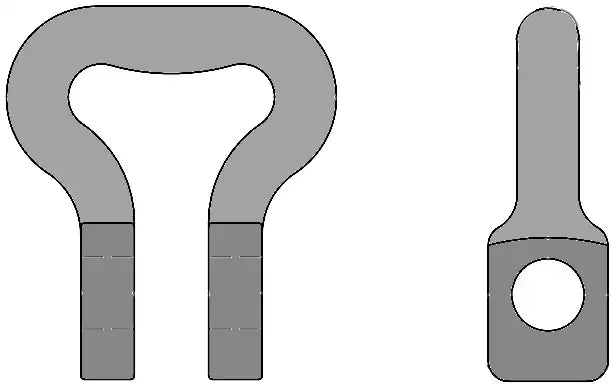

Type-1 18X64 Single Bolt Shackle Dimensions
- Chain Size: 18X64 (Type 1)
- Dimension (A-Bolt): 0.63"
- Dimension (B): 2.00"
- Dimension (C): 0.88"
- Dimension (D): 1.50"
- Weight: 1.60 LBS
- Chain Size: 18X64 (Type 1)
- Dimension (A-Bolt): 0.63"
- Dimension (B): 2.00"
- Dimension (C): 0.88"
- Dimension (D): 1.50"
- Weight: 1.60 LBS
