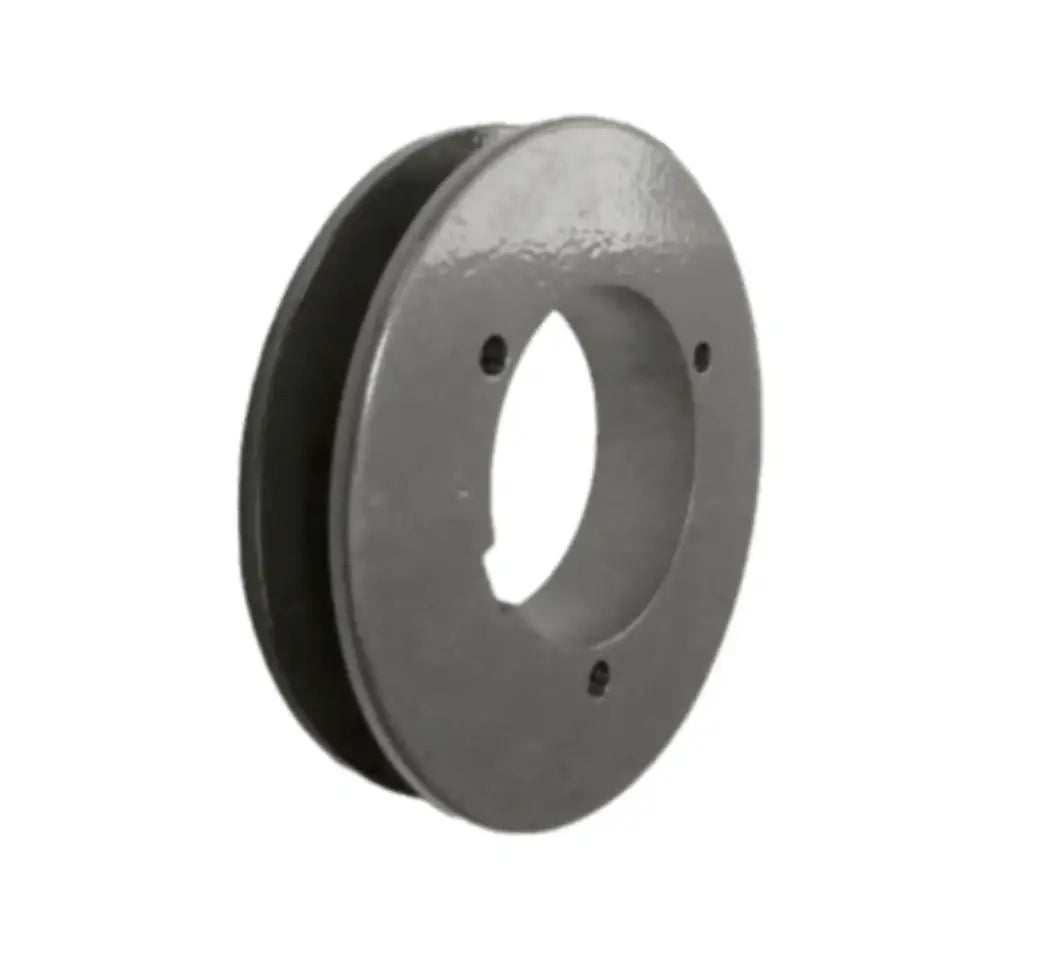

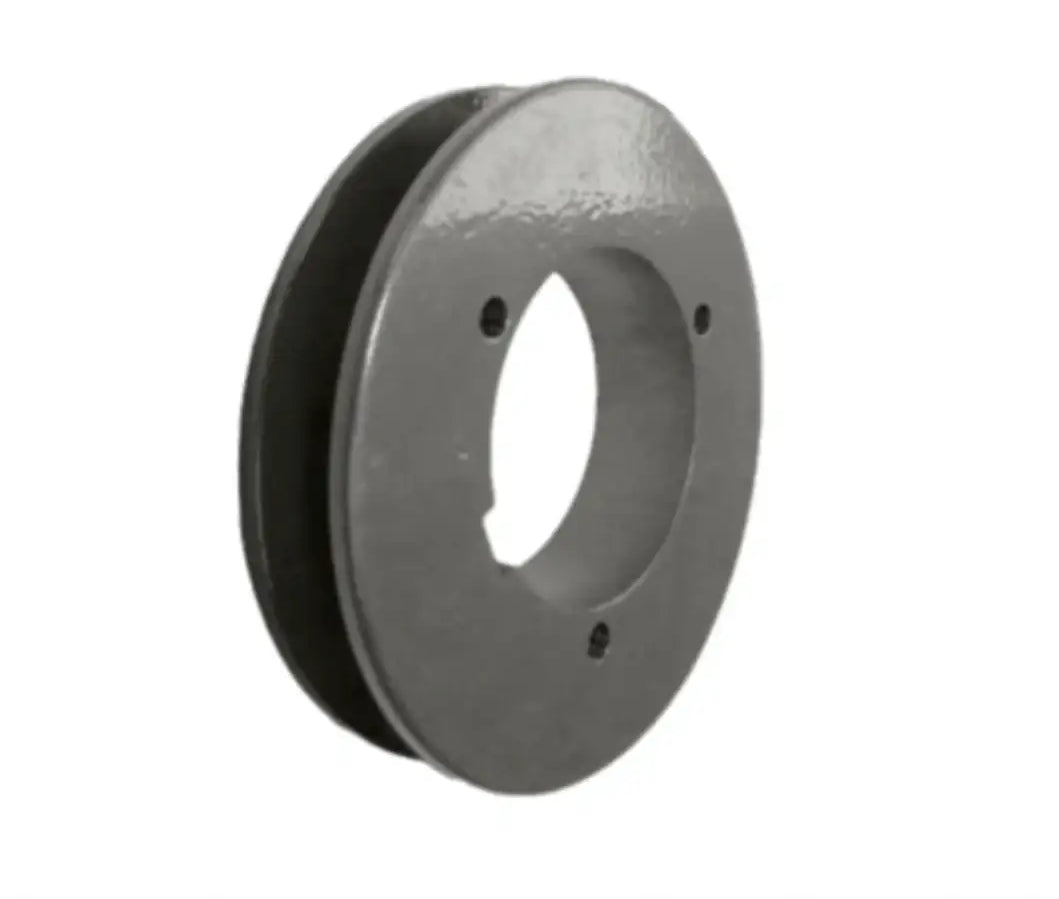

1B5V54 Sheave 5.68" OD

This 1B5V54 Sheave uses a B bushing, is directly interchangeable with other manufacturers, is 4.88" in diameter, and is manufactured in accordance with ARPM Standards for safe operation. The primary benefit with this sheave is that B5V-series sheaves you can use an extensively wide range of v-belts like; 4L, A, AX, 5L, B, BX, 5V, and 5VX. What separates this 1B5V54 sheave from the others is that it is made using a high strength cast iron, is phosphate coated, painted, and balanced at the factory. Using the high-strength cast iron grade that we do offers a higher tensile strength and is more wear resistant than the more commonly used grades. While the phosphate coated and then painted finish adds corrosion resistance to the 1B5V54 sheave. Then, because this sheave is balanced at the factory it runs smoother which gives bearings and other components of the equipment a longer working life. Using a taper bushed style sheave is beneficial because it makes the completed part a two-piece assembly which means if only one piece breaks you don't have to replace the entire assembly. Additionally, we stock a full line of premium 4L belts, A belts, AX belts, 5L belts, B belts, BX belts, 5V belts, 5VX belts, P1 bushing, shafting, key-stock, electric motors, gearboxes, bearings, and much more!

1B5V54 Sheave Dimensions

• Sheave Size: 1B5V54
• Datum (A) Belts: 5.0"
• Datum (B) Belts: 5.4"
• Datum (5V) Belts: 5.5"
• Outside Diameter: 5.68"
• Bushing Used: B
• Dimension (OL): 2-3/16"
• Face Width: 1"
• Weight: 4.1 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information on a single groove 1B5V54 sheave, or to get pricing and availability on the accompanying belts/ B bushing, please contact us and we will be happy to assist you.
