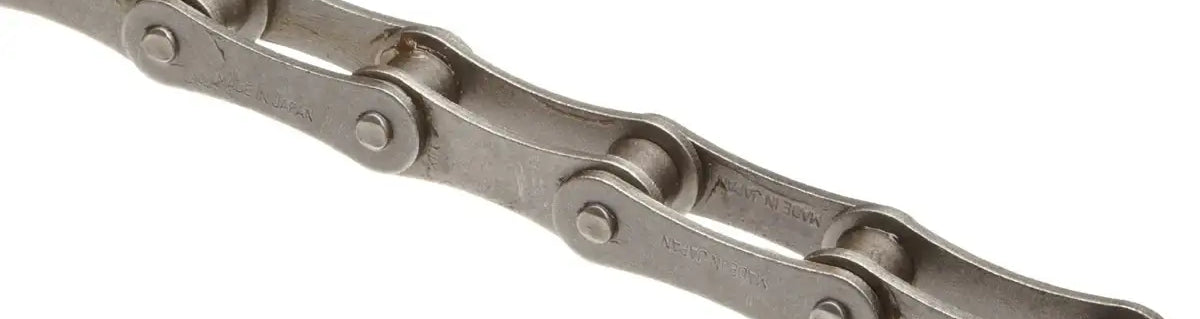

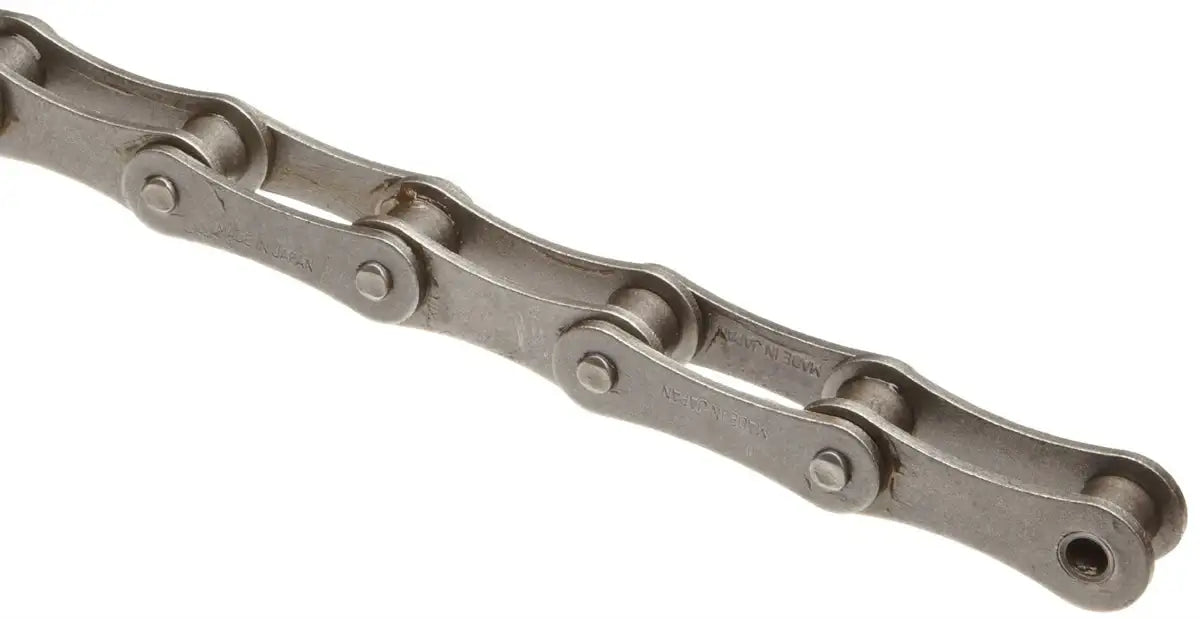

212B Roller Chain - 10ft Box | Double Pitch 212B-1 Chain
Login to Request a Quote

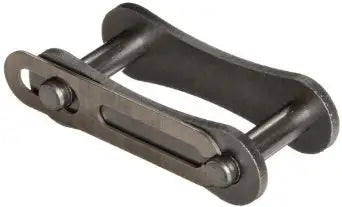

212B Roller Chain is a double pitch metric double pitch chain manufactured in accordance with DIN 8181 (ISO 1275) dimensional and material standards. More specifically our 212B chain is made from high-quality carbon steel and features heat-treated pre-stressed components. This combination produces a roller chain that supplies a long working life, high-strength, and overall superb application performance. 212B-1 chain is the double-pitch version of 12B chain, simply meaning that it offers all the same dimensions and performance factors as its single-pitch counterpart with the exception of the 38.10mm pitch (center of one pin to the center of the next) which is double that of the 12B chain. The standard packaging of this chain is a 10ft box including a master link, but 5-meter boxes are also available upon request. Besides the chain, we also supply a full line of 212B sprockets and 212B attachments. For more information please contact our customer support team and we will be happy to assist you.
212B Roller Chain Dimensions
- Size: 212B
- Pitch (P): 38.100mm
- Inner Link Width (b1): 11.68mm
- Roller Diameter (d1): 12.07mm
- Pin Diameter (d2): 5.72mm
- Plate Height (g): 16.0mm
- Plate Thickness (s1/s2): 1.9mm
- Pin Length (l1): 22.5mm
- Overall Width of Connecting Link (a): 25.2mm
- Breaking Load: 30.345 kN
- Weight: 0.23 kG/ ft
- Size: 212B
- Pitch (P): 38.100mm
- Inner Link Width (b1): 11.68mm
- Roller Diameter (d1): 12.07mm
- Pin Diameter (d2): 5.72mm
- Plate Height (g): 16.0mm
- Plate Thickness (s1/s2): 1.9mm
- Pin Length (l1): 22.5mm
- Overall Width of Connecting Link (a): 25.2mm
- Breaking Load: 30.345 kN
- Weight: 0.23 kG/ ft
