FV140C160 Chain | DIN Standard FV140C160 Metric Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 2224-FV140C160-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
FV140C160 Chain | DIN Standard FV140C160 Metric Chain Features
FV140C160 Chain | DIN Standard FV140C160 Metric Chain Specifications

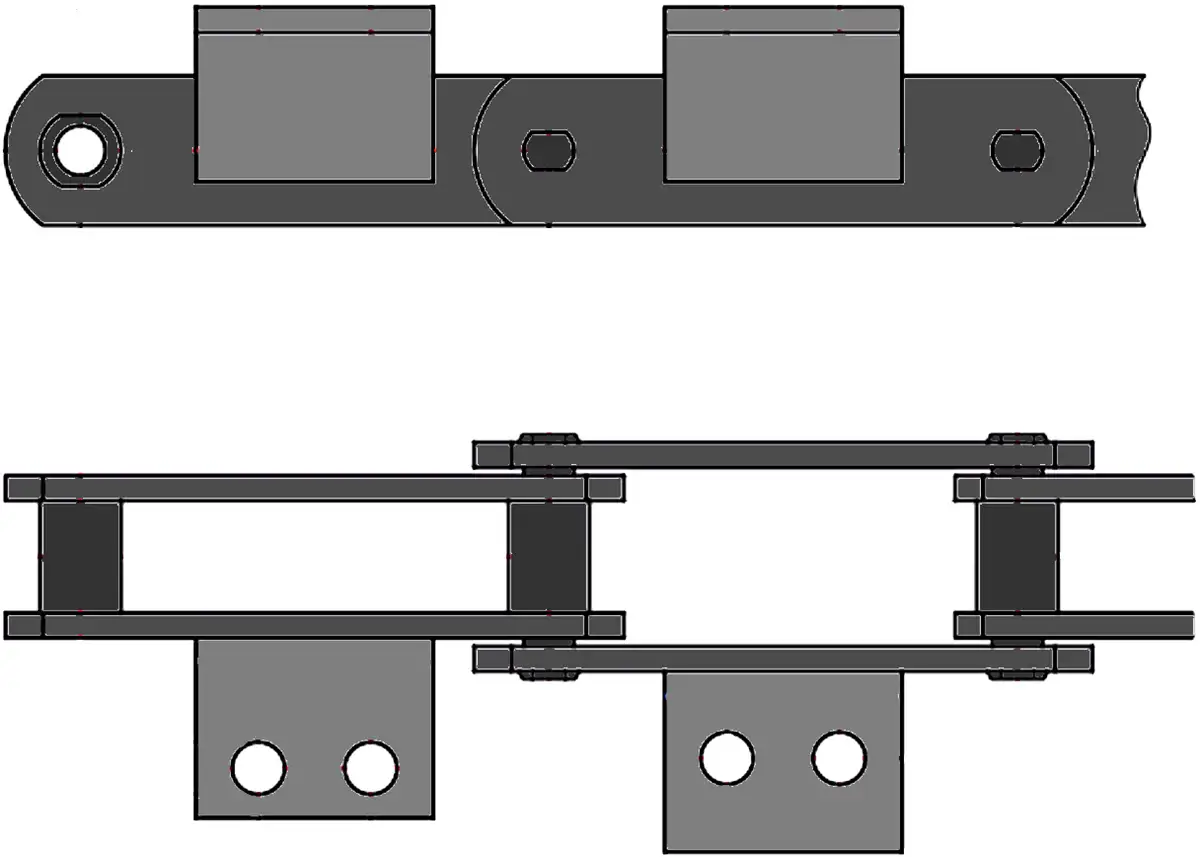

FV140C160 Chain is a metric conveyor series chain that is manufactured to a very specific German DIN Standard dimensionally and material wise. More specifically FV140C160 conveyor chain is C-style roller type conveyor chain used in lumber mills, water treatment, aggregate, and as a base conveyor chain in many other applications. We also supply a full range of sprockets and attachments for FV140C160 chain. Please note it is important to utilize proper lubrication to increase the working life and performance of these chains, we also offer a heat-treated pin option for more demanding applications. For additional information or to get a quote please contact us and we will be happy to assist you.
FV140C160 Chain Dimensions
- Size: FV140C160
- Roller Style: C
- Pitch (P): 160mm
- Working Load: 145kN
- Working Load With Heat Treated Pins: 180kN
- Overall Width (F): 71.5mm
- Roller Diameter (D2): 60mm
- Bushing Diameter (D5): 26mm
- Distance Between Sidebars (L): 35mm
- Sidebar Thickness (S): 6mm
- Sidebar Height (H): 45mm
- Pin Diameter (D6): 18mm
- Size: FV140C160
- Roller Style: C
- Pitch (P): 160mm
- Working Load: 145kN
- Working Load With Heat Treated Pins: 180kN
- Overall Width (F): 71.5mm
- Roller Diameter (D2): 60mm
- Bushing Diameter (D5): 26mm
- Distance Between Sidebars (L): 35mm
- Sidebar Thickness (S): 6mm
- Sidebar Height (H): 45mm
- Pin Diameter (D6): 18mm
