Roller Chain > More Roller Chains > Double Pitch Roller Chain > Double Pitch Metric Roller Chain > 224B Metric Roller Chain

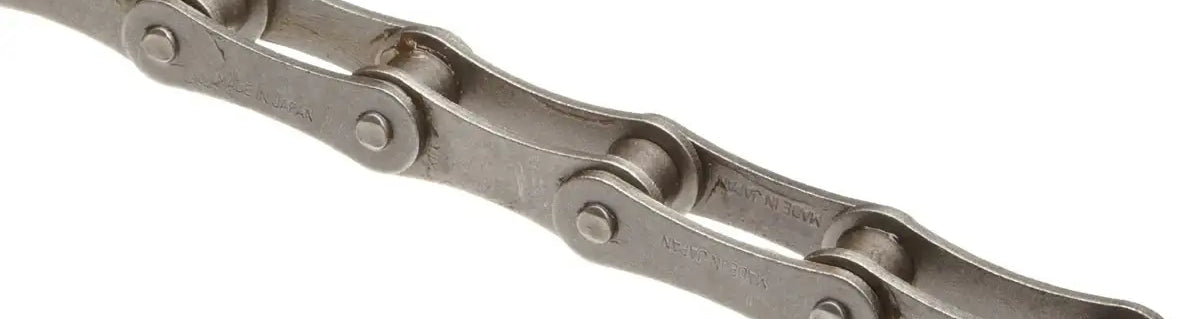

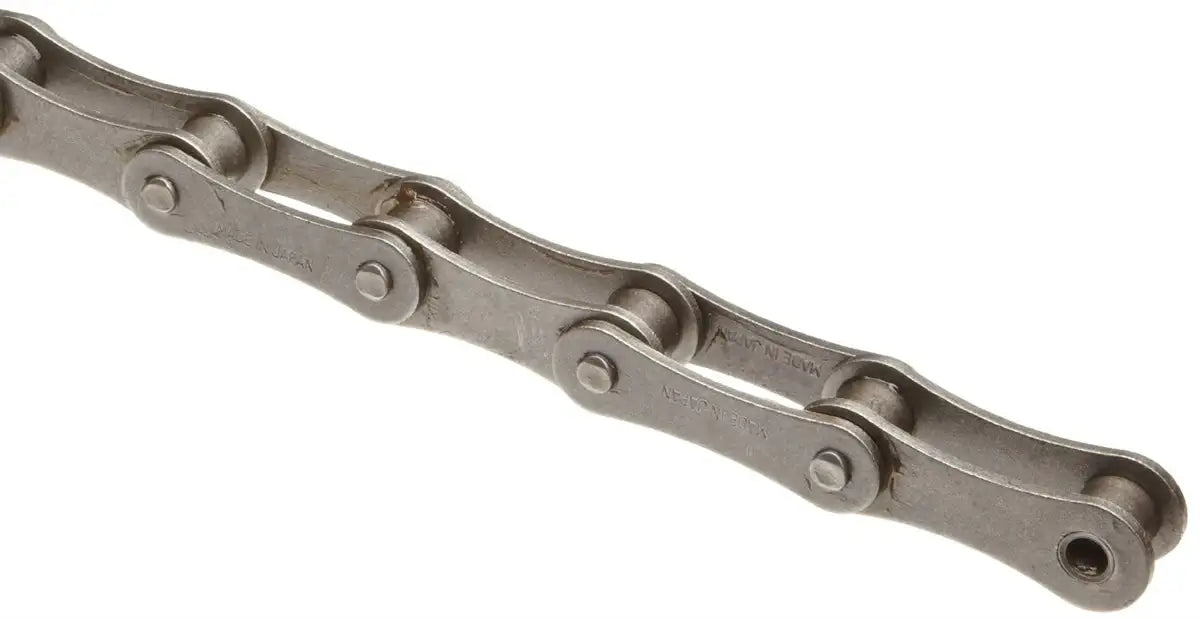

224B Roller Chain - 10ft Box | Double Pitch 224B-1 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 224B-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
224B Roller Chain - 10ft Box | Double Pitch 224B-1 Chain Features
224B Roller Chain - 10ft Box | Double Pitch 224B-1 Chain Specifications

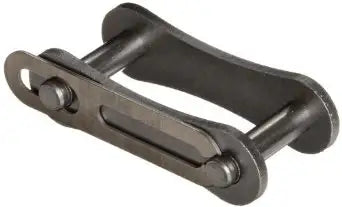

224B Roller Chain is a double pitch metric double pitch chain manufactured in accordance with DIN 8181 (ISO 1275) dimensional and material standards. More specifically our 224B chain is made from high-quality carbon steel and features heat-treated pre-stressed components. This combination produces a roller chain that supplies a long working life, high-strength, and overall superb application performance. A 224B-1 chain is the double-pitch version of 24B chain, simply meaning that it offers all the same dimensions and performance factors as its single-pitch counterpart with the exception of the 76.2mm pitch (center of one pin to the center of the next) which is double that of the 24B chain. The standard packaging of this chain is a 10ft box including a master link, but 5-meter boxes are also available upon request. Besides the chain, we also supply a full line of 224B sprockets and 224B attachments. For more information please contact our customer support team and we will be happy to assist you.
224B Roller Chain Dimensions
- Size: 224B
- Pitch (P): 76.200mm
- Inner Link Width (b1): 25.40mm
- Roller Diameter (d1): 25.40mm
- Pin Diameter (d2): 14.63mm
- Plate Height (g): 33.2mm
- Plate Thickness (s1): 6.0mm
- Plate Thickness (s2): 4.8mm
- Pin Length (l1): 53.4mm
- Overall Width of Connecting Link (a): 57.8mm
- Breaking Load: 160.00 kN
- Weight: 1.43 kG/ ft
- Size: 224B
- Pitch (P): 76.200mm
- Inner Link Width (b1): 25.40mm
- Roller Diameter (d1): 25.40mm
- Pin Diameter (d2): 14.63mm
- Plate Height (g): 33.2mm
- Plate Thickness (s1): 6.0mm
- Plate Thickness (s2): 4.8mm
- Pin Length (l1): 53.4mm
- Overall Width of Connecting Link (a): 57.8mm
- Breaking Load: 160.00 kN
- Weight: 1.43 kG/ ft
