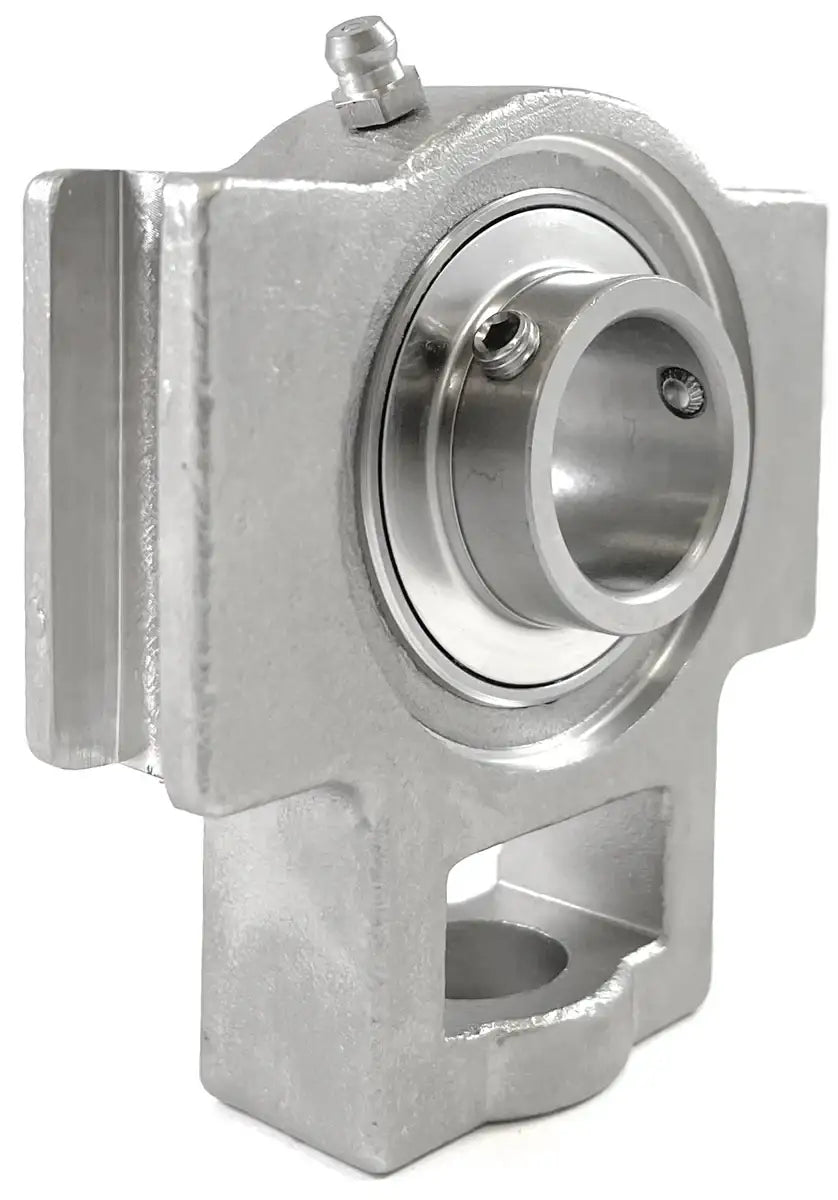

SHCSTM209-28 Stainless Steel Bearing | 1-3/4" Take-Up Bearing

This high-quality 1-3/4" bore SHCSTM209-28 stainless steel bearing is manufactured from premium food-grade stainless to C3 precision tolerances and is a stainless steel take-up bearing with an eccentric locking collar and a wide inner ring. Take-up bearings are designed with slots to set inside of a take-up frame, complete assemblies are often used for tensioning or adjusting conveyor systems. Securing the bearing onto the shaft is an easy task with an eccentric locking collar. These bearings are capable of running run in food grade and highly corrosive or abrasive applications as well as handle daily washdowns. The bearings superior design features put this bearing above others in terms of durability and performance. More specifically, this SHCSTM209-28 bearing utilizes a solid base design that eliminates crevices where contaminants like to hide and adds strength to the unit over bearings without a solid base. It also ships with a 25-35% fill of premium Mobil FM222 grease. It features an outer ring anti-rotation device that allows for alignment correction without internal binding and prevents bearings from spinning within the housing, drastically increasing the unit's overall life. Mariner stainless steel mounted bearings also use investment cast housings that are much smoother and superior to the industry standard sand-cast housing and make cleanings much more effective. Additionally, the bearing unit features a high-quality food-grade 100% silicone housing that is capable of handling higher operating temperatures than the standard nitrile seals; it also has an external flinger to prevent seal damage from washdown and keeps contaminants away from internal components, the bearing is also machined for use with end caps. For pricing and availability or additional information on stainless steel SHCSTM209-28 1-3/4" bearings, contact our customer service team, and we will be happy to assist you!

SHCSTM209-28 Bearing Materials

• Housing - AISI 304 Stainless Steel
• Bearing Races - AISI 440C Stainless Steel
• Balls - AISI 440C Stainless Steel
• Flinger - AISI 302 Stainless Steel

SHCSTM209-28 Stainless Steel Bearing Dimensions

• Bearing Part #: SHCSTM209-28
• Shaft Diameter (d): 1-3/4"
• Dimension (O): 0.75"
• Dimension (G): 0.67"
• Dimension (P): 3.27"
• Dimension (Q): 1.94"
• Dimension (S): 1.13"
• Dimension (B): 3.27"
• Dimension (K): 0.63"
• Dimension (E): 4.02"
• Dimension (A): 4.61"
• Dimension (W): 5.71"
• Dimension (J): 1.93"
• Dimension (L): 1.38"
• Dimension (H): 3.43"
• Dimension (Bi): 2.2165"
• Dimension (N): 0.8425"
• Dimension (M): 0.8425"
• Dynamic Load Rating: 5,924 LBS
• Static Load Rating: 3,507 LBS
• Bearing Insert: SHC209-28
• Housing Size: STM209
• Weight: 6.9 LBS
