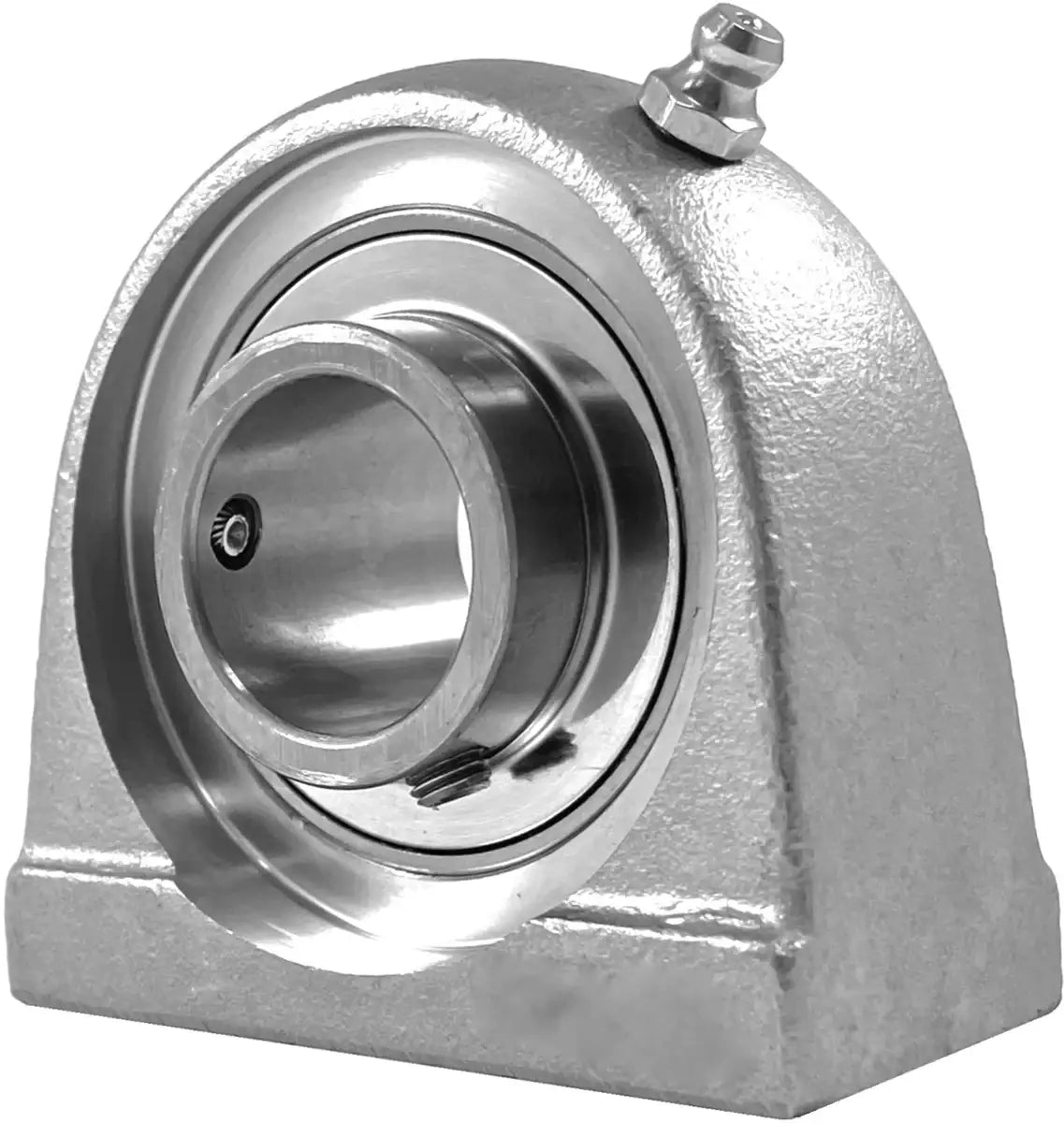

SNCSPAM205-14 Stainless Steel Bearing | 7/8" Tapped Base

This high-quality stainless steel SNCSPAM205-14 tapped base pillow block bearing with a 7/8" inside diameter is a normal duty bearing with an eccentric locking collar manufactured from premium grades of stainless steel to class C3 precision accuracy tolerances by Mariner. The eccentric locking collar makes it an easy task for securing the bearing onto the shaft. It's designed to run in food grade and highly corrosive or abrasive applications and to handle daily washdowns. The bearings superior design features put this bearing above others in terms of durability and performance. More specifically, this SNCSPAM205-14 bearing utilizes a solid tapped base design for easy mounting in any position, the solid base ensures durability over the entire life of the bearing. It also ships with a 25-35% fill of premium Mobil FM222 grease. It features an outer ring anti-rotation device that allows for alignment correction without internal binding and prevents bearings from spinning within the housing, drastically increasing the unit's overall life. Mariner stainless steel tapped base bearings also uses investment cast housings that are much smoother and superior to the industry standard sand-cast housing and make cleanings much more effective. Additionally, the bearing unit features a high-quality food-grade 100% silicone housing that is capable of handling higher operating temperatures than the standard nitrile seals; it also has an external flinger to prevent seal damage from washdown and keeps contaminants away from internal components, the bearing is also machined for use with end caps. For pricing and availability or additional information on stainless steel SNCSPAM205-14 7/8" bearings contact our customer service team, and we will be happy to assist you!

SNCSPAM205-14 Bearing Materials

• Housing - AISI 304 Stainless Steel
• Bearing Races - AISI 440C Stainless Steel
• Balls - AISI 440C Stainless Steel
• Flinger - AISI 302 Stainless Steel

SNCSPAM205-14 Bearing Dimensions

• Bearing Part #: SNCSPAM 205-14
• Shaft Diameter (d): 7/8
• Dimension (H): 1.438"
• Dimension (A): 3.00"
• Dimension (E): 2.000"
• Dimension (B): 1.50"
• Dimension (R): 0.50"
• Dimension (G): 0.47"
• Dimension (W): 2.80"
• Dimension (Bi): 1.6220"
• Dimension (N): 0.5630"
• Dimension (M): 0.6850"
• Thread Size (T): 3/8-16"
• Dynamic Load Rating: 2,542 LBS
• Static Load Rating: 1,349 LBS
• Bearing Insert: SNC 205-14
• Housing Size: SPAM 205
• Weight: 2.1 LBS
