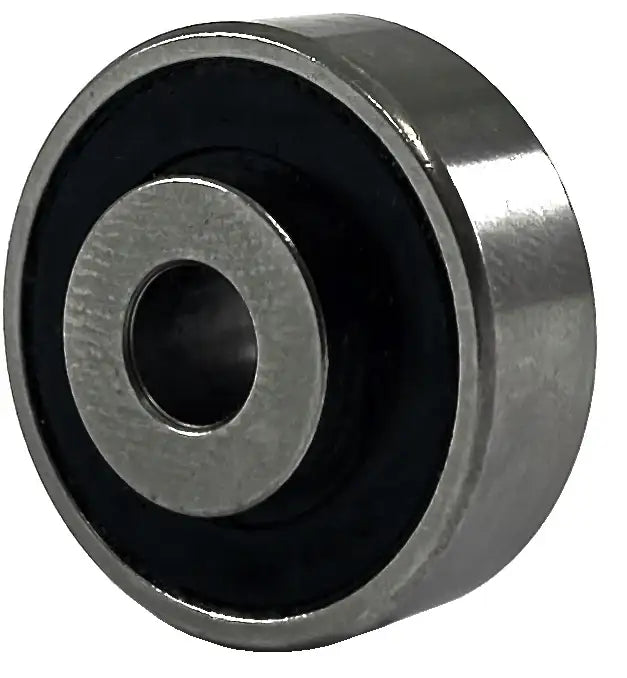

WC88507 Ball Bearing | WC88507 Bearing - 1.3780"x2.8346"x0.827"

This WC88507 ball bearing is a high-precision premium quality deep groove 1.3780"x2.8346"x0.827" ball bearing made to ABEC 3 precision standards from AXIS that is sealed on both sides. What sets this WC88507 bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing has a micron deviation from a nominal of 20.000mm of -8 micrometres. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometres. In simple terms, the more precision a bearing is, the better it will perform in any given application. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, which also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the WC88507 bearing features raceways that are precision honed to a superb finish.

More specifically, WC88507 ball bearings are also commonly known as felt series bearings because manufactures use to use felt seals in this bearing type, however, the new standard is to use rubber for the seal material. WC88507 bearings are found in a wide range of industrial, automation, and electric motor applications. They are designed to reduce rotational friction and support loads. The load is spread evenly across the grade 10 balls and as the inner bearing race rotates so do the balls. For additional information or to get a quote on a WC88507 bearing contact our customer support team and we will be happy to assist you!

WC88507 Ball Bearing Dimensions

• Bearing Size: WC88507
• Dimension (d): 35mm
• Dimension (d): 1.3780"
• Dimension (D): 72mm
• Dimension (D): 2.8346"
• Dimension (B1): 0.827"
• Dimension (B2): 0.9843"
• Dynamic Load Rating: 2120 LBS
• Static Load Rating: 1330 LBS
• Limiting Speed (Grease): 3780 RPM
• Weight: 1.65 LBS
