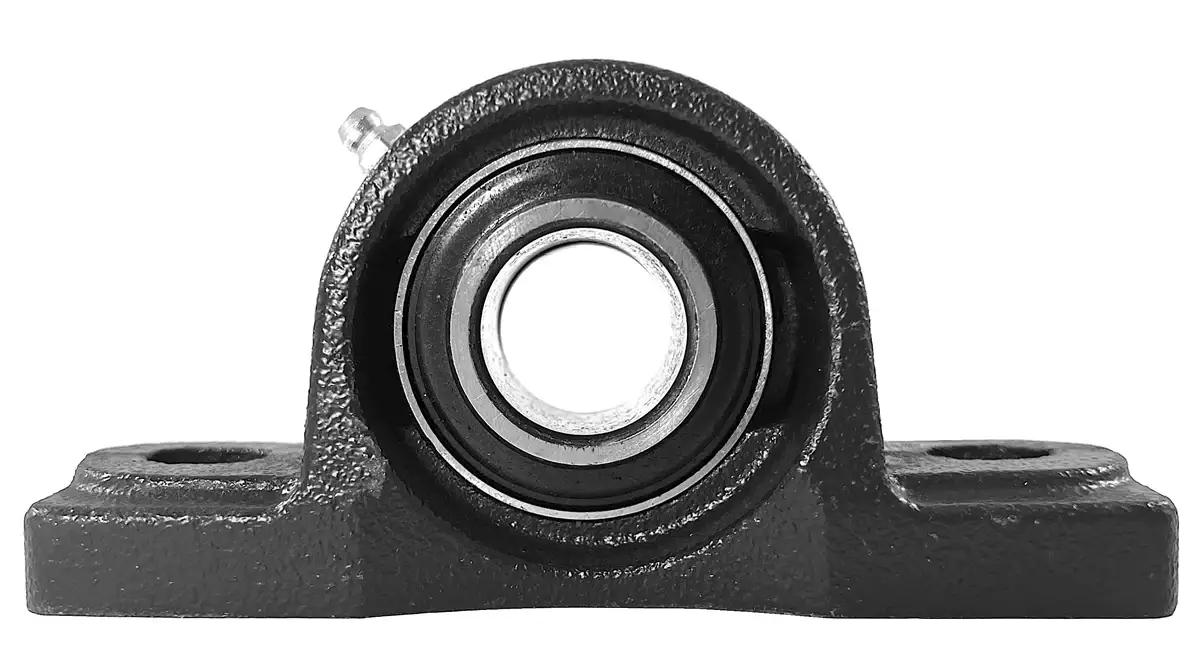

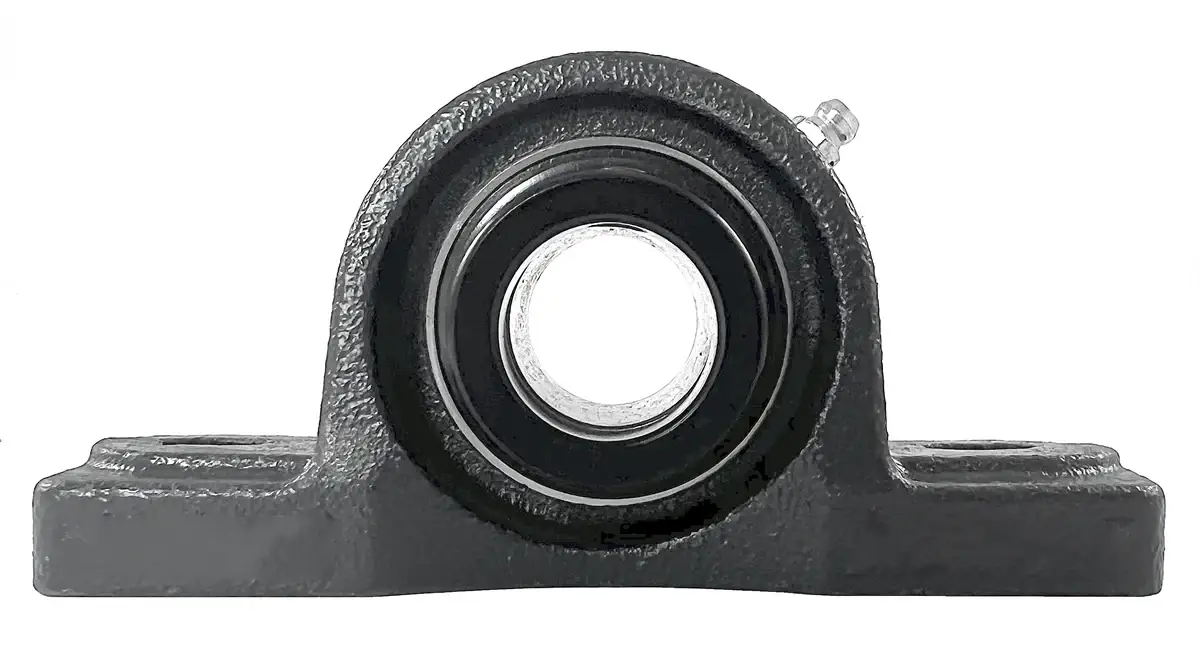

HCAK204 Bearing | 20mm 2-Bolt Eccentric Locking Bearing

HCAK204 bearing is a two-bolt normal duty pillow block bearing with a 20mm bore. It utilizes an eccentric locking collar for securing the beating to a 20mm shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK204 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK204 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK204 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK204 bearings, and we will be happy to assist you!

HCAK204 Bearing Dimensions

• Part #: HCAK 204
• Shaft Diameter (d): 20mm
• Dimension (H): 31.8mm
• Dimension (A): 133.0mm
• Dimension (E): 98.0mm
• Dimension (B): 41.0mm
• Dimension (S2): 16.0mm
• Dimension (S1): 12.0mm
• Dimension (G): 14.3mm
• Dimension (W): 64.0mm
• Dimension (Bi): 43.7mm
• Dimension (N): 17.1mm
• Dimension (M): 17.1mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 12.82
• Static Load Rating (kN): 6.65
• Bearing Insert: HC 204
• Housing Number: AK 204
• Weight (kg): 0.9
