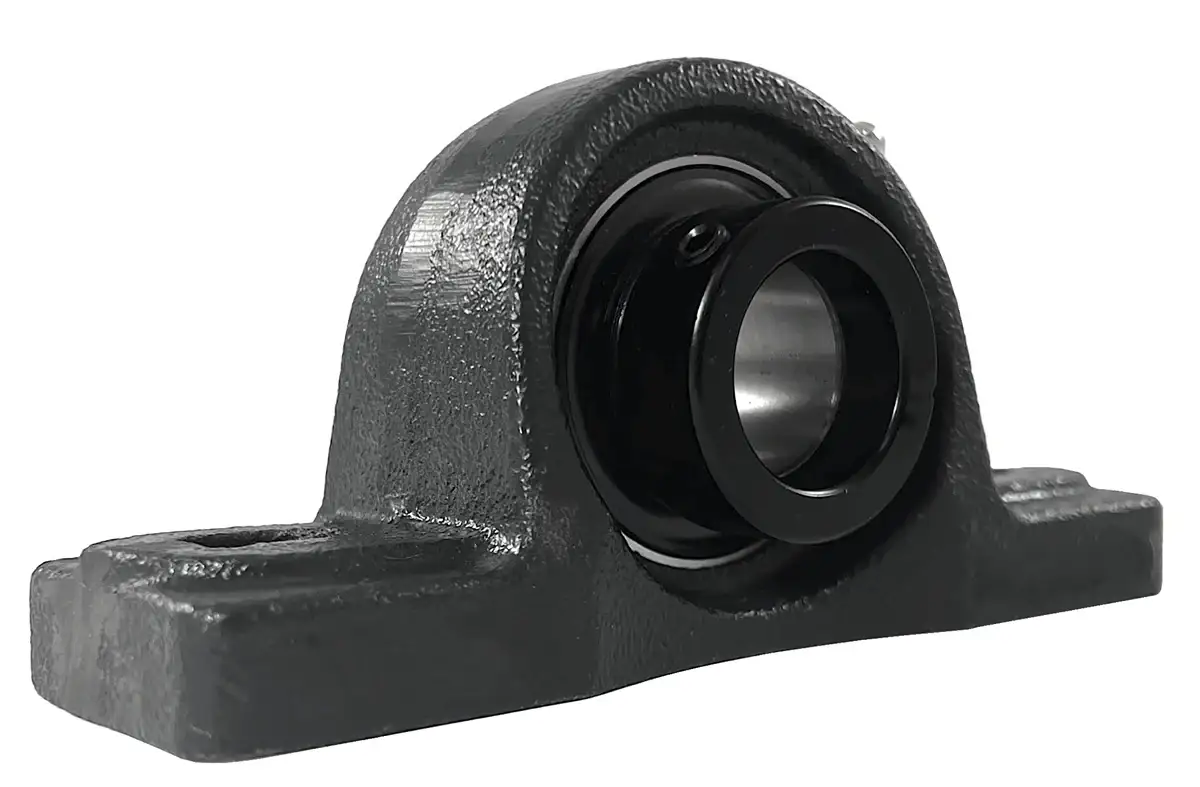

HCAK207-20 Bearing | 1-1/4" 2-Bolt Eccentric Locking Bearing

HCAK207-20 bearing is a two-bolt normal duty pillow block bearing with a 1-1/4" bore. It utilizes an eccentric locking collar for securing the beating to a 1-1/4" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK207-20 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK207-20 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK207-20 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK207-20 bearings, and we will be happy to assist you!

HCAK207-20 Bearing Dimensions

• Part #: HCAK 207-20
• Shaft Diameter (d): 1-1/4"
• Dimension (H): 1.813"
• Dimension (A): 6.56"
• Dimension (E): 5.00"
• Dimension (B): 1.88"
• Dimension (S2): 0.75"
• Dimension (S1): 0.59"
• Dimension (G): 0.75"
• Dimension (W): 3.63"
• Dimension (Bi): 2.0118"
• Dimension (N): 0.7402"
• Dimension (M): 0.7402"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: HC 207-20
• Housing Number: AK 207
• Weight (LBS): 3.8
