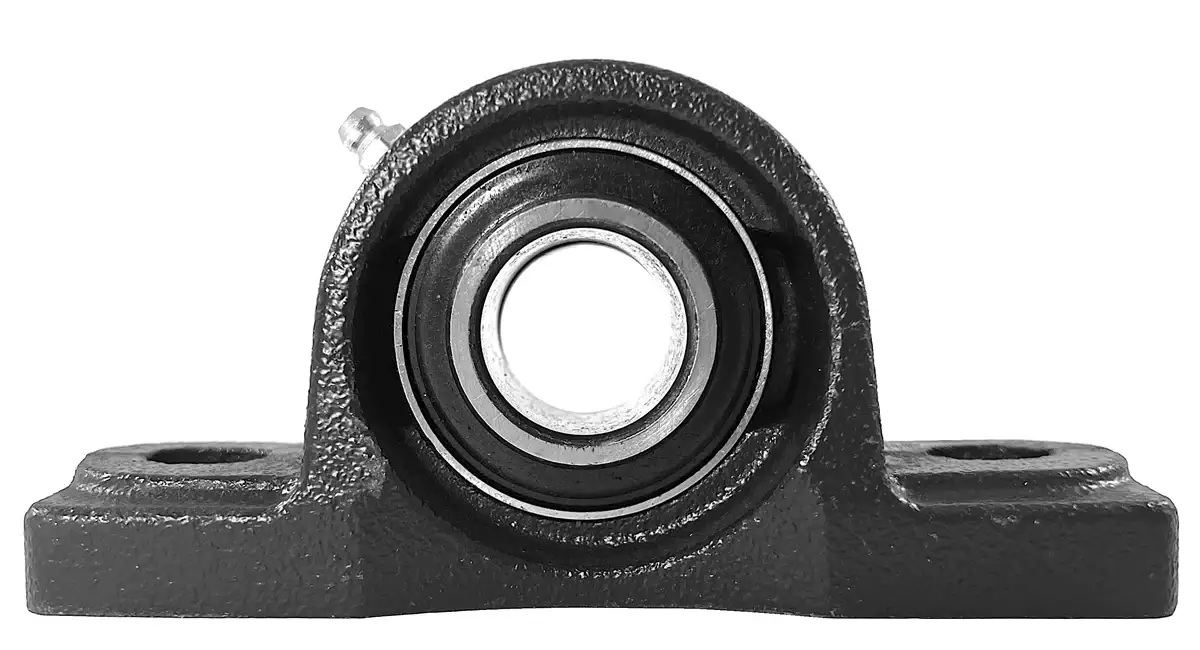

HCAK212-36 Bearing | 2-1/4" 2-Bolt Eccentric Locking Bearing

HCAK212-36 bearing is a two-bolt normal duty pillow block bearing with a 2-1/4" bore. It utilizes an eccentric locking collar for securing the beating to a 2-1/4" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK212-36 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK212-36 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK212-36 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK212-36 bearings, and we will be happy to assist you!

HCAK212-36 Bearing Dimensions

• Part #: HCAK 212-36
• Shaft Diameter (d): 2-1/4
• Dimension (H): 2.688
• Dimension (A): 9.50
• Dimension (E): 7.50
• Dimension (B): 2.50
• Dimension (S2): 0.94
• Dimension (S1): 0.79
• Dimension (G): 1.13
• Dimension (W): 5.44
• Dimension (Bi): 3.0630
• Dimension (N): 1.2165
• Dimension (M): 1.2205
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 10,720
• Static Load Rating (LBS): 7,516
• Bearing Insert: HC 212-36
• Housing Number: AK 212
• Weight (LBS): 10.6
