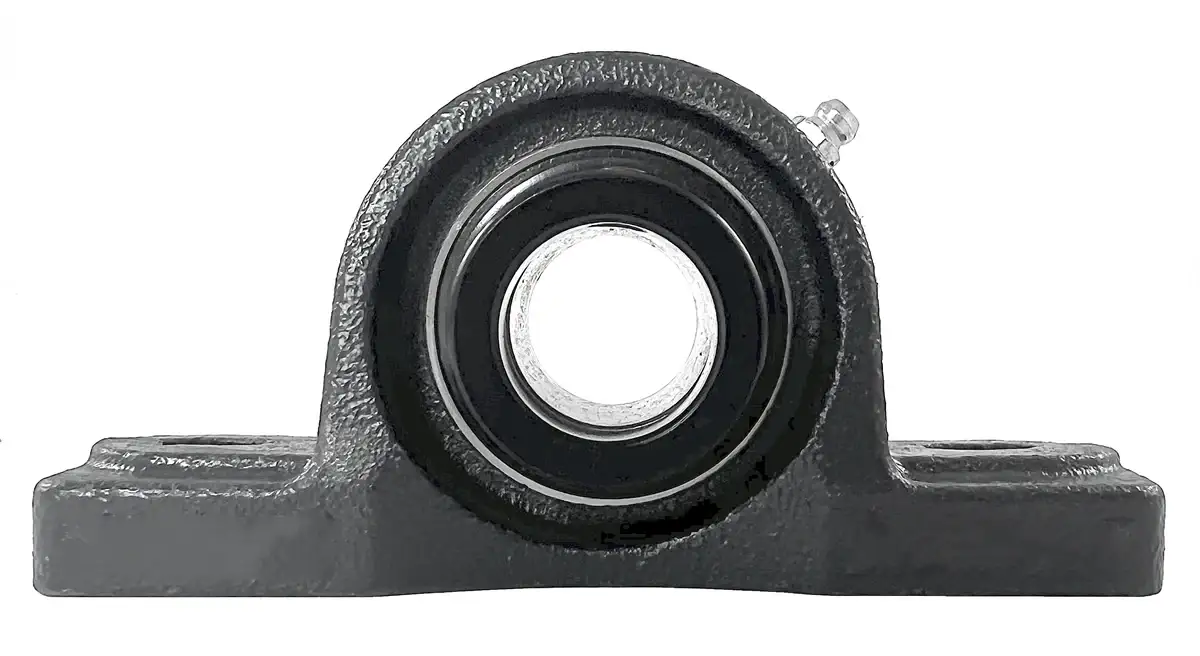

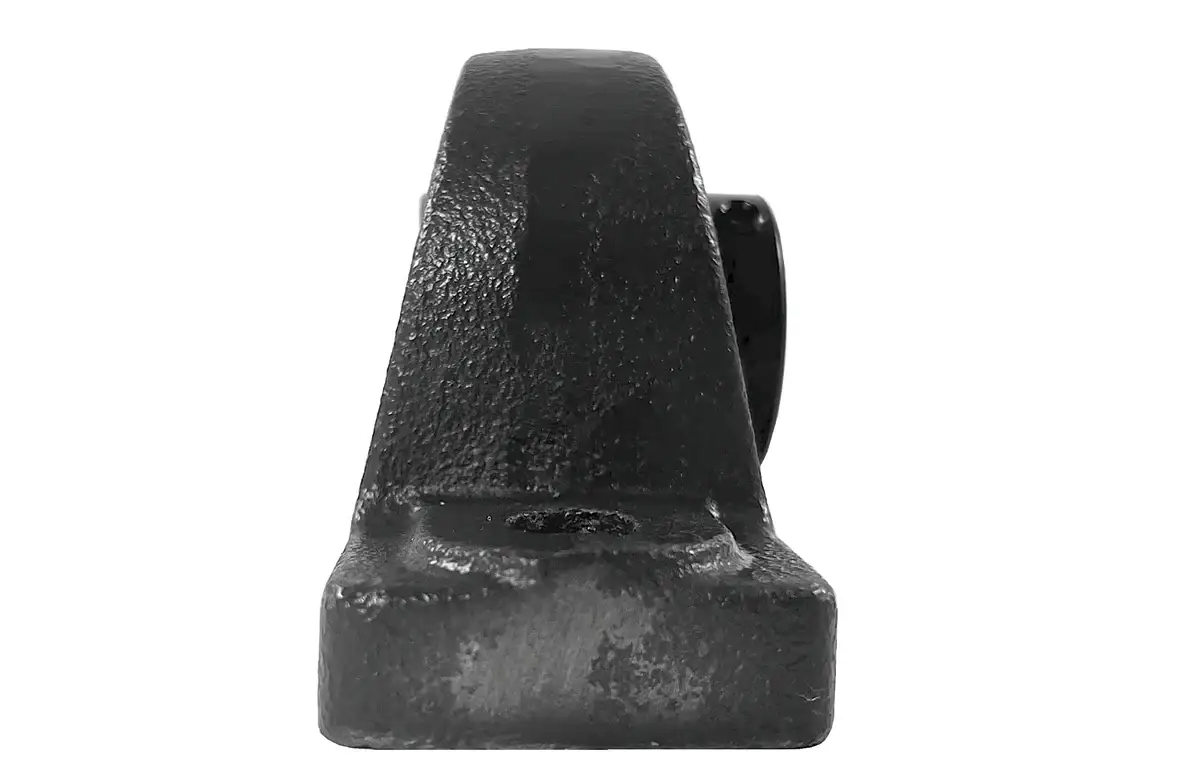

HCAK215-48 Bearing | 3" 2-Bolt Eccentric Locking Bearing

HCAK215-48 bearing is a two-bolt normal duty pillow block bearing with a 3" bore. It utilizes an eccentric locking collar for securing the beating to a 3" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK215-48 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK215-48 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK215-48 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK215-48 bearings, and we will be happy to assist you!

HCAK215-48 Bearing Dimensions

• Part #: HCAK 215-48
• Shaft Diameter (d): 3"
• Dimension (H): 3.313"
• Dimension (A): 12.00"
• Dimension (E): 9.50"
• Dimension (B): 2.94"
• Dimension (S2): 1.25"
• Dimension (S1): 0.88"
• Dimension (G): 1.25"
• Dimension (W): 6.50"
• Dimension (Bi): 3.6260"
• Dimension (N): 1.4685"
• Dimension (M): 1.4685"
• Bolt Used: 3/4
• Dynamic Load Rating (LBS): 14,974
• Static Load Rating (LBS): 10,757
• Bearing Insert: HC 215-48
• Housing Number: AK 215
• Weight (LBS): 20.2
