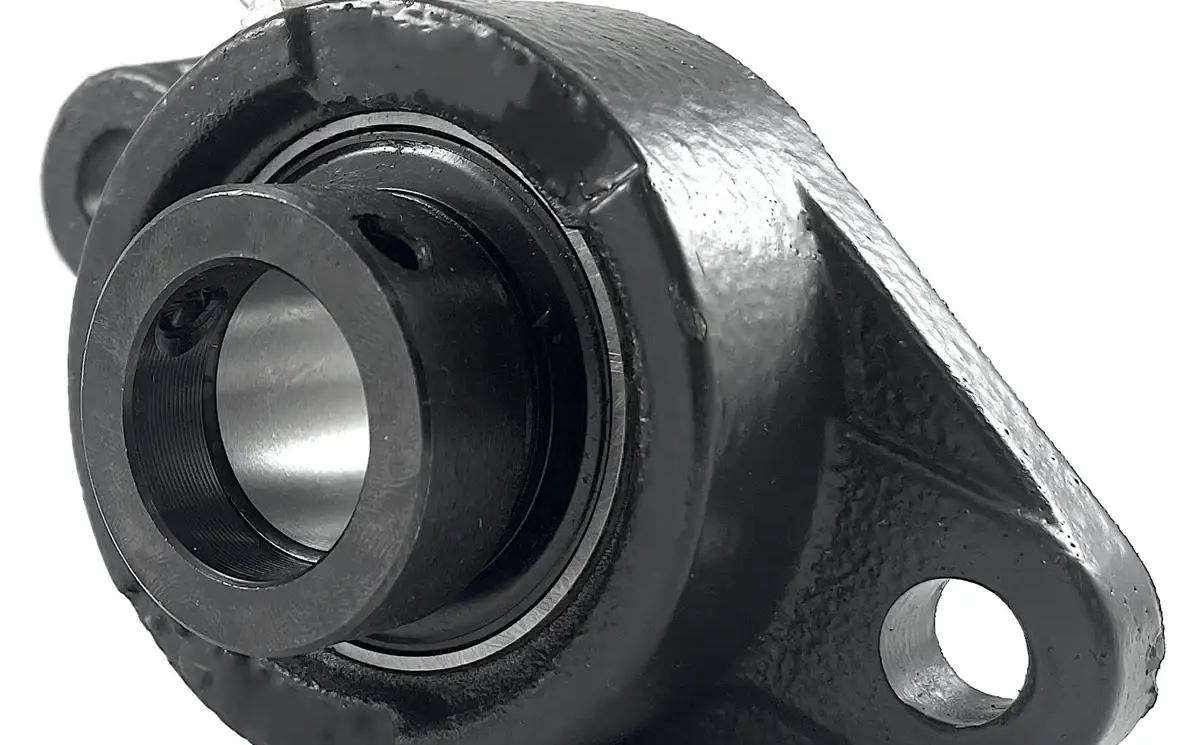

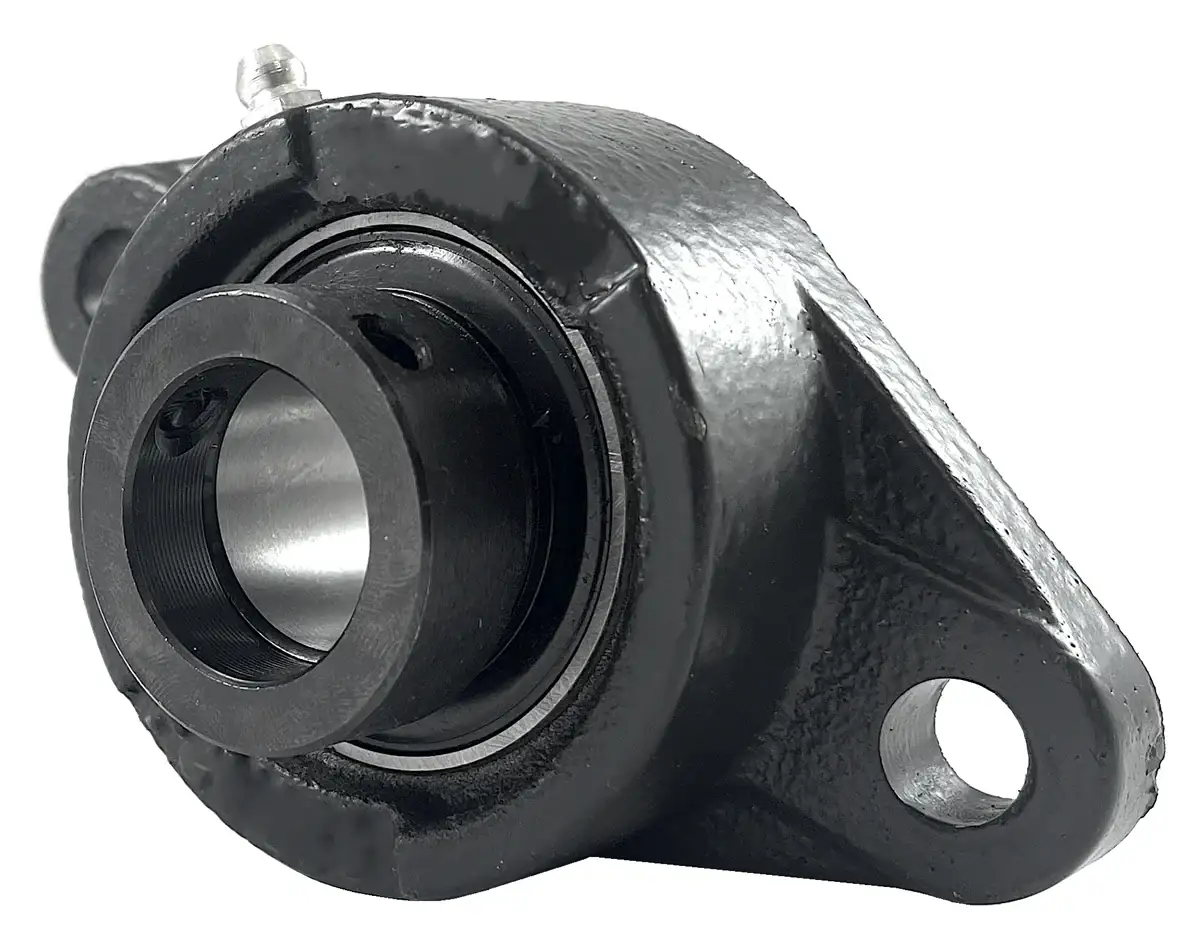

HCFJT207-23 Bearing | 1-7/16" 2-Bolt Eccentric Locking Bearing

HCFJT207-23 bearing is a 1-7/16" bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 1-7/16" shaft. HCFJT207-23 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT207-23 bearing with a 1-7/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT207-23 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT207-23 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT207-23 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT207-23 bearings, and we will be happy to assist you!

HCFJT207-23 Bearing Dimensions

• Part #: HCFJT 207-23
• Shaft Diameter (d): 35"
• Dimension (A): 6.13"
• Dimension (E): 5.125"
• Dimension (I): 0.84"
• Dimension (G): 0.59"
• Dimension (L): 1.47"
• Dimension (S): 0.51"
• Dimension (B): 3.75"
• Dimension (Z): 2.13"
• Dimension (Bi): 2.0118"
• Dimension (N): 0.7402"
• Dimension (M): 0.7402"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: HC 207-23
• Housing Number: FJT 207
• Weight (LBS): 3.3
