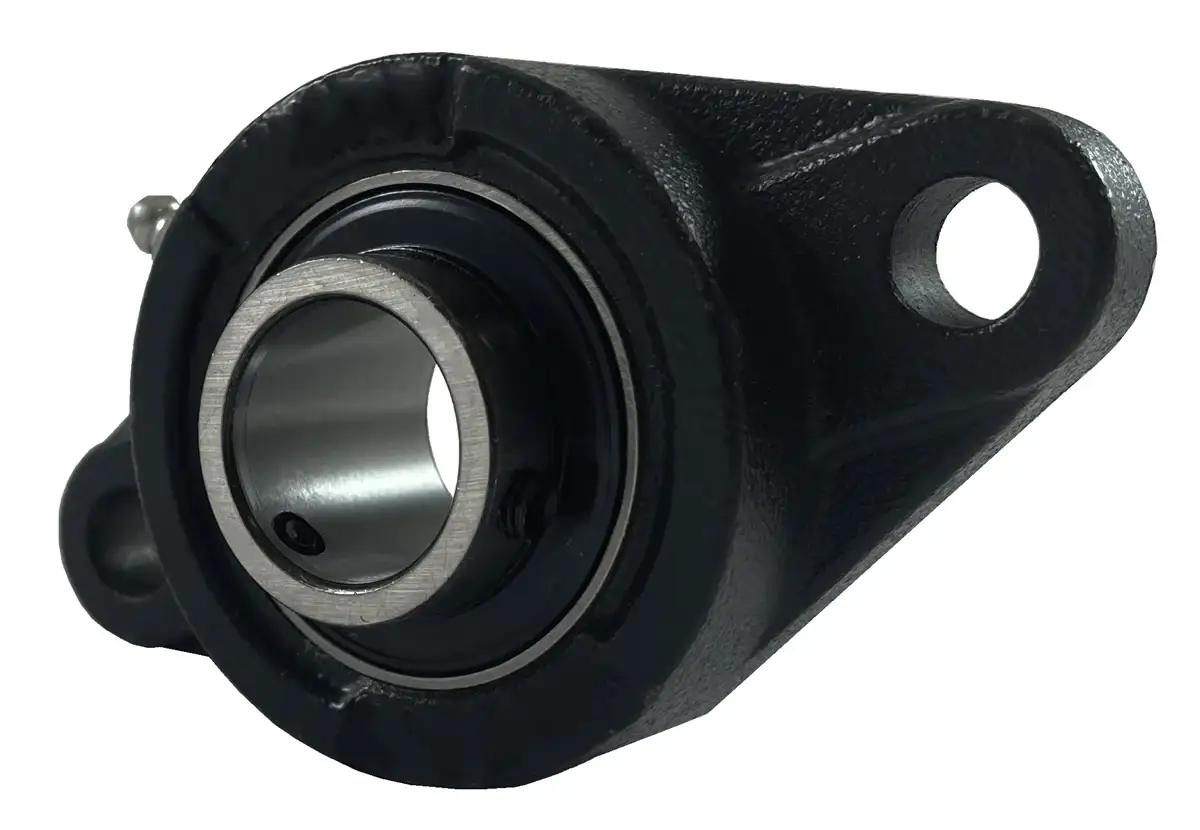

UCFT205 Bearing | 25mm 2-Bolt Flange Bearing

UCFT205 bearing is a 25mm bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 25mm shaft. UCFT205 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCFT205 bearing with a 25mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFT205 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFT205 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFT205 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFT205 bearings, and we will be happy to assist you!

UCFT205 Bearing Dimensions

• Part #: UCFT 205
• Shaft Diameter (d): 25mm
• Dimension (A): 124.0mm
• Dimension (E): 98.8mm
• Dimension (I): 15.9mm
• Dimension (G): 13.0mm
• Dimension (L): 27.0mm
• Dimension (S): 12.0mm
• Dimension (B): 70.0mm
• Dimension (Z): 35.6mm
• Dimension (Bi): 34.1mm
• Dimension (N): 14.3mm
• Dimension (M): 19.8mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 14.04
• Static Load Rating (kN): 8.05
• Bearing Insert: UC 205
• Housing Number: FT 205
• Weight (kg): 0.7
