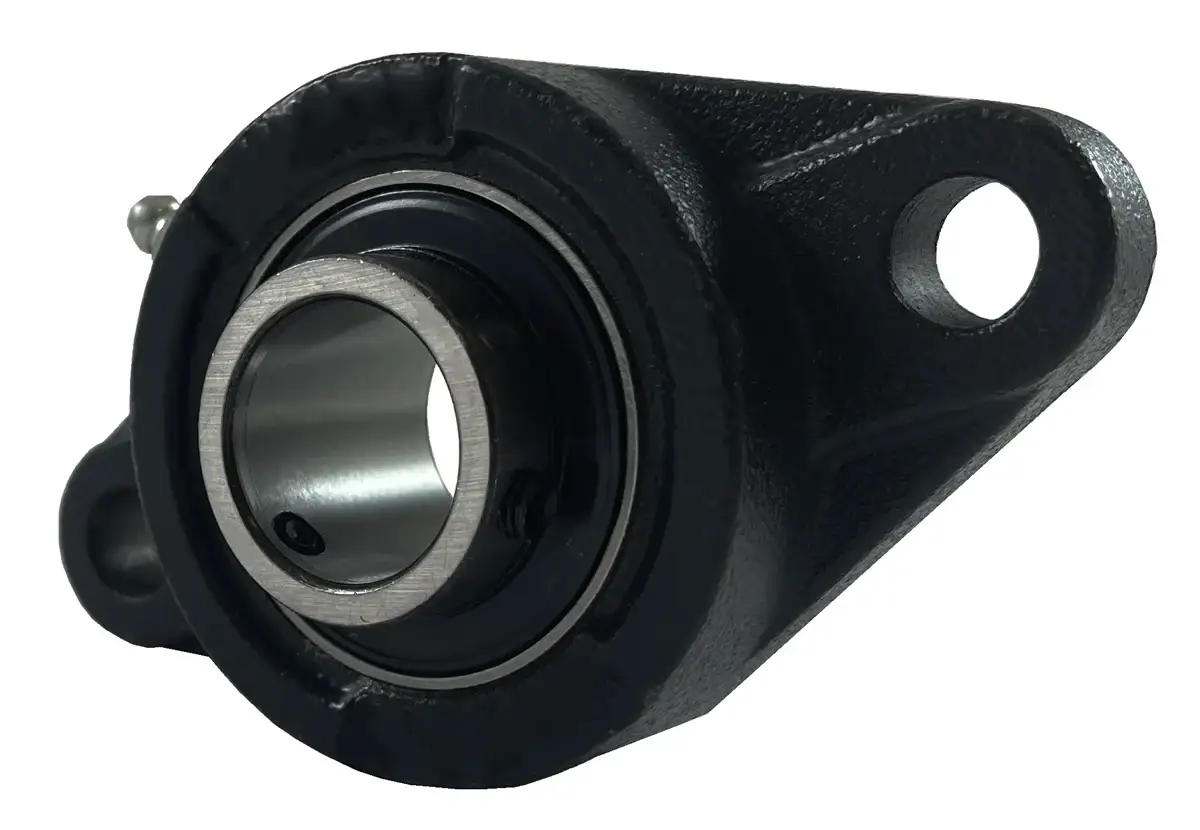

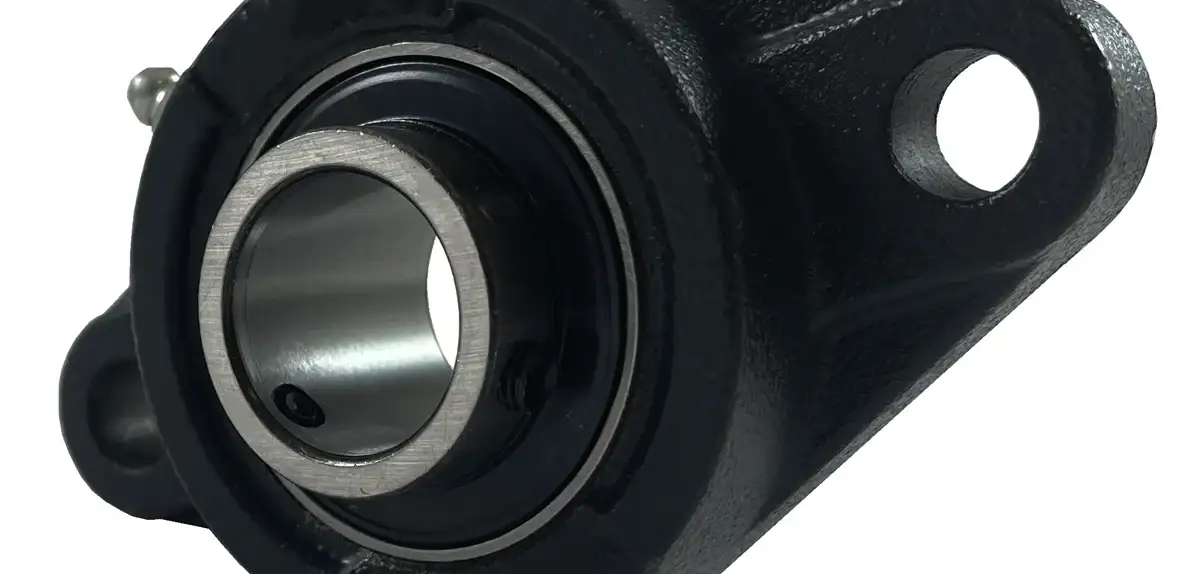

UCFT206-19 Bearing | 1-3/16" 2-Bolt Flange Bearing

UCFT206-19 bearing is a 1-3/16" bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 1-3/16" shaft. UCFT206-19 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCFT206-19 bearing with a 1-3/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFT206-19 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFT206-19 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFT206-19 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFT206-19 bearings, and we will be happy to assist you!

UCFT206-19 Bearing Dimensions

• Part #: UCFT 206-19
• Shaft Diameter (d): 1-3/16"
• Dimension (A): 5.56"
• Dimension (E): 4.594"
• Dimension (I): 0.70"
• Dimension (G): 0.50"
• Dimension (L): 1.18"
• Dimension (S): 0.47"
• Dimension (B): 3.25"
• Dimension (Z): 1.58"
• Dimension (Bi): 1.5000"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: UC 206-19
• Housing Number: FT 206
• Weight (LBS): 2.0
