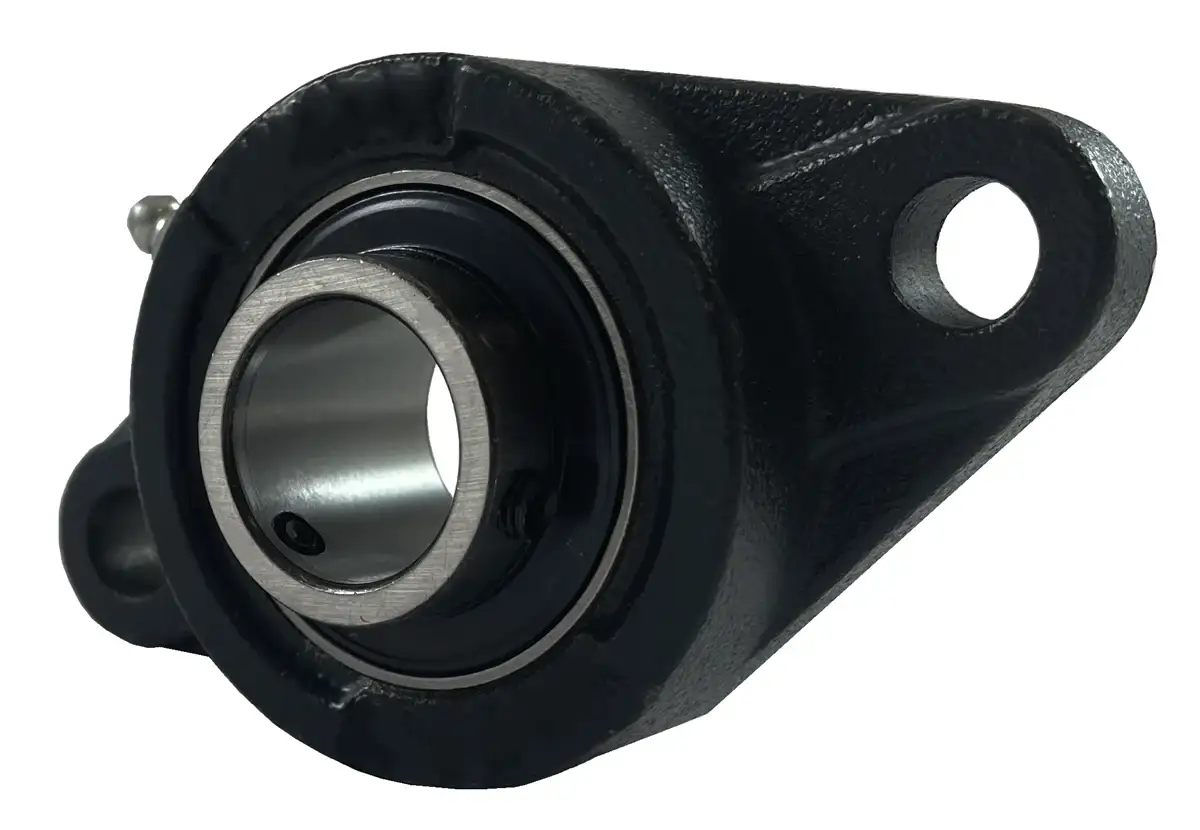

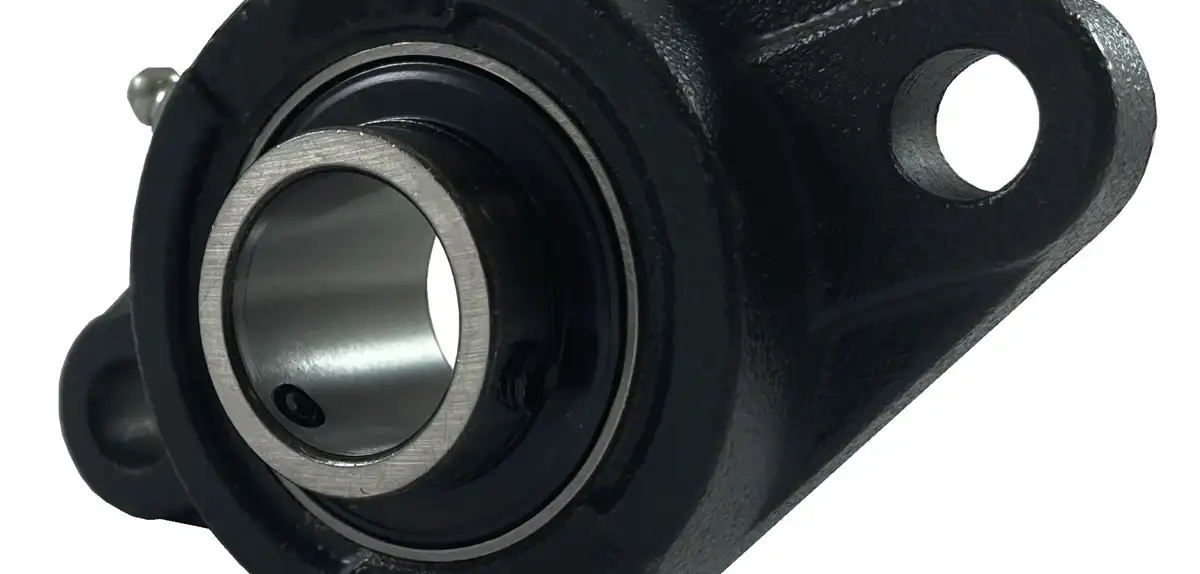

UCFT208-24 Bearing | 1-1/2" 2-Bolt Flange Bearing

UCFT208-24 bearing is a 1-1/2" bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 1-1/2" shaft. UCFT208-24 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCFT208-24 bearing with a 1-1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFT208-24 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFT208-24 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFT208-24 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFT208-24 bearings, and we will be happy to assist you!

UCFT208-24 Bearing Dimensions

• Part #: UCFT 208-24
• Shaft Diameter (d): 1-1/2"
• Dimension (A): 6.75"
• Dimension (E): 5.656"
• Dimension (I): 0.83"
• Dimension (G): 0.56"
• Dimension (L): 1.50"
• Dimension (S): 0.51"
• Dimension (B): 4.13"
• Dimension (Z): 2.02"
• Dimension (Bi): 1.9370"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Bearing Insert: UC 208-24
• Housing Number: FT 208
• Weight (LBS): 3.3
