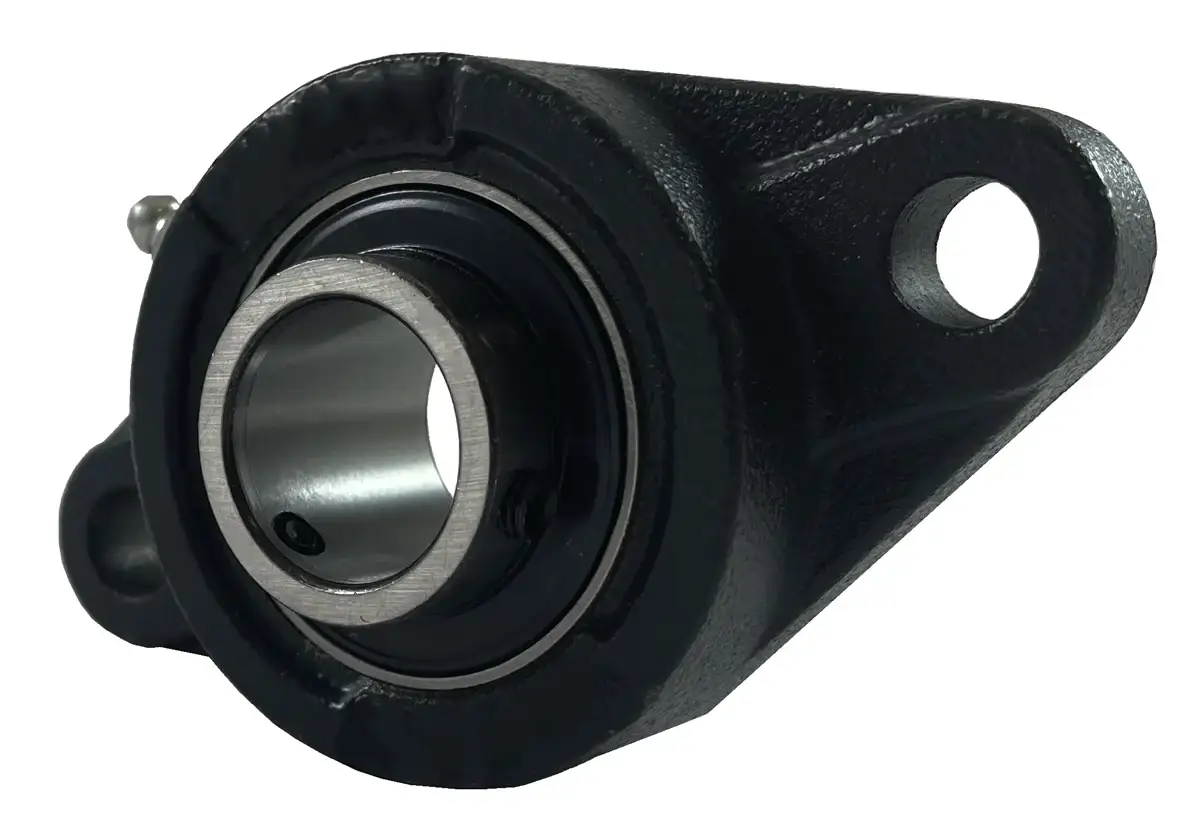

UCFT211-35 Bearing | 2-3/16" 2-Bolt Flange Bearing

UCFT211-35 bearing is a 2-3/16" bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 2-3/16" shaft. UCFT211-35 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCFT211-35 bearing with a 2-3/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFT211-35 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFT211-35 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFT211-35 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFT211-35 bearings, and we will be happy to assist you!

UCFT211-35 Bearing Dimensions

• Part #: UCFT 211-35
• Shaft Diameter (d): 2-3/16"
• Dimension (A): 8.50"
• Dimension (E): 7.250"
• Dimension (I): 1.00"
• Dimension (G): 0.83"
• Dimension (L): 1.75"
• Dimension (S): 0.64"
• Dimension (B): 5.25"
• Dimension (Z): 2.30"
• Dimension (Bi): 2.1890"
• Dimension (N): 0.8740"
• Dimension (M): 1.3150"
• Bolt Used: 9/16
• Dynamic Load Rating (LBS): 9,743
• Static Load Rating (LBS): 6,608
• Bearing Insert: UC 211-35
• Housing Number: FT 211
• Weight (LBS): 6.2
