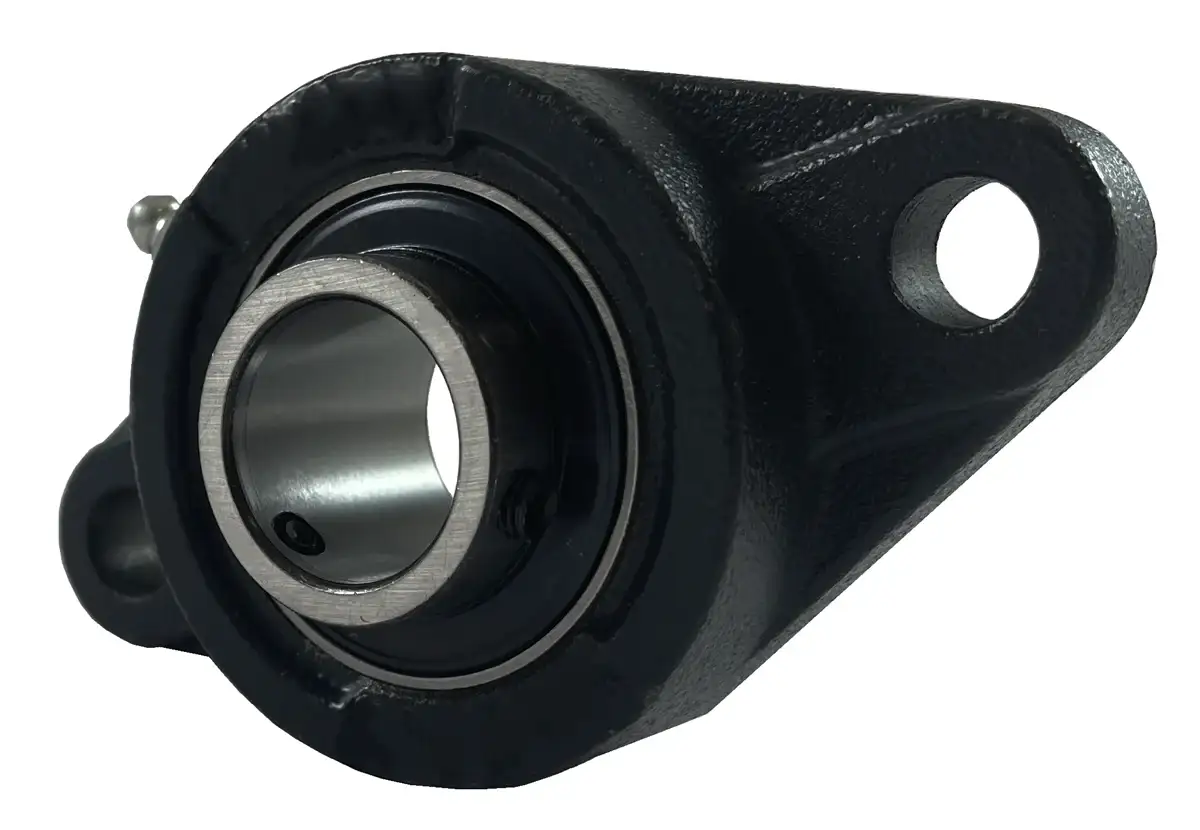

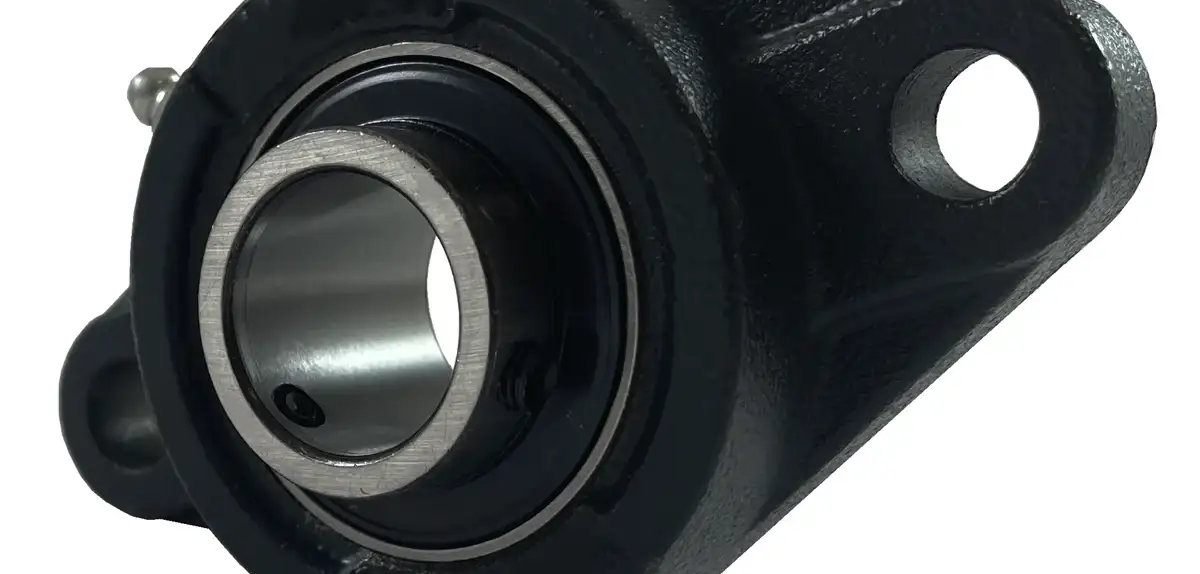

UCFT212-39 Bearing | 2-7/16" 2-Bolt Flange Bearing

UCFT212-39 bearing is a 2-7/16" bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 2-7/16" shaft. UCFT212-39 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCFT212-39 bearing with a 2-7/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFT212-39 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFT212-39 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFT212-39 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFT212-39 bearings, and we will be happy to assist you!

UCFT212-39 Bearing Dimensions

• Part #: UCFT 212-39
• Shaft Diameter (d): 2-7/16"
• Dimension (A): 9.84"
• Dimension (E): 7.938"
• Dimension (I): 1.13"
• Dimension (G): 0.71"
• Dimension (L): 1.88"
• Dimension (S): 0.91"
• Dimension (B): 5.50"
• Dimension (Z): 2.70"
• Dimension (Bi): 2.5630"
• Dimension (N): 1.0000"
• Dimension (M): 1.5630"
• Bolt Used: 3/4
• Dynamic Load Rating (LBS): 10,720
• Static Load Rating (LBS): 7,516
• Bearing Insert: UC 212-39
• Housing Number: FT 212
• Weight (LBS): 9.5
