UCFX05-15 Bearing | 15/16" 4-Bolt Flange Bearing

UCFX05-15 bearing is a 15/16" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 15/16" shaft. UCFX05-15 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCFX05-15 bearing with a 15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFX05-15 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFX05-15 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFX05-15 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFX05-15 bearings, and we will be happy to assist you!

UCFX05-15 Bearing Dimensions

• Part #: UCFX 05-15
• Shaft Diameter (d): 15/16"
• Dimension (A): 4.25"
• Dimension (E): 3.250"
• Dimension (I): 0.71"
• Dimension (G): 0.56"
• Dimension (L): 1.22"
• Dimension (S): 0.47"
• Dimension (Z): 1.56"
• Dimension (Bi): 1.5000"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569

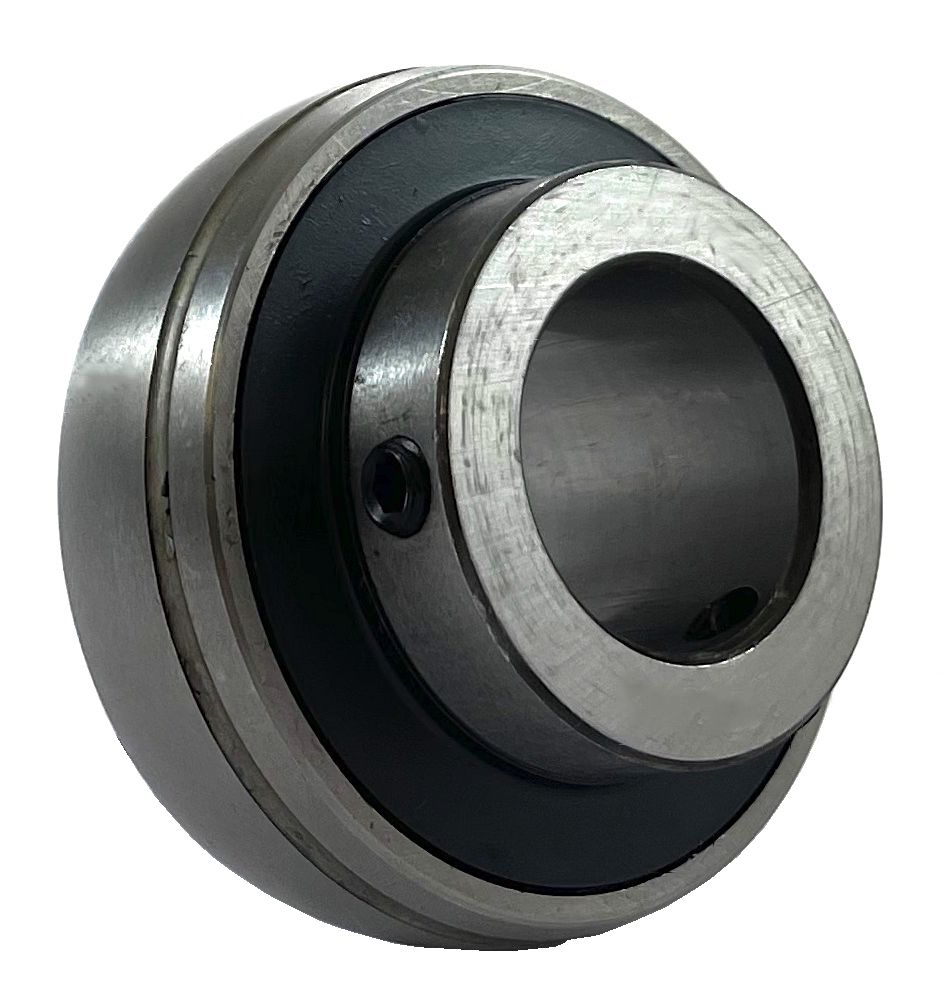

• Bearing Insert: UCX 05-15
• Housing Number: F 206
• Weight (LBS): 3.1
